Location of controls
Refer to the pages listed for details.
1 SEEK/AMS (seek/Automatic Music
Sensor/manual search) control
8, 10, 15, 21
2 MODE (*)button
During tape playback:
Playback direction change 8
During radio reception:
BAND select 9, 10
During CD or MD playback:
CD/MD unit select 20
3 SOURCE (TAPE/TUNER/CD/MD) button
8, 9, 10 13, 20
4 Dial (volume/bass/treble/left-right/rear-
front control) 7, 18
5 SOUND button 18
6 Display window
7 DSPL (display mode change) button
8, 11, 20
8 6 (eject) button 8
9 PTY button
RDS Programme 15
!º PRESET/DISC button (XR-C33R)
During radio reception:
Preset stations select 10
During CD/MD playback:
Disc change 21
PRST button (XR-3100R)
During radio reception:
Preset stations select 10
!¡ AF/TA button 12, 13, 14
!™ RELEASE (front panel release) button
6, 23
!£ Reset button (located on the front side
of the unit behind the front panel) 6
!¢ OFF button 6, 8
!∞ SHIFT button
PLAY MODE 9, 10, 11, 12, 14, 21, 22
SET UP 7, 16, 19, 20
!§ POWER SELECT switch
(located on the bottom of the unit)
See “POWER SELECT switch” in the
Installation/Connections manual.
!¶ Number buttons 10, 13, 14
!• D-BASS control 19

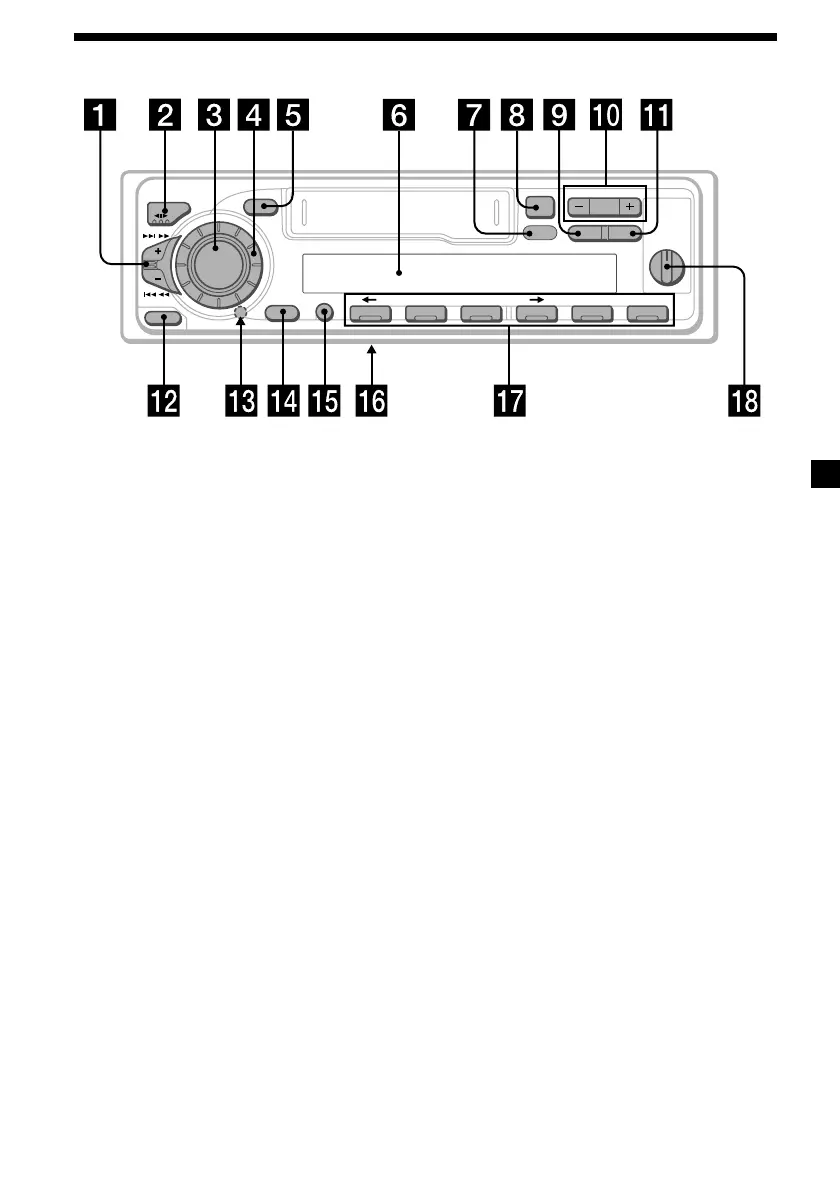

The illustration of the front panel in the manual is
of XR-C33R.
