– 46 –

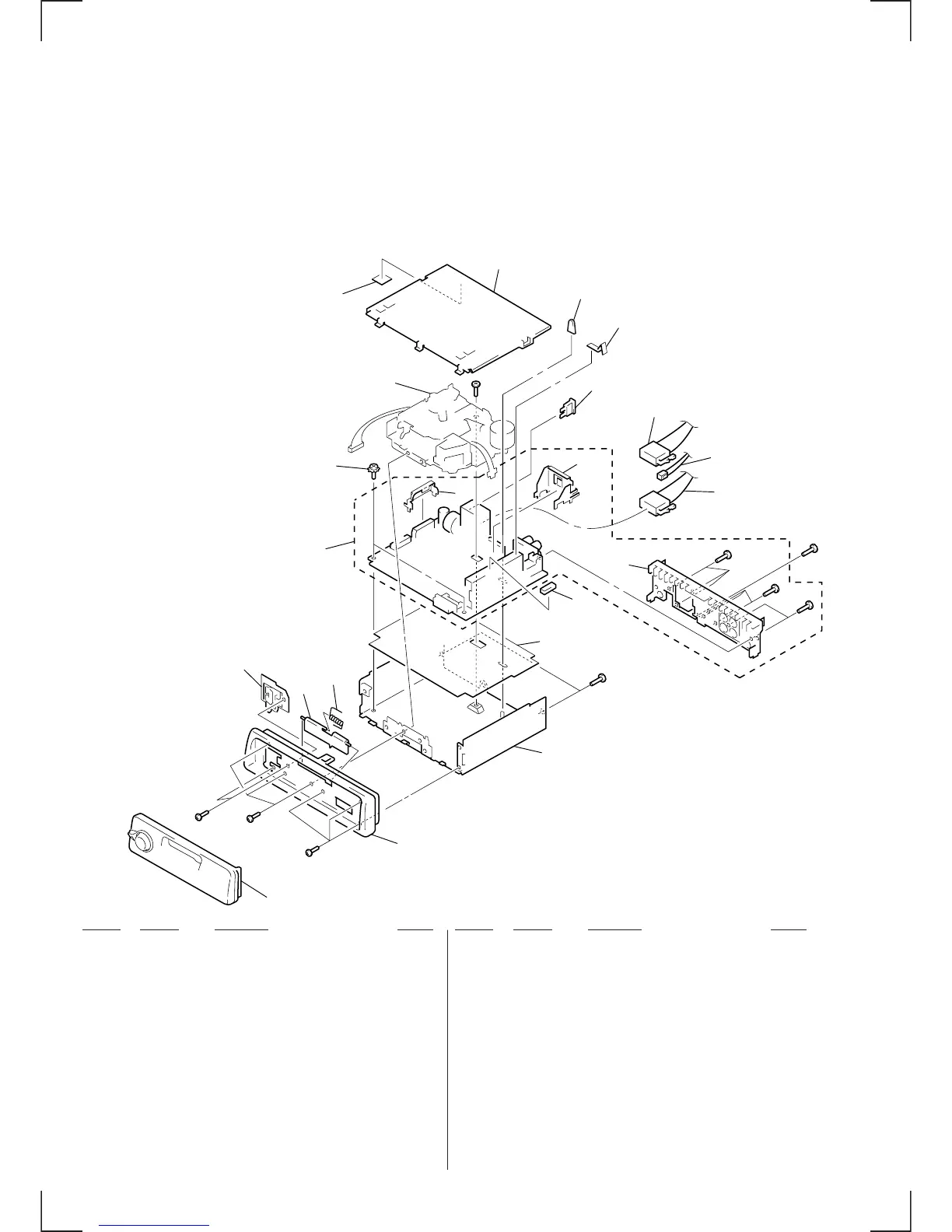

(1) CHASSIS SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-030-828-01 PANEL, SUB
2 X-3367-636-1 LOCK ASSY
3 3-027-437-41 DOOR, CASSETTE
4 3-935-003-01 SPRING, TORSION
* 5 A-3317-345-A MAIN BOARD, COMPLETE
(C5120R: AEP, UK, South European)
* 5 A-3317-346-A MAIN BOARD, COMPLETE (C5120R: German)
* 5 A-3317-351-A MAIN BOARD, COMPLETE
(C5110R: AEP, UK, South European)
* 5 A-3317-352-A MAIN BOARD, COMPLETE (C5110R: German)
* 6 3-031-828-01 BRACKET (REG. IC)
* 7 3-019-147-01 BRACKET (IC) (M)
* 8 3-031-050-01 HEAT SINK
9 3-915-923-01 SCREW, GROUND POINT
* 10 X-3373-269-1 COVER ASSY (ISO)
11 3-012-859-01 CAP (25), RUBBER
12 3-937-650-01 PLATE (C), GROUND
13 1-782-093-11 CORD (WITH CONNECTOR) (ISO-S)
(SPEAKER)
14 1-777-989-21 CORD (WITH CONNECTOR) (AMP REM)
(C5110R)
14 1-777-989-41 CORD (WITH CONNECTOR) (AMP REM, ATT)
(C5120R)
15 1-782-092-11 CORD (WITH CONNECTOR) (ISO-P) (POWER)
16 3-935-014-01 CUSHION (U)
* 17 3-009-306-01 SHEET, INSULATING
* 18 3-009-813-41 CHASSIS
F801 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
#2
#2
#2
#2
F801
#2
#3
#4
MG-25Y-136
Front panel section
1
2
3
4
5
9
10
11
12
13
14
15
16
17
18
6
7
8
#1
#2
not supplied
To Next Page
