Front panel functions

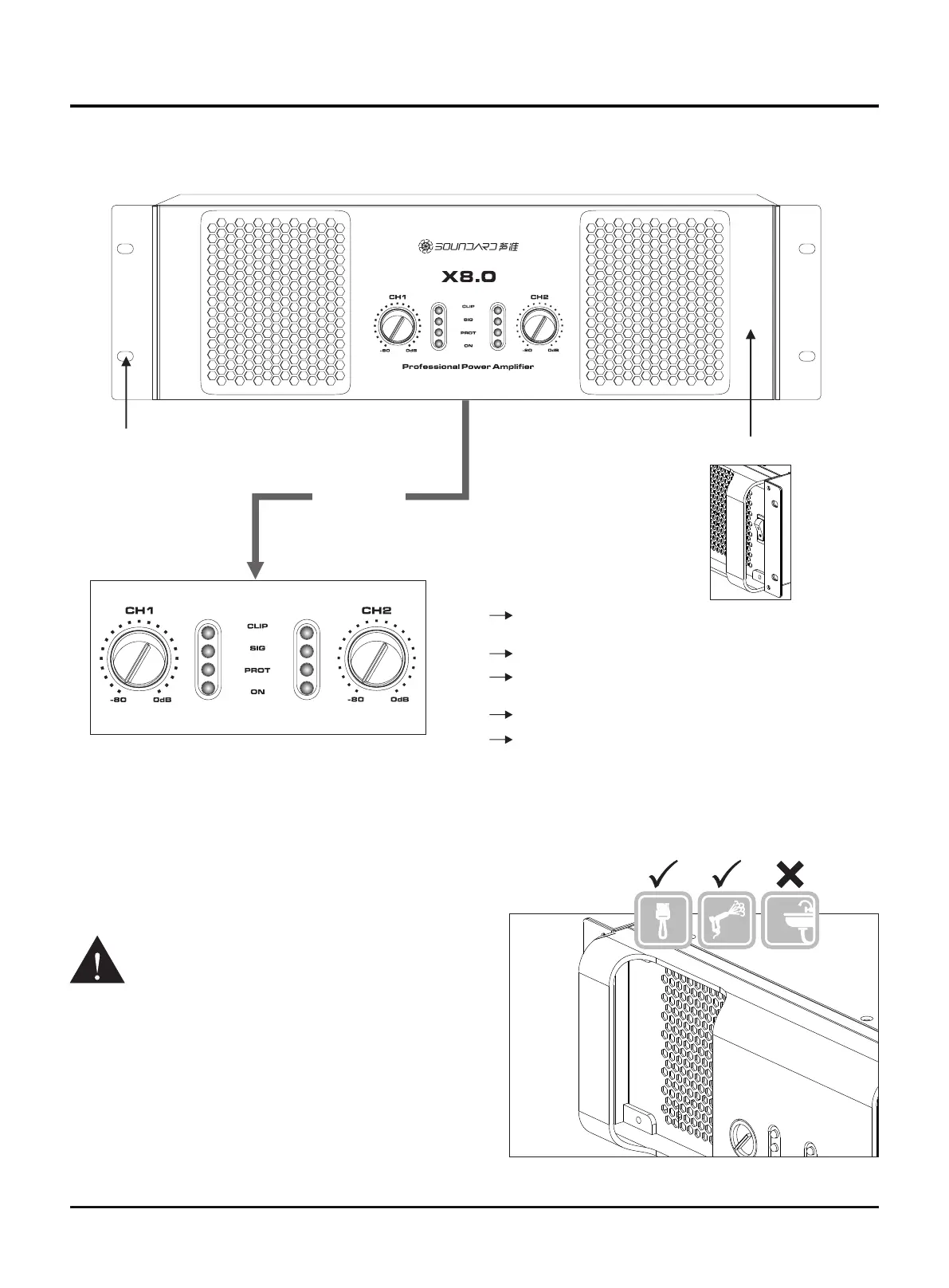

Front Panel
Mounting hole
Control panel
Cleaning guide of the dust filter
The first time cleaning of the strainer mesh
should be right after installation.
Recommend to clean the strainer mesh
quarterly.
Please do not run the product without the
dust filter, or it makes the service
life of the product shorten.
Such condition will be considered as
no warranty.
Power switch
X Series Power Amplifier
Gain Controller Knob
300°volume knob from 0 to -80dB.
Illuminates when either protection
circuit action.
Illuminates when the amplifier start.
Illuminates when compressor / limiter is
protecting the amplifier from input overload.
The signal light
CH1-CH2
PROT
ON
CLIP
SIG
