5HSODFHWKHFKDLQVSURFNHW
DIWHUXVLQJWZR2LORPDWLFFKDLQV
or sooner if the wear marks on the
sprocket are deeper than approx.
0.5 mm (
1
/
64
") since this would reduce
the life of the chain.
Check wear marks:
You can use gauge * 0000 893 4101
to check the depth of the wear marks.
* Special accessory
It is best to use two chains in rotation
with one sprocket.
%HIRUHUHPRYLQJWKHFKDLQVSURFNHW
Remove chain sprocket cover, chain
and guide bar.
Disengage the chain brake:
Pull hand guard toward front handle.

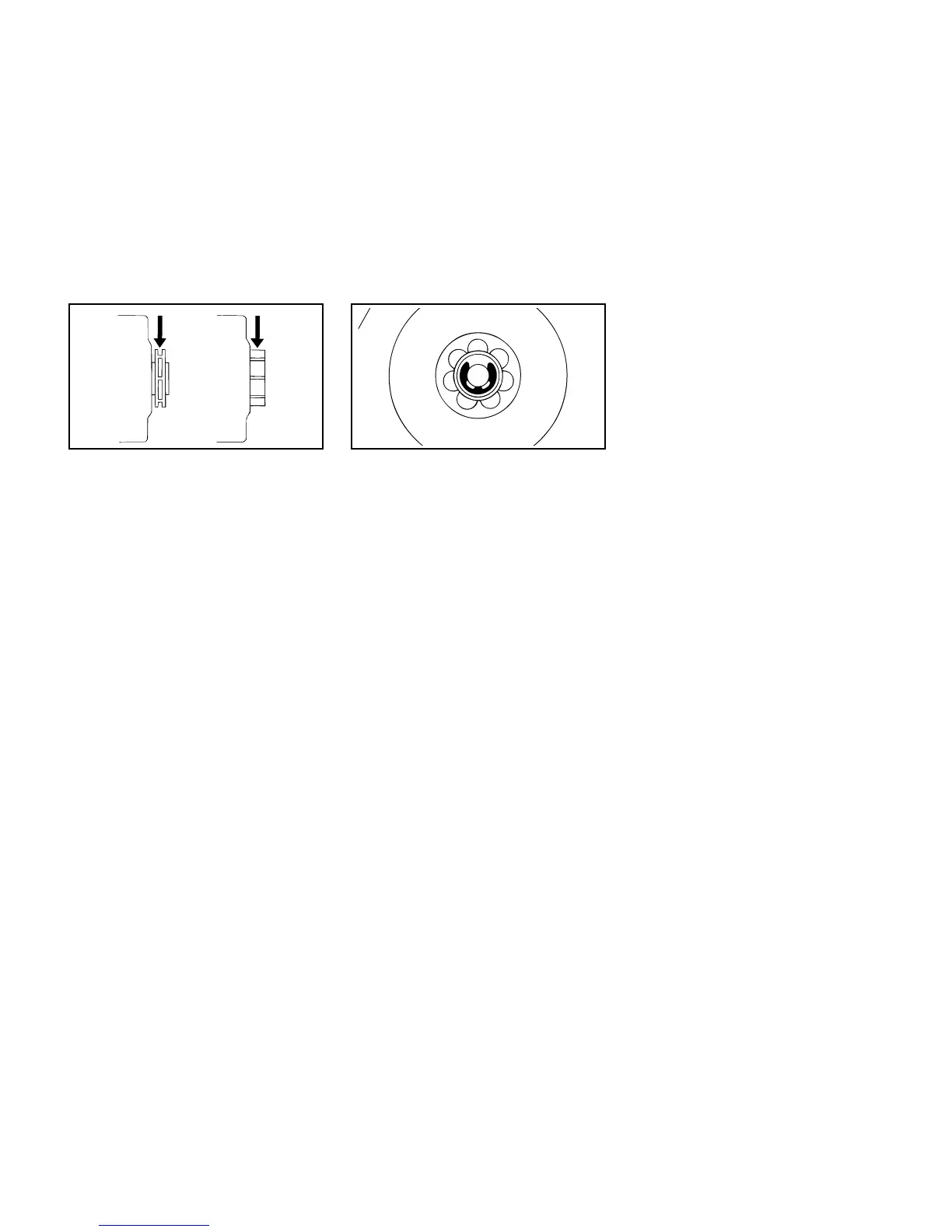

5LPVSURFNHW
•
Use a screwdriver to remove
the E-clip.
•
Take off the washer and rim
sprocket.
•
Examine splines on clutch drum -
if wear marks are severe, fit a new
clutch drum:
•
Contact your STIHL dealer for
assistance.
•
Pull clutch drum and needle cage
off the crankshaft - clean the
crankshaft stub and needle cage,
and lubricate with STIHL grease
(tube 0781 120 1111).
Reassemble with new rim sprocket
and, if necessary, new clutch drum.
•
Fit rim sprocket with cavities facing
outward.
•
Refit the washer and E-clip on the
crankshaft.
Use only original STIHL clutch drums
to ensure correct operation of the chain
brake.
6WRULQJWKH0DFKLQH
For periods of about 3 months or longer:
•
Drain and clean the fuel tank in a
well ventilated area.
•
Run engine until carburetor is dry -
this helps prevent the carburetor
diaphragms sticking together.
•
Remove the saw chain and guide
bar, clean them and protect
with corrosion inhibiting oil.
•
Thoroughly clean the machine -
pay special attention to the
cylinder fins and air filter.
•
If you use a biological chain and
bar lubricant, e.g. STIHL Bioplus,
completely fill the chain oil tank.
•
Store the machine in a dry and high
or locked location - out of the
reach of children and other
unauthorized persons.
&KHFNLQJDQG5HSODFLQJ
&KDLQ6SURFNHW
 46
