BG 55, BG 65, BG 85, SH 55, SH 85
: From inside the catcher bag* (2),
push the elbow* (1) through the
intake opening (see arrow) and pull
it outwards until it is firmly seated.
: Attach the carrying strap*.
* see “Guide to Using this Manual”
: Push elbow (1) into the catcher
bag (2) as far as mark (see arrow)
and secure it with the Velcro
strip* (3).
* see “Guide to Using this Manual”
: Loosen the screw (4).
: Push elbow (1) with lug (5) into
fan housing stub (6) and rotate in
direction of arrow to lock in position.
: Tighten down the screw (4).

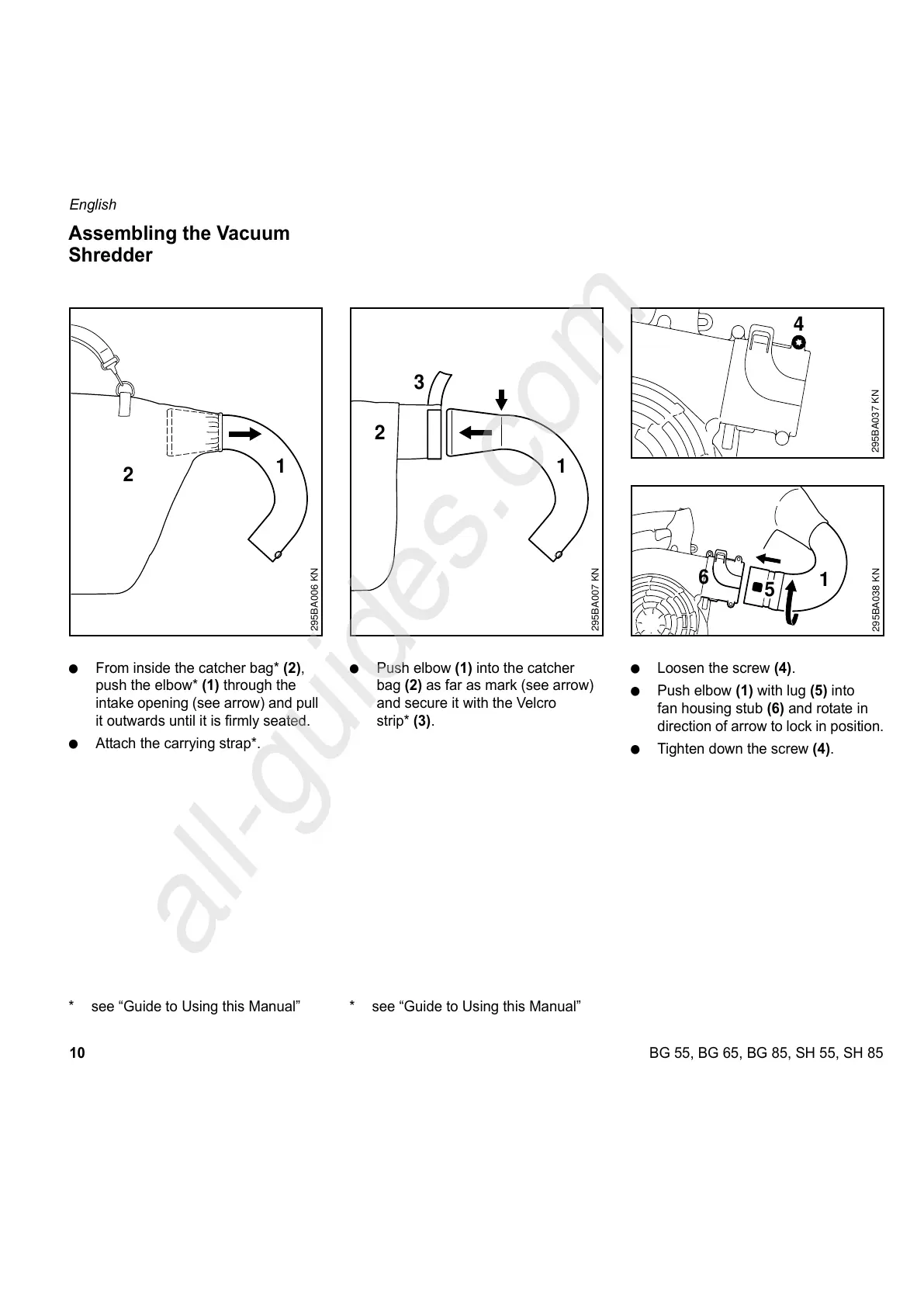

Assembling the Vacuum
Shredder
1
2
295BA006 KN
3
1
2
295BA007 KN
4
295BA037 KN
5
295BA038 KN
1
6
