13BR 340, BR 340 L, BR 420, BR 420 C
English / USA
Mounting Blower Tube with
Curved Nozzle*
Operate the machine only with both
blower tubes properly mounted.

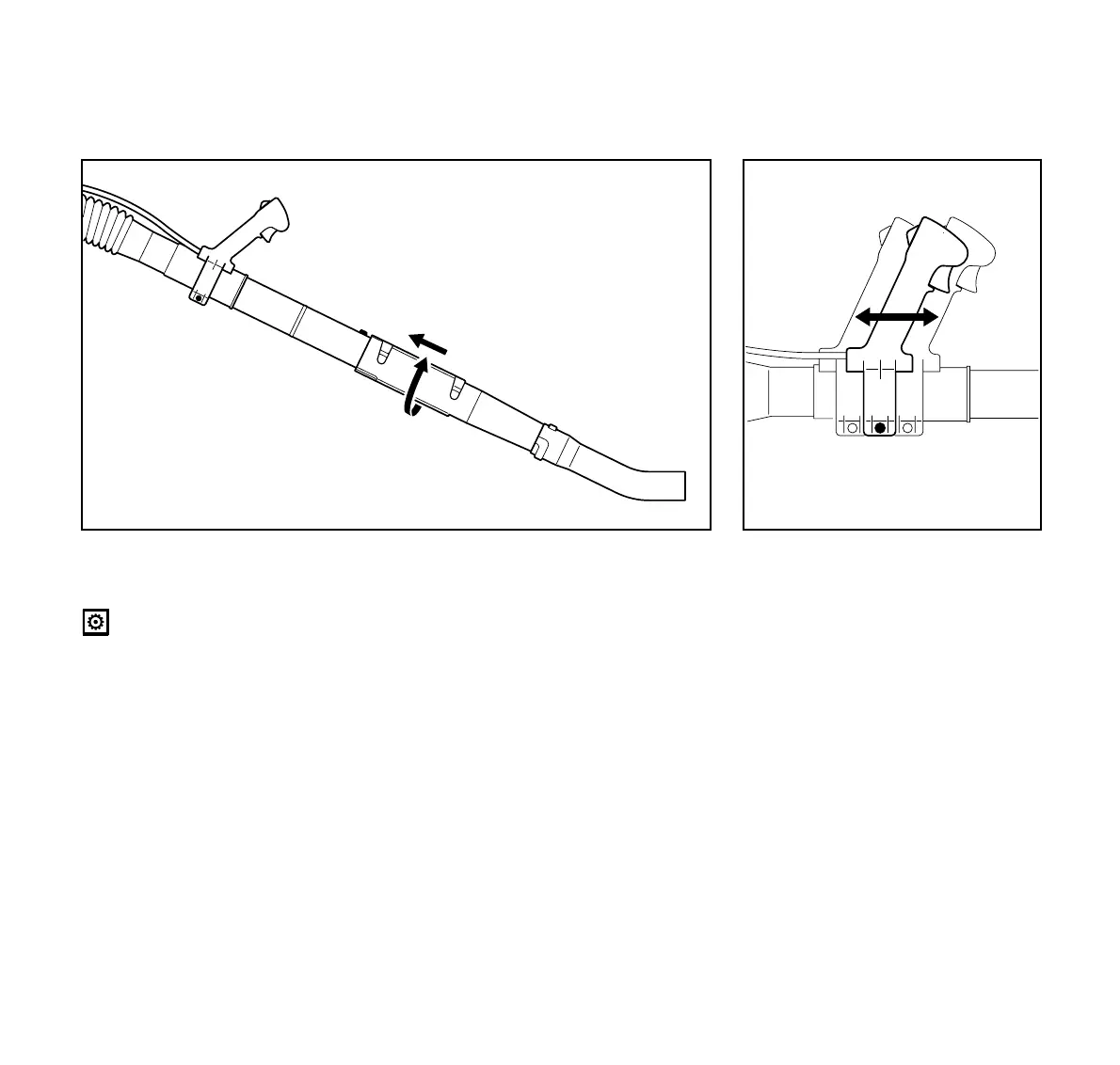

: Push the blower tube (6) into the
pleated hose (7).
: Push blower tube (12) onto blower
tube (6) to position ’a’ (long) or ’b’
(short), as far as lug (9), and rotate
it in the direction of the arrow
(clockwise) to lock.
: Fit the nozzle (13) on the end of the
blower tube (12) and rotate it
clockwise to engage the bayonet
coupling.
* see "Guide to Using this Manual"
: Rotate the pleated hose (7)
counterclockwise as far as stop and
leave it in that position.
: Turn the control handle (10)
counterclockwise to the horizontal
position.
: Rotate the complete blower tube
assembly until the nozzle discharge
opening points in the same direction
as the control handle.
: Tighten down the clamp screw (11).
Adjusting the Control Handle
: Put the unit on your back.
: Loosen the clamp screw (11).
: Slide the control handle (10) along
the pleated hose to the most
comfortable position.
: Tighten down the clamp screw (11).
373BA039 KN
7
12
10
6
11
9
a
b
13
11
10
373BA002 KN
