25BR 340, BR 340 L, BR 420, BR 420 C
English / USA

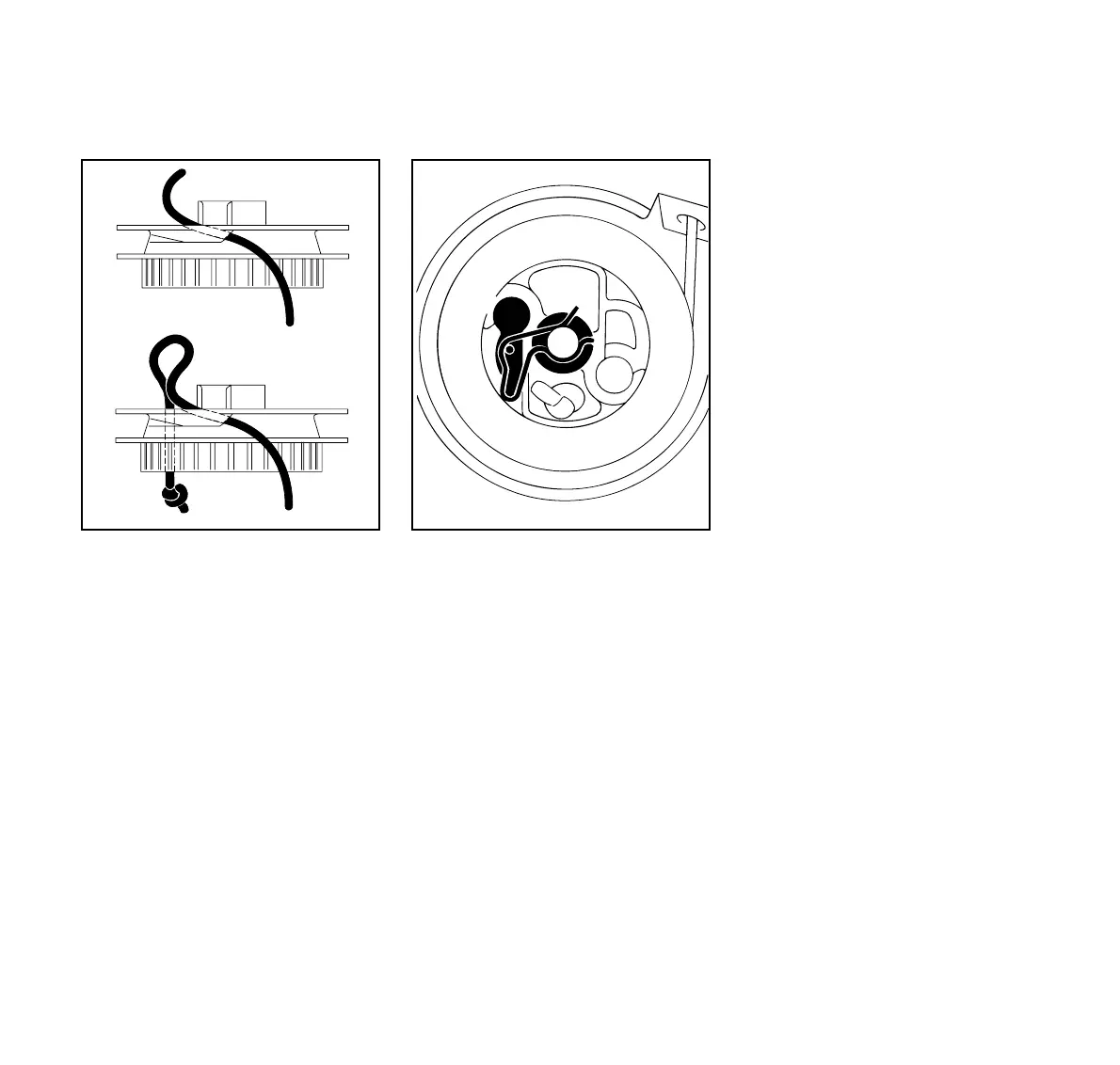

: Thread the rope through the rotor
and secure it in the rotor with a
simple overhand knot.
: Fit the pawl (5) in the rotor and slip
the washer (4) over the starter post.
: Use a screwdriver or suitable pliers
to install the spring clip (3) on starter
post and over the peg on the pawl –
the spring clip must point clockwise
– see illustration.
Go to “Tensioning rewind spring”.
Replacing a broken rewind spring
: Lubricate the new spring with a few
drops of non-resinous oil.
: Remove the rope rotor as described
in “Replacing the starter rope”.
: Remove parts of old spring.
373BA026 KN
353BA034 KN
3
5
4
