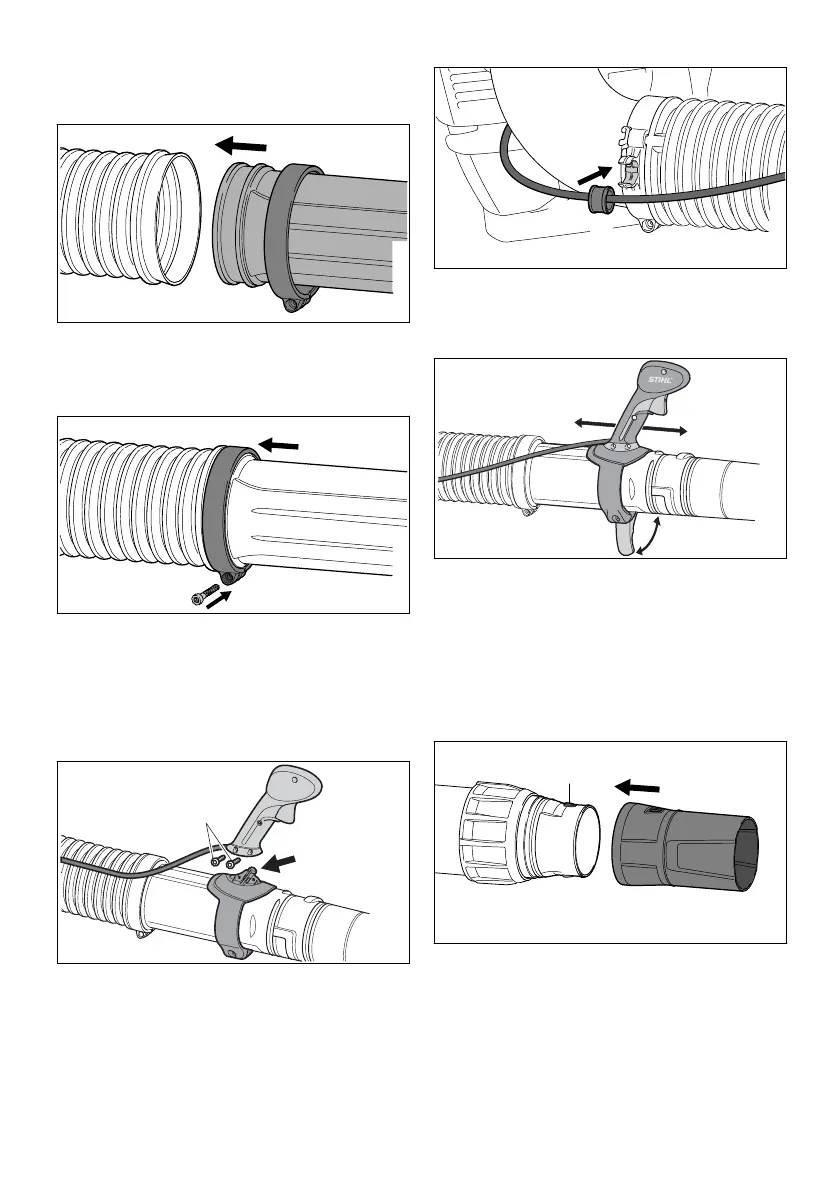

► Push the hose clamp (1) onto the pleated
hose (2) – screw boss facing down.
► Secure the hose clamp (1) with the screw (4).
0416BA003 KN
5
6
2
► Push the hose clamp (5) (without retainer for
throttle cable) onto the blower tube (6).
► Push the blower tube (6) into the pleated
hose (2).
5
6
2
0416BA004 KN
7
► Push the hose clamp (5) onto the pleated
hose (2).
► Line up the hose clamp (5) and blower
tube (6) – as shown.
► Secure the hose clamp (5) with the screw (7).
3.2 Mounting the Control Handle
1
3
2
0000-GXX-2045-A1
► Push the control handle (1) onto the
mount (2) .
► Insert and tighten down the screws (3) firmly.
4
6
5
0416BA008 KN
► Engage the throttle cable (4) with sleeve (5) in
the retainer (6).
3.3 Adjusting the Control Handle
0416BA007 A1
1
2
3
► Open the clamping lever (3).
► Move the control handle (1) along the blower
tube (2) to the most comfortable position.
► Close the clamping lever (3).
3.4 Mounting, Adjusting and
Removing the Nozzle
3.4.1 Mounting the Nozzle
3
0416BA005 KN
1
2
► Push the nozzle (1) onto the blower tube (2)
and engage it on the lugs (3).
3 Assembling the Unit English
0458-490-8321-B 7
