FC 56 C
English
26
Have a worn depth wheel replaced by a
servicing dealer. STIHL recommends
that you have servicing and repair work
carried out exclusively by an authorized
STIHL servicing dealer.

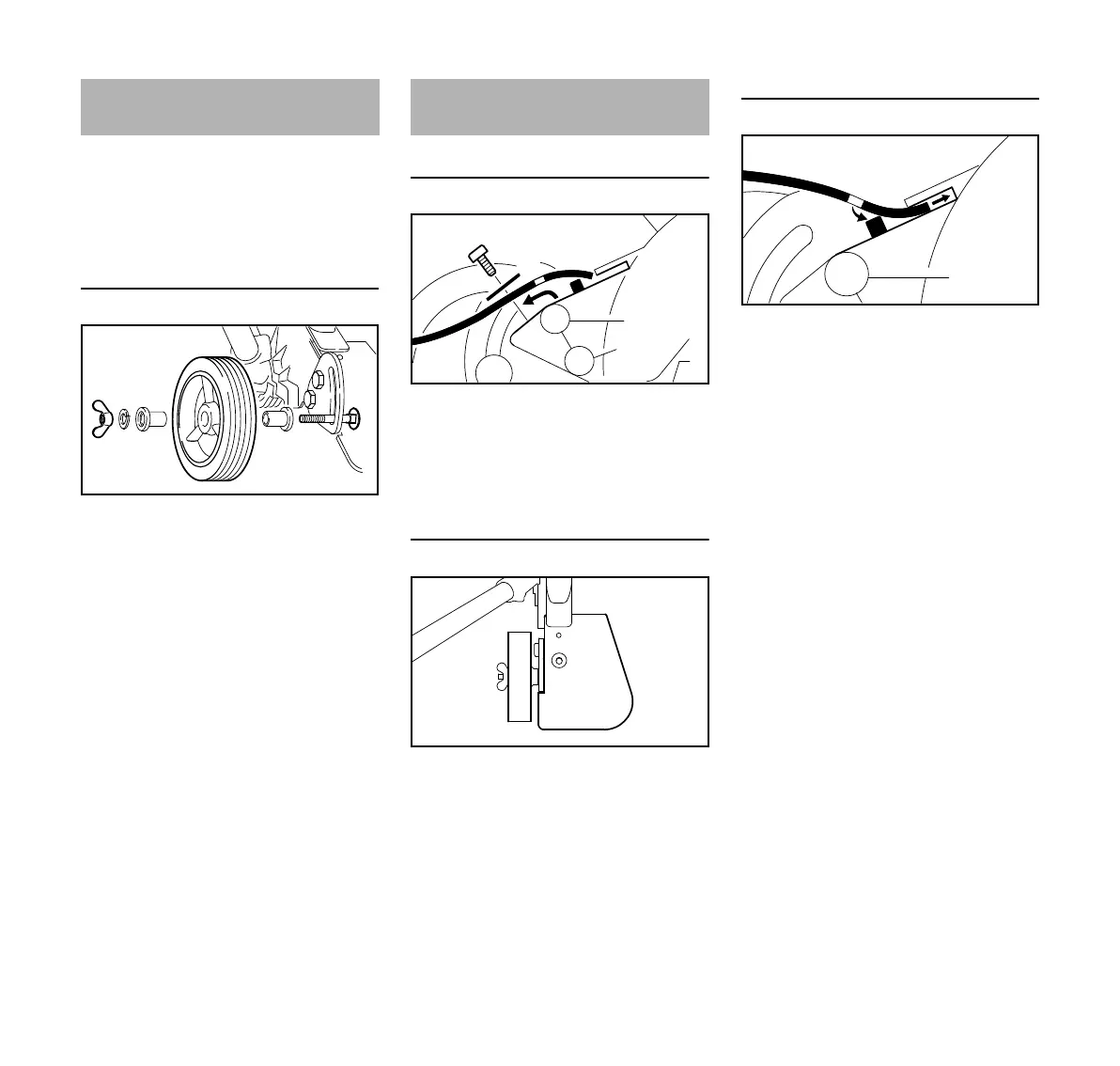

Depth wheel
N The end of the thread on the
screw (1) is caulked to ensure that
the wingnut (2) does not work loose
and be lost.
A very high torque has to be applied to
remove the wingnut from the screw. If
the parts are then reassembled, the
captive function is no longer
guaranteed. In such a case have the
screw and wingnut replaced by a
servicing dealer.
Removing the skirt
N Loosen and remove the screw (1).
N Remove the washer (2).
N Pull the skirt (3) off the lug (4) and
out of the deflector.
Position of skirt
N Position the skirt (3) correctly in
relation to the depth wheel (5): The
wheel is on the left – the skirt must
project to the right.
Fitting the skirt
N Push the skirt (3) into the slot in the
deflector until it can be engaged on
the lug (4).
N Fit the washer on the screw.
N Insert the screw and tighten it down
firmly.
Replacing the Depth Wheel
1
241BA024 KN
2
Replacing the Skirt
3
4
241BA009 KN
1
2
5
241BA015 KN
3
241BA017 KN
3
4
