25FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R

English / USA

: Press down the trigger interlock (1)

and squeeze the throttle trigger (2)

(full throttle) – this sets the throttle

cable correctly.

: For position of carrying eye

see

"Parts and Controls"

: Place the clamp (1) with the

tapped hole on the left-hand side

of the drive tube.

: Squeeze the two ends of the clamp

together and hold in that position.

: Insert M 6 x 14 screw (2).

: Line up the carrying eye.

: Tighten down the screw firmly.

1) Included as standard or available as

special accessory

Mounting the deflector

1 = Deflector approved for all cutting

tools

2 = Deflector approved for use with

mowing heads only

: Place the deflector on the

gearhead.

: Fit the plate (3) and line it up.

: Insert M 5 x 18 screws and tighten

down firmly.

STOP

249BA017 KN

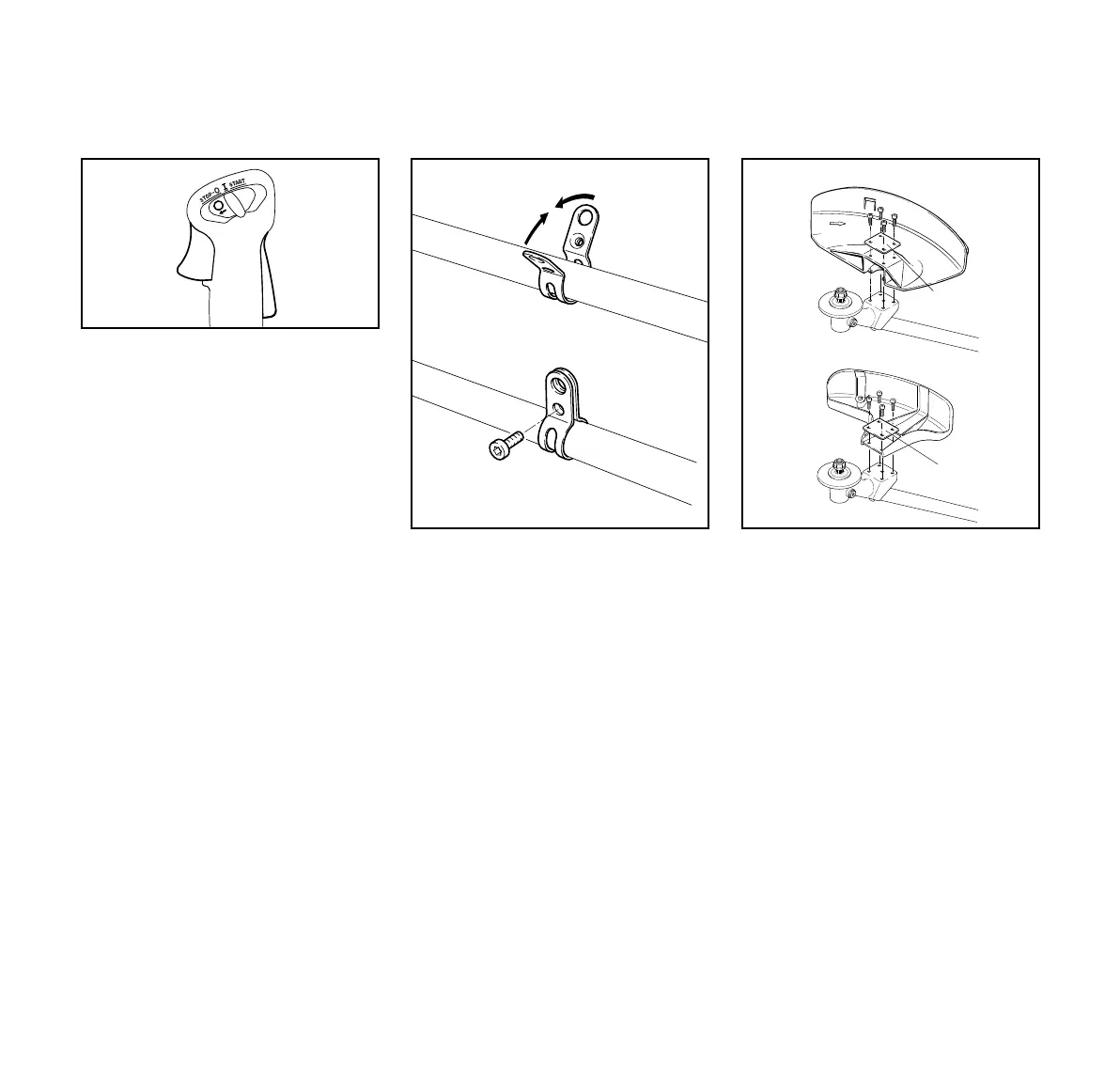

Fitting the Carrying Eye

002BA142 KN

Mounting the Deflector

002BA102 KN
