Stihl FS 120 User Manual

26
English / USA
FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R

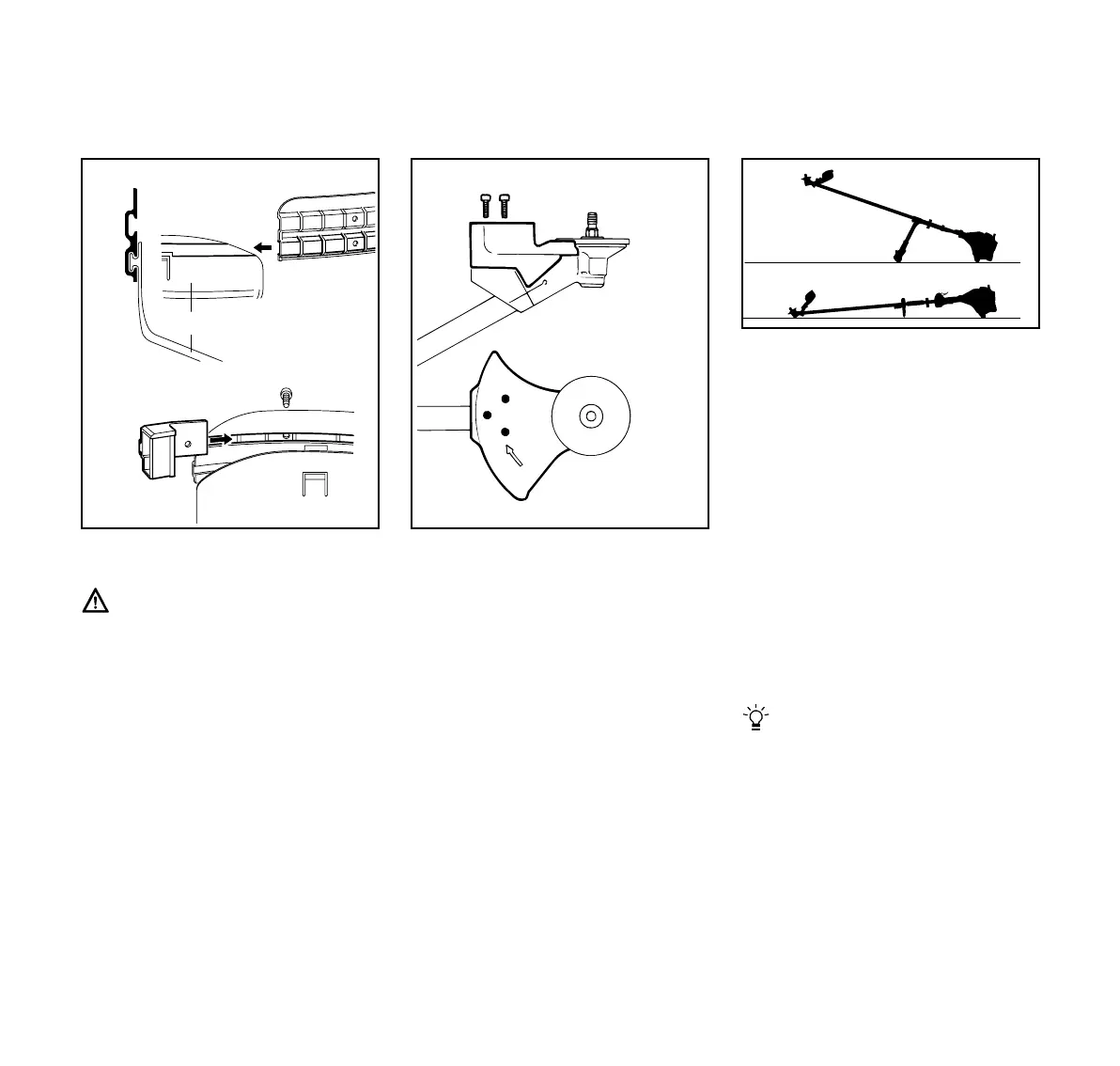

Fitting skirt and blade
These parts must be fitted to the
deflector (1) when you use a
mowing head:
: Slide the lower guide slot of the
skirt (4) onto the deflector (1) – it
must snap into position.
: Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
: Fit the screw and tighten it down
firmly.
Mounting the stop
: Always fit stop (6) when you use a
circular saw blade.
: Place the stop on the gearhead
flange.
: Fit the three M 5 x 18 screws (7) and
tighten down securely.
Preparations
: Lay your brushcutter on its back
with the gearhead facing upward.
Mounting Hardware
for Cutting Tools
The mounting hardware supplied
depends on the cutting tool that comes
as original equipment with the new
brushcutter.
Mounting hardware is not packed
with the machine
Only mowing heads may be
mounted.
4
1
5
4
002BA103 KN
7 7
7
6
002BA028 KN
Mounting the Cutting Tools
002BA104 KN

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
