WARNING
Deflector (2) may also be used for
mowing heads if it is equipped with the
skirt and line limiter blade, see
"Mounting Skirt and Blade".
WARNING
Deflector (3) is approved for shredder
blades only and must therefore be
mounted before fitting a shredder blade.
WARNING
The limit stop (4) is approved as a
deflector for circular saw blades only
and must therefore be mounted before
fitting a circular saw blade. It is also
necessary to change the guard ring (5),
see "Mounting the Cutting Attachment" /
"Mounting Circular Saw Blades".

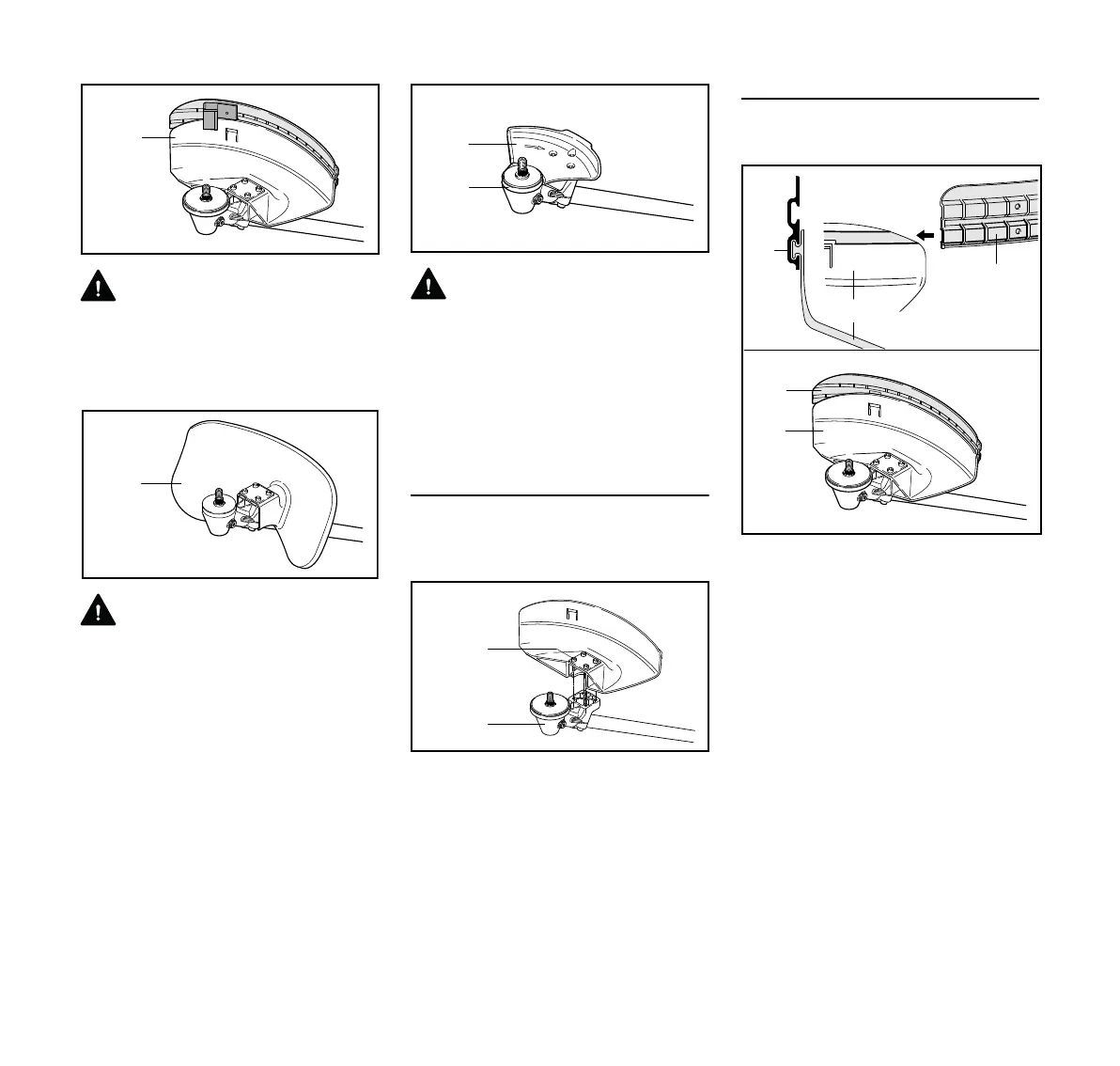

Mounting the Deflector
Deflectors (1 to 4) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and deflector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the
gearbox (6).
N Insert the screws (7) and tighten
them down firmly.
Fitting the Skirt
When using mowing heads
The deflector for metal mowing
attachments (1) must be equipped with
the skirt (2) when you use mowing
heads.
N Slide the lower guide slot (3) of the
skirt (2) onto the deflector (1) – it
must snap into position.
