Stihl FS 220 User Manual

FS 160, FS 220, FS 280, FS 290
English
71

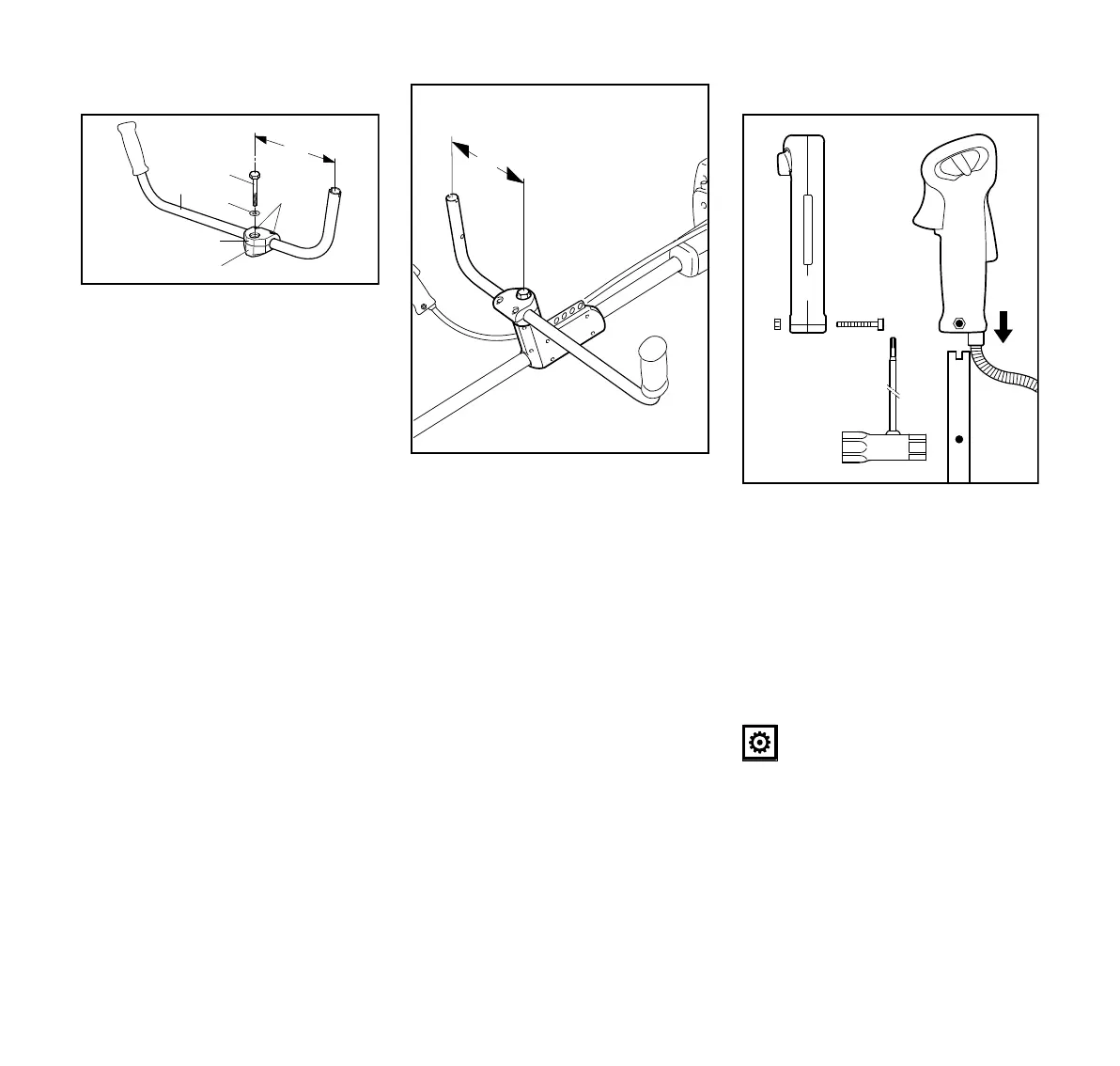

Mounting the handlebar
N Place the handlebar (1) in the lower
clamp (2) so that distance A is
about 15 cm.
N Fit the upper clamp (3) and tighten
the two screws (4) moderately.
N Push the hex screw (5) with
washer (6) through the two clamps
as far as stop – hold all parts
together.
N Place the assembly on the handle
support (7) with the hex screw at the
side nearest the engine.
N Push the hex screw (5) into the
handle support as far as stop and
then screw it down – but do not
finally tighten yet.
N Position the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the screws firmly.
Mounting the control handle
N Take out the screw (1) – the nut (2)
remains in the control handle (3).
N Push the control handle onto the
handlebar (5) until the holes (6) line
up – the throttle trigger (4) must
point towards the gearbox.
N Insert screw and tighten it down
firmly.
Fitting the throttle cable retainers
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
3
324BA084 KN
A
1
4
2
6
5
5
7
A
324BA085 KN
6
1
3
4
5
6
324BA086 KN
2
