WARNING
Deflector (3) is approved for shredder
blades only and must therefore be
mounted before fitting a shredder blade.
WARNING
The limit stop (4) is approved as a
deflector for circular saw blades only
and must therefore be mounted before
fitting a circular saw blade. It is also
necessary to change the guard ring (5),
see "Mounting the Cutting Attachment" /
"Mounting Circular Saw Blades".

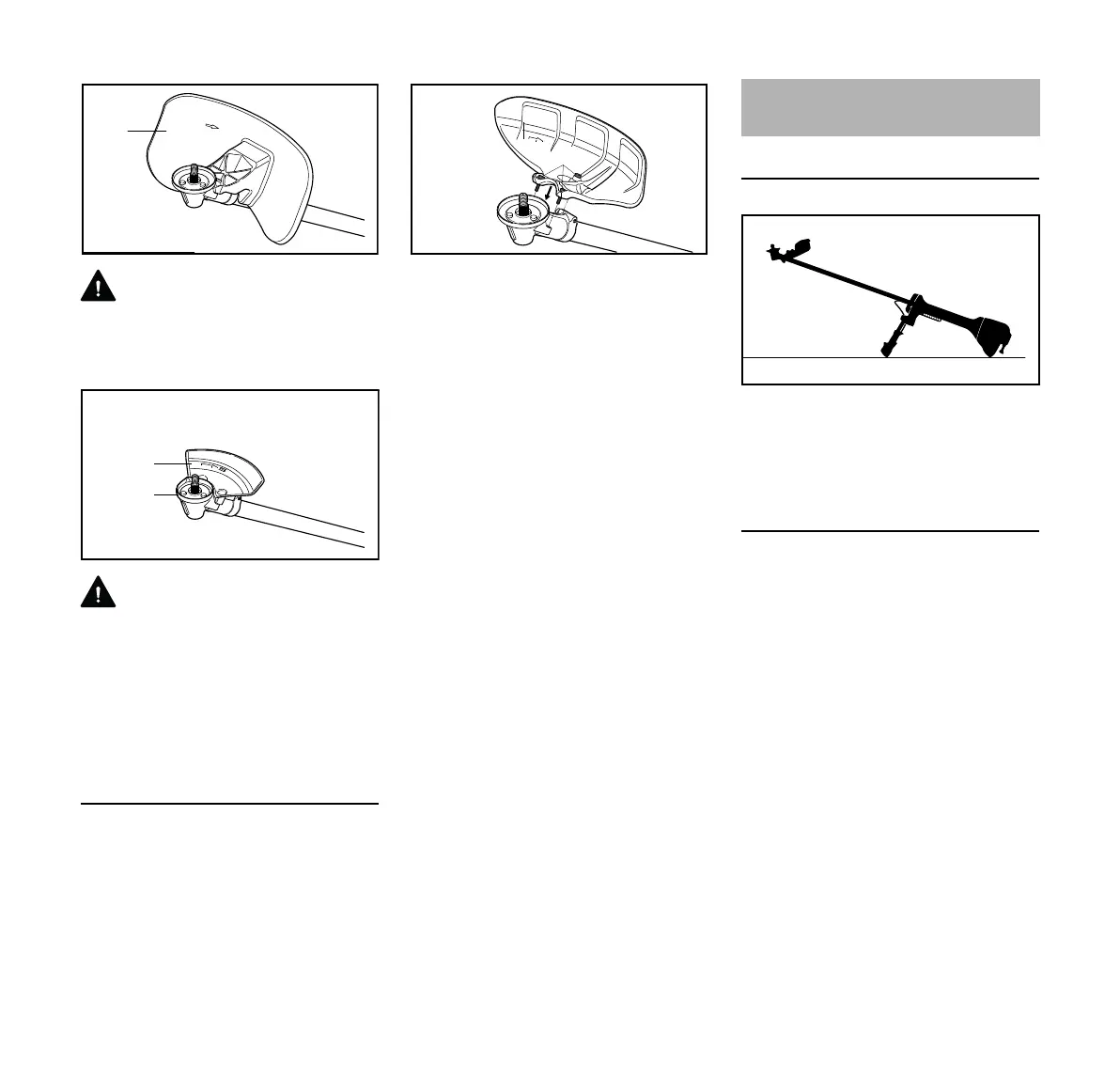

Mounting the Deflector
Deflectors (1 to 4) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and defelector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the
gearbox (6).
N Insert the screws (7) and tighten
them down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Use the Right Guard Ring
Your power tool comes standard with a
guard ring.
The guard ring is also available as a
special accessory.
The guard ring must be mounted with
particular care. Have this work
performed by your servicing dealer.
STIHL recommends a STIHL servicing
dealer.
3
002BA403 KN
4
002BA404 KN
5
7
6
002BA405 KN
Mounting the Cutting
Attachment
002BA406 KN
