► Fit the nut (1) counterclockwise and tighten it
down firmly.
► Remove the stop pin (9).

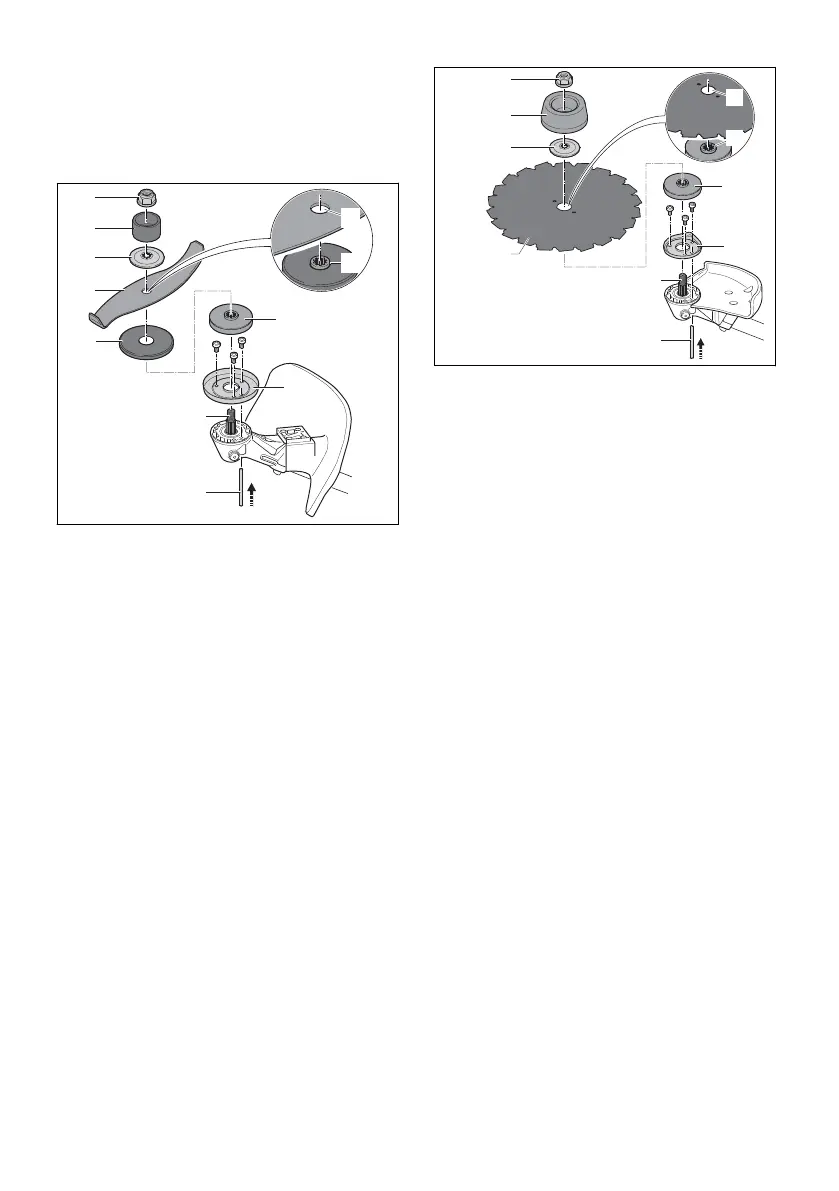

6.5.2 Mounting Shredder Blade
► Shut off the engine.
9
8
6
7
5
1
2
3
4
a
b
0000099628_001
► Attach the guard ring (7) for mowing applica‐
tions.
► Fit the thrust plate (6) and guard washer (5).
► Place the shredder blade (4) on the guard
washer (5). Align the cutting edges so that
they point away from the gear unit in the direc‐
tion of the nut (1).
The collar (a) must engage the hole (b) of the
metal cutting attachment.
► Place the thrust washer (3) on the shredding
blade (4) so that its convex side faces up.
► Place the guard ring (2) on the thrust washer
(3) so that the opening faces up.
► Insert the stop pin (9) in the hole up to the limit
stop and hold it depressed.
► Turn the shredder blade (4) counterclockwise
until the stop pin (9) engages in position.
The shaft (8) is now blocked.
► Fit the nut (1) counterclockwise and tighten it
down firmly.
► Remove the stop pin (9).
6.5.3 Mounting the Circular Saw Blade
► Shut off the engine.
8
7
5
6
1
2
3
4
a
b
0000099629_001
► Attach the guard ring (6) for sawing applica‐
tions.
► Fit the thrust plate (5).
► Place the circular saw blade (4) on the thrust
plate (5). Align the cutting edges so that they
face in the same direction as the arrow on the
deflector.
The collar (a) must engage the hole (b) of the
metal cutting attachment.
► Place the thrust washer (3) on the circular saw
blade (4) so that its convex side faces up.
► Place the rider plate (2) for sawing applica‐
tions on the thrust washer (3) so that its closed
side faces up.
► Insert the stop pin (8) in the hole up to the limit
stop and hold it depressed.
► Turn the circular saw blade (4) counterclock‐
wise until the stop pin (8) engages in position.
The shaft (7) is now blocked.
► Fit the nut (1) counterclockwise and tighten it
down firmly.
► Remove the stop pin (8).
6.5.4 Removing the metal cutting attach‐
ment
► Shut off the engine.
► Insert the stop pin in the bore up to the limit
stop and hold it depressed.
► Rotate the metal cutting attachment clockwise
until the stop pin engages in position.
The shaft is now blocked.
► Unscrew the mounting nut clockwise.
► Remove the fastening parts, metal cutting tool,
guard washer and thrust plate.
► Remove the circlip for mowing applications or
the circlip for sawing applications.
► Remove the stop pin.
6 Assembling the Trimmer English
0458-841-0101-A 13
