Stihl FS 510 C User Manual

FS 510 C, FS 560 C
English
22
NOTICE
Only use the 60-mm diameter thrust
plate. The 65-mm diameter thrust plate
is too big and must not be used – see
chapters "Mounting the Cutting
Attachment" / "Mounting the Mowing
Head" / "Mounting Grass Cutting
Blades".

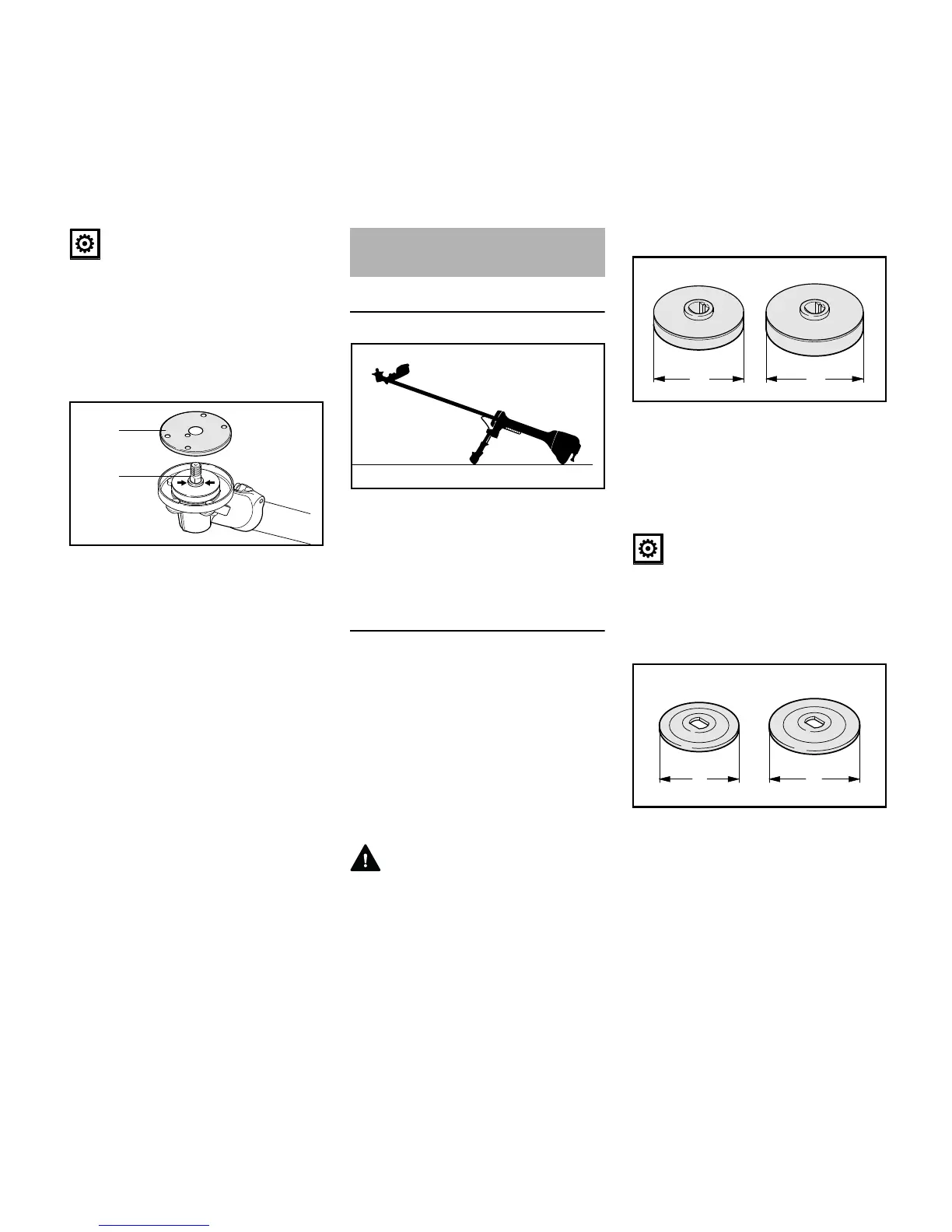

N Place the guard washer (6) on the
thrust washer – the whole collar
(arrows) on the shaft (1) must be
visible.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting Hardware for Cutting
Attachment
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
The appropriate deflectors and
mounting hardware are available as
special accessories for subsequently
equipping the machine with different
cutting attachments – see chapter on
"Special Accessories".
WARNING
Always use and assemble the cutting
attachment mounting hardware as
described in the chapter on "Mounting
the Cutting Attachment".
Thrust plate
– 60 mm (2.4 in) diameter (A) version
for mounting mowing heads and
grass cutting blades
– 65 mm (2.6 in) diameter (A) version
for mounting brush knives, shredder
blades and circular saw blades
NOTICE
The thrust plate is necessary for
mounting all cutting attachments to the
gearbox.
Thrust washers
– 60 mm (2.4 in) diameter (A) version
for mounting grass cutting blades
and circular saw blades
– 70 mm (2.8 in) diameter (A) version
for mounting brush knives and
shredder blades
002BA506 KN
6
1
Mounting the Cutting
Attachment
002BA406 KN
681BA188 KN
A
A
681BA189 KN
A
A
