Stihl FS 56 C User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
13

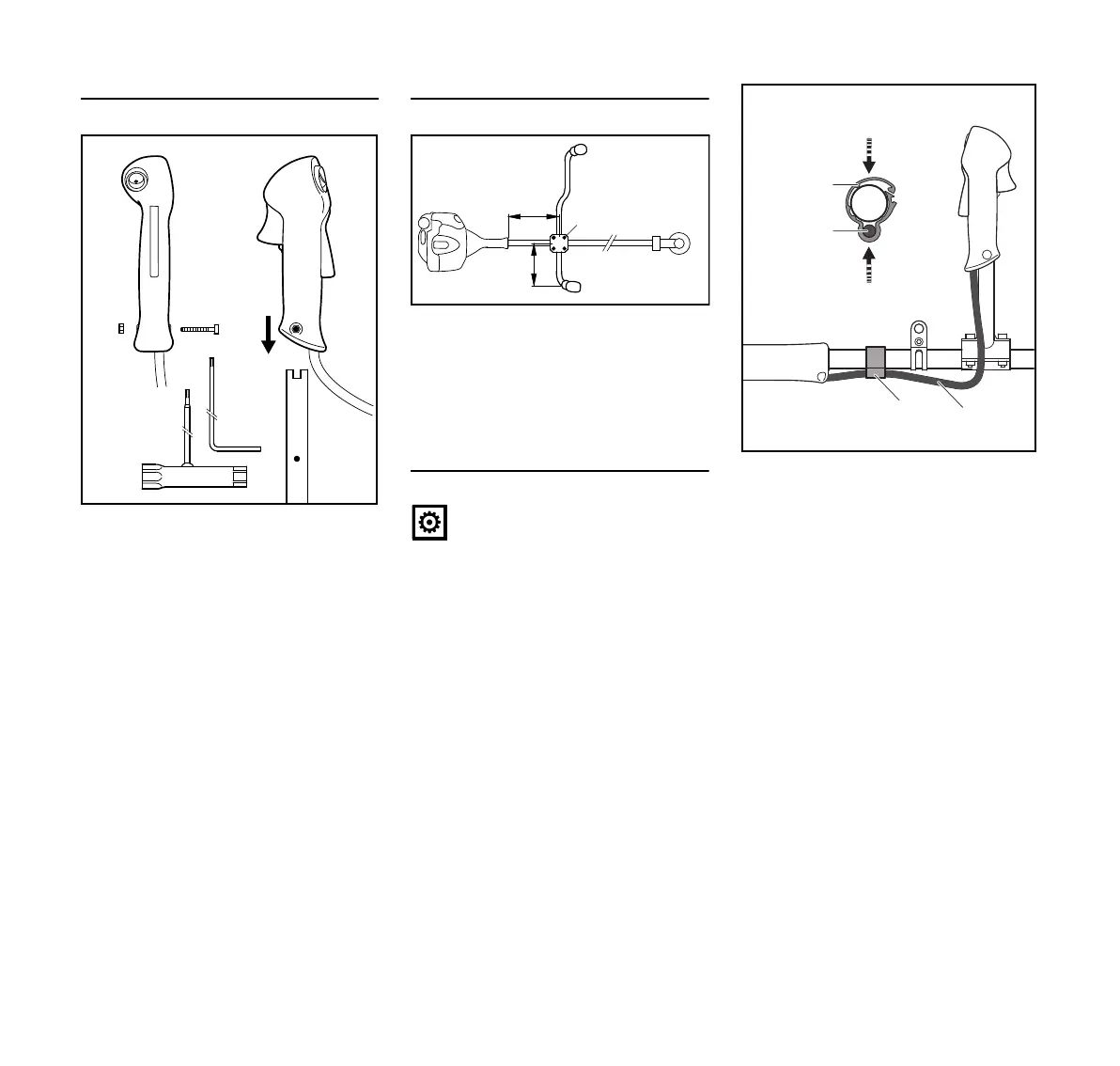

Mounting the Control Handle
N Take out the screw (1) – the nut (2)
remains in the control handle (3).
N Push the control handle onto the
handlebar (5) until the holes (6) line
up – the throttle trigger (4) must
point towards the gearbox.
N Insert the screw (1) and tighten it
down firmly.
Adjusting and securing the handlebar
N Align the handlebar so that
distance A is about 20 cm (8 in) and
distance B about 15 cm (6 in).
N Tighten down the screws (1) firmly
in a crosswise pattern.
Fitting the Throttle Cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Position the throttle cable
retainer (2) and throttle cable (1)
against the drive tube.
N Close the throttle cable retainer (2).
The retainer (2) snaps into place.
3
6
547BA027 KN
1
2
4
6
5
A
1
B
002BA275 KN
2
1
1
2
002BA276
