Stihl FS 56 C User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
16
Use the right deflector
WARNING
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head
WARNING
Deflector (2) is approved for grass
cutting blades only and must therefore
be mounted before fitting a grass cutting
blade.

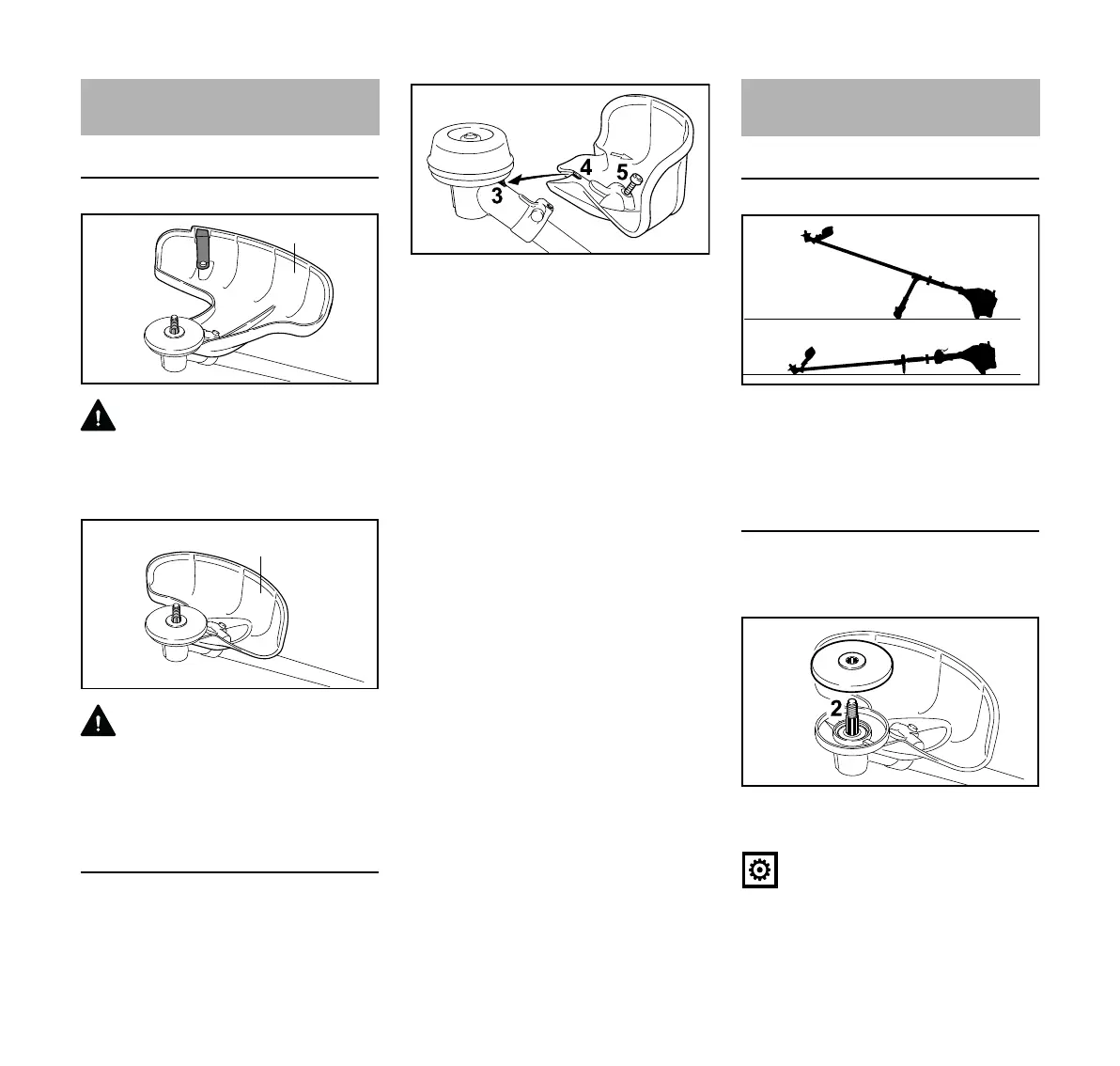

Mounting the Deflector
Deflectors (1) and (2) are both mounted
to the gearbox in the same way.
N Position the deflector against the
gearbox so that the lug (3) engages
the recess (4) in the deflector.
N Insert the screw (5) and tighten it
down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Fitting the Thrust Plate
The machine comes standard with the
thrust plate.
N Slip the thrust plate (1) over the
shaft (2).
NOTICE
The thrust plate on the gearbox is
necessary for mounting cutting tools.
Mounting the Deflector
002BA262 KN
1
002BA263 KN
2
0414BA007 KN
Mounting the Cutting
Attachment
002BA104 KN
002BA265 KN
1
