12 Using a Battery Harness
► Press the button (1) on the battery.
The LEDs on the battery will glow or flash green for about
5 seconds and indicate the state of charge (see
illustration).
For example:
If four green LEDs glow continuously: full charge.
If one green LED is flashing: less than 20 % charge.
12.1 STIHL AR Backpack Battery
12.1.1 Positioning and Adjusting the Connecting Cord
WARNING
To reduce the risk of injury from tripping or losing control of
the hedge trimmer, always secure the connecting cord
through the backpack guides and with the hook and eye
fasteners as described below. Position and secure the
connecting cord so that it will not interfere with proper
working technique or your ability to maintain control of the
hedge trimmer.
WARNING
Manage the cord to prevent it from contacting the cutting
blades or catching on objects, which could cause you to lose
balance or control of the hedge trimmer, resulting in serious
personal injury and property damage.

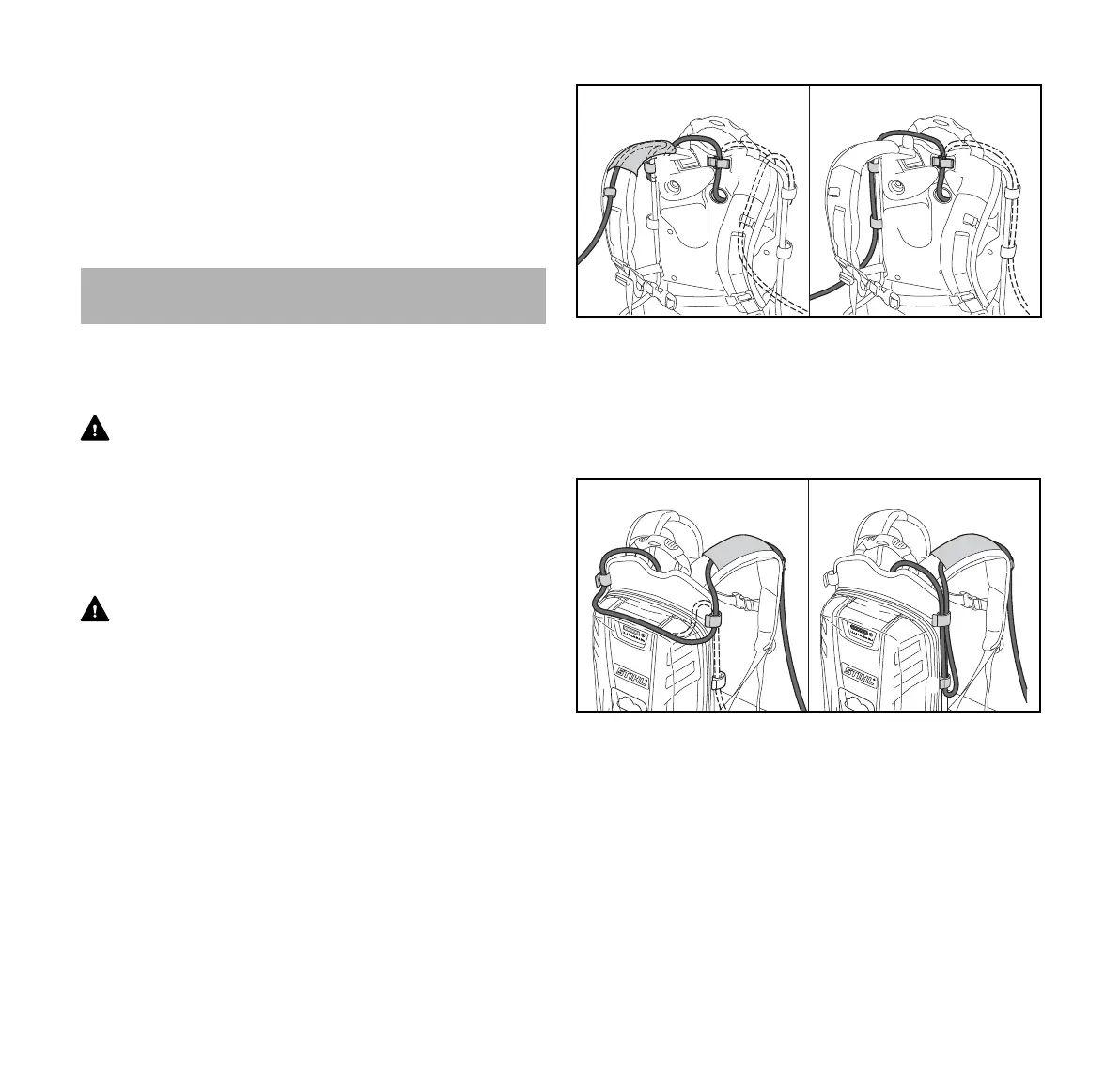

The connecting cord can be secured in different positions
and adjusted to suit the height and reach of the operator.
The connecting cord can run through the guides on the
shoulder straps (Illustration A) or along the back
plate (Illustration B). Secure the connecting cord to the
backpack with the hook and eye fasteners (1) on the side of
the body where the hedge trimmer is held and controlled. Do
not allow the connecting cord to swing across your body or
hang at your side.
The length of the connecting cord can be adjusted by
making a loop around the top (Illustration C) or on the side
(Illustration D) of the backpack battery.
► Position and secure the connecting cord so that it will not
interfere with proper working technique or your ability to
maintain control of the hedge trimmer.
12 Using a Battery Harness
0000-GXX-2801-A2
1
1
1
1
1
1
B
A
