► Shut off the engine.
► Fit the blade scabbard.

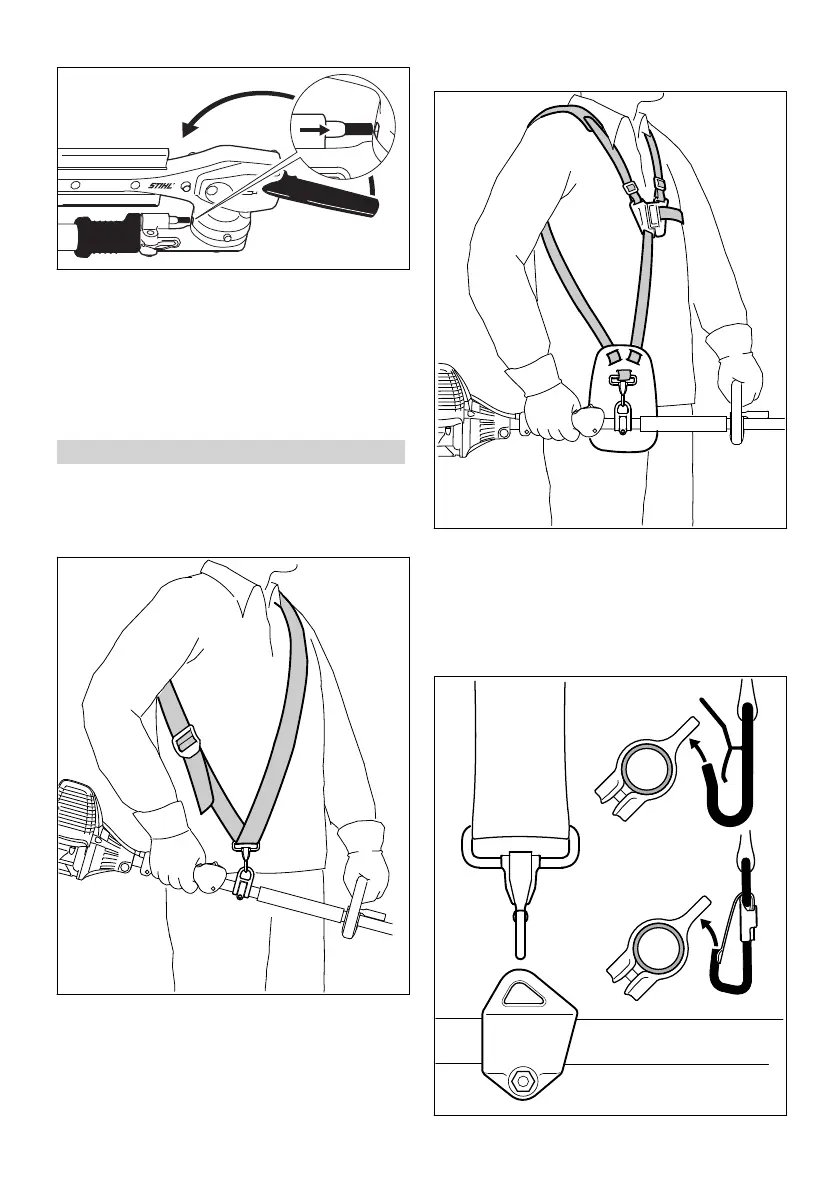

► Pull back the sliding sleeve (1) and use the
lever (2) to swing the joint upwards – in direc‐
tion of drive tube – until the cutter bar is flat
against the drive tube.
► Release the sliding sleeve (1) and make sure
the lock pin engages the quadrant (3).
8 Fitting the Harness
The type and style of the harness and carabiner
(spring hook) depend on the market.
8.1 Shoulder Strap
► Put on the shoulder strap (1).
► Adjust the length of the strap so that the cara‐
biner (2) is about a hand’s width below your
right hip.
8.2 Full Harness
► Put on the full harness (1).
► Adjust the length of the strap so that the cara‐
biner (2) is about a hand’s width below your
right hip.
► Close the locking plate (3).
8.3 Attaching Machine to Harness
English 8 Fitting the Harness
14 0458-401-0121-E
