Stihl KA 85 User Manual

KA 85 R
English
35

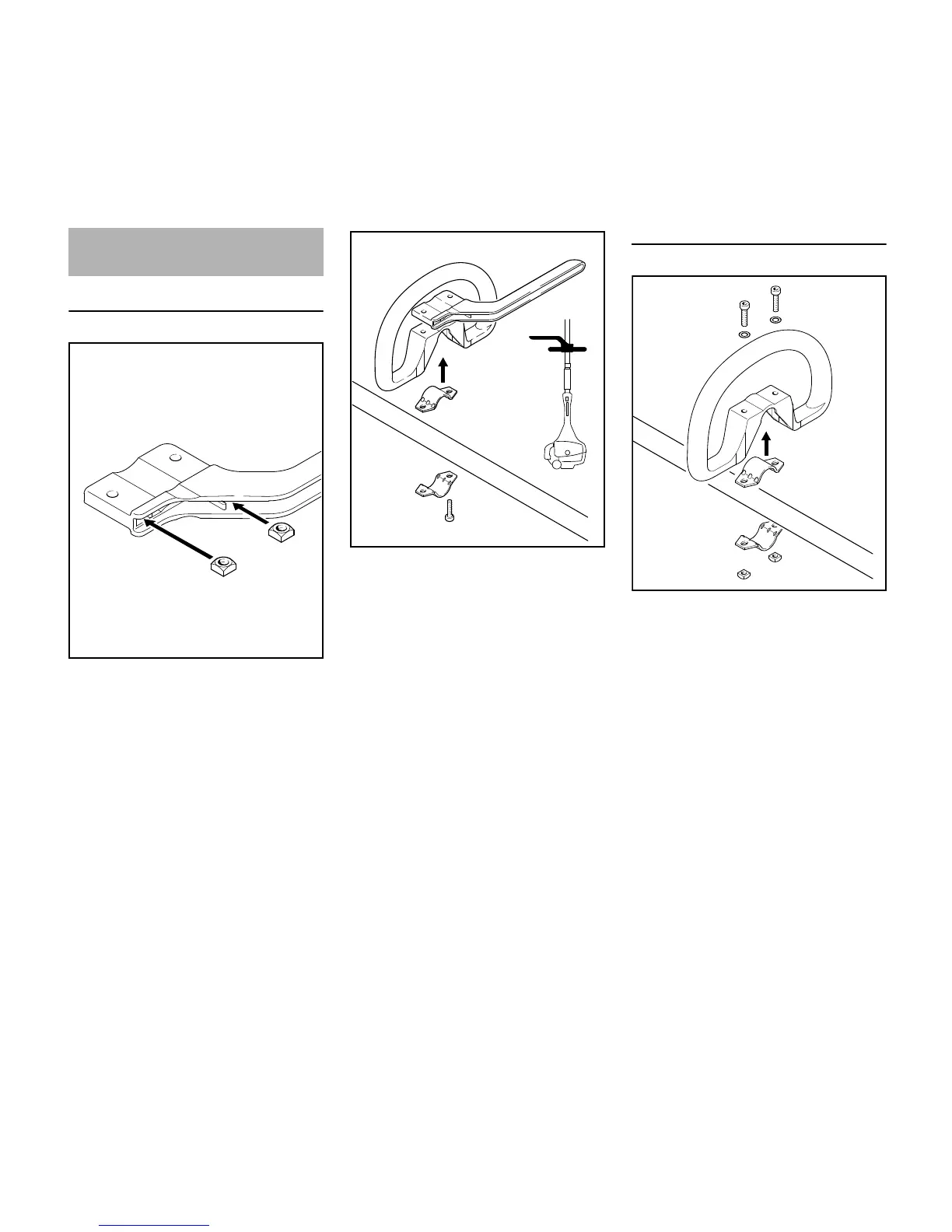

Loop handle with barrier bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Fit the clamp (3) in the loop
handle (4) and place them both on
the drive tube (5).
N Place the clamp (6) in position.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) and tighten
them down moderately against the
barrier bar.
N Go to "Securing the loop handle".
Loop handle without barrier bar
N Fit the clamp (3) in the loop
handle (4) and place them both on
the drive tube (5).
N Place the clamp (6) in position.
N Line up the holes.
N Fit washers (7) on the screws (8)
and insert the screws in the holes.
Fit the square nuts (1) and screw
them down as far as stop.
N Go to "Securing the loop handle".
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
4
5
002BA136 KN
1
6
1
3
8
7
8
7
