Stihl KM 85 R User Manual

14
English
KM 85, KM 85 R

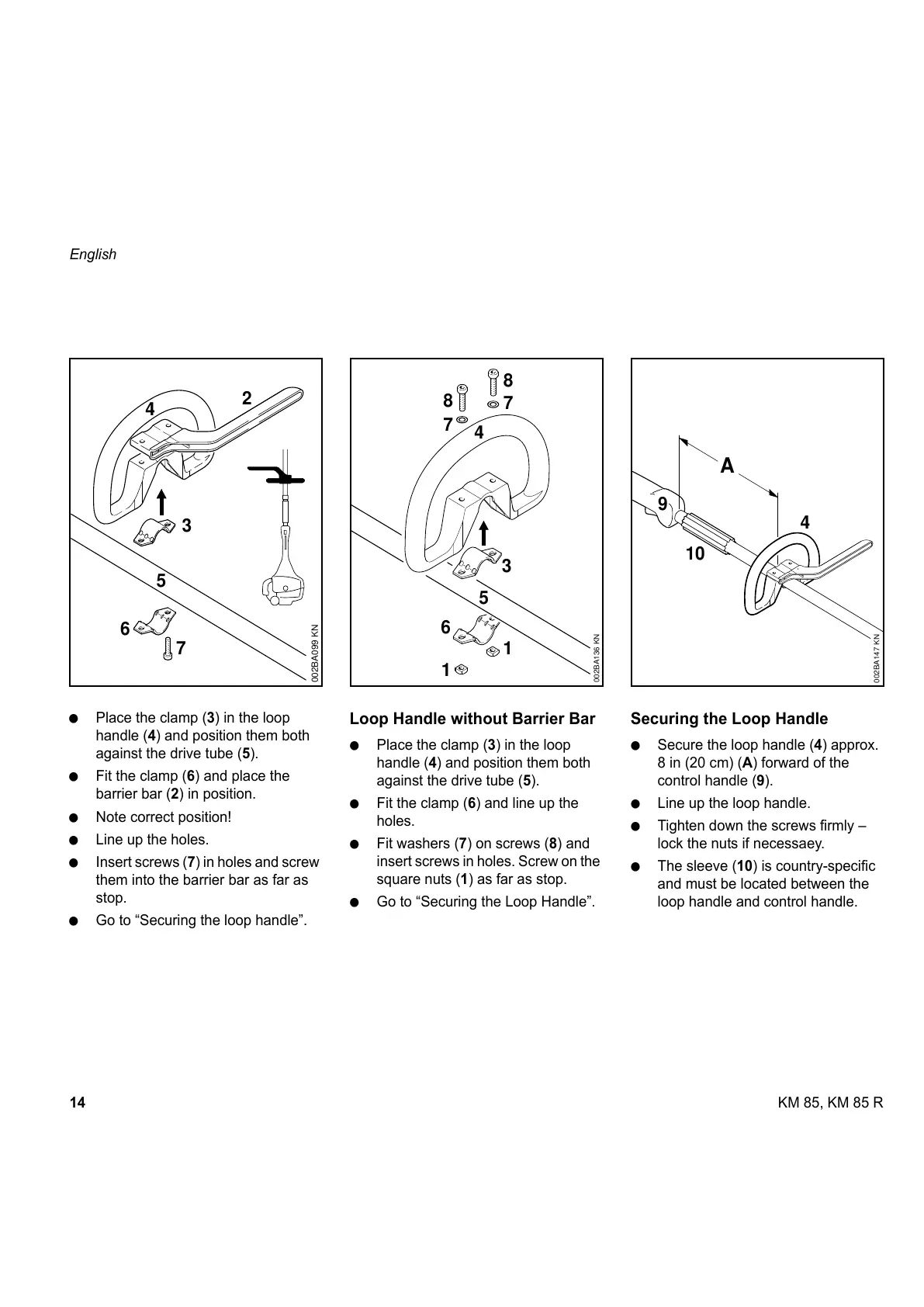

: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place the
barrier bar (2) in position.
: Note correct position!
: Line up the holes.
: Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
: Go to “Securing the loop handle”.
Loop Handle without Barrier Bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit washers (7) on screws (8) and
insert screws in holes. Screw on the
square nuts (1) as far as stop.
: Go to “Securing the Loop Handle”.
Securing the Loop Handle
: Secure the loop handle (4) approx.
8 in (20 cm) (A) forward of the
control handle (9).
: Line up the loop handle.
: Tighten down the screws firmly –
lock the nuts if necessaey.
: The sleeve (10) is country-specific
and must be located between the
loop handle and control handle.
5
4
002BA099 KN
2
3
6
7
4
5
002BA136 KN
1
6
1
3
8
7
8
7
10
9
4
002BA147 KN
A
