Stihl MS 461 R User Manual

MS 461 R
English
6

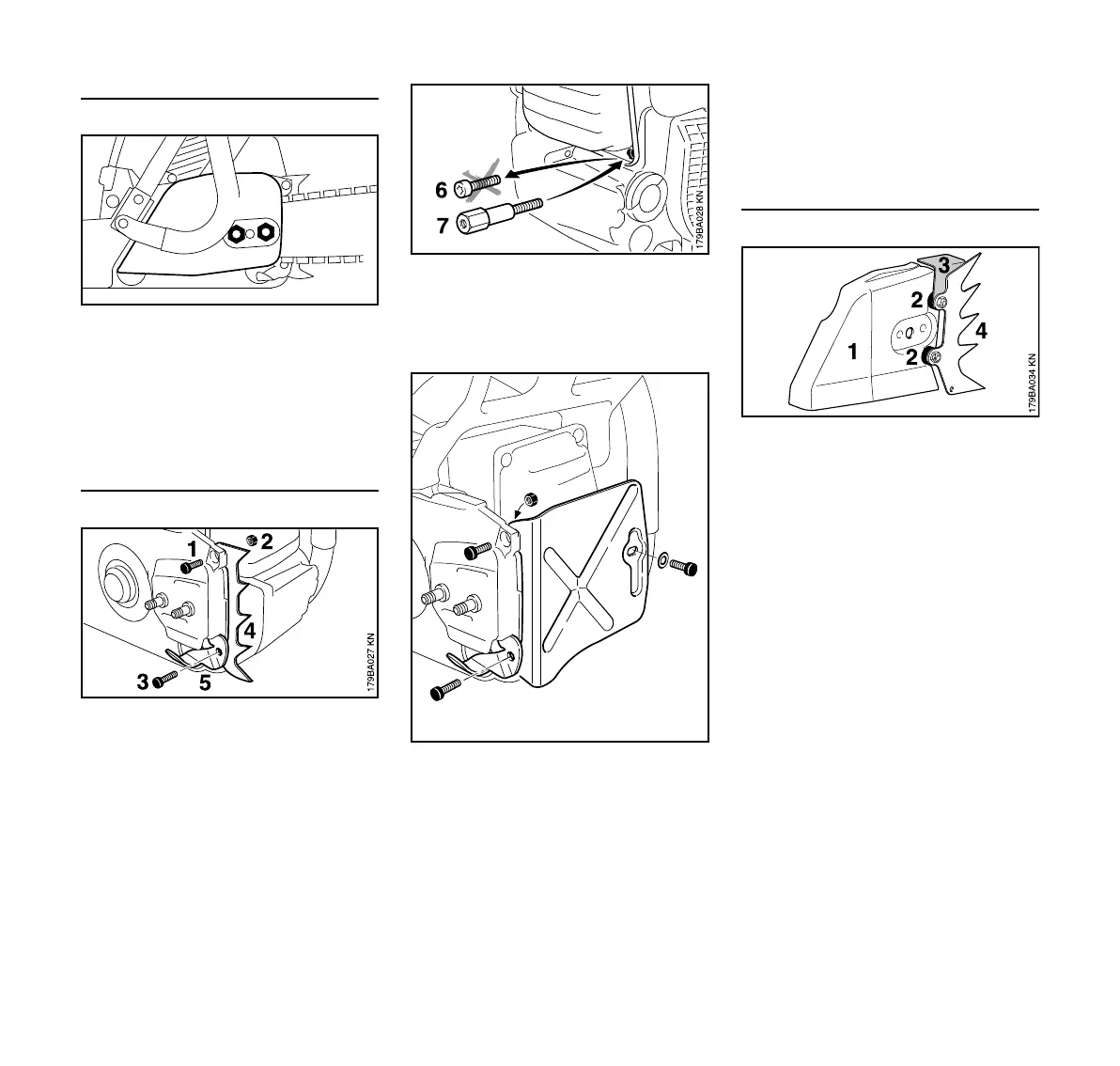

Cutting attachment
N Unscrew the nuts (1) and remove
the sprocket cover (2).
N Remove the bar and chain – see
chapter on "Mounting the Bar and
Chain" in instruction manual of saw
you are using.
Installing the guard plate
N Remove the screw (1) and nut (2).
N Take out the screw (3).
N Remove the spiked bumper (4) and
chain catcher (5).
N Take out the screw (6).
N Coat screw (7) from conversion kit
with Loctite 243 or equivalent
adhesive and install.
N Fit the guard plate (8) with screw (1)
and nut (2).
N Coat the M5x12 screw (9) from
conversion kit with Loctite 243 or
equivalent adhesive.
N Fit the screw (9) with washer (10) –
washer is supplied only with a
slotted guard plate and is required
only in such a case.
N Mount the chain catcher (5) with
screw (3).
N Tighten down the screws and nut
firmly in a crosswise pattern.
Chain sprocket cover
N To mount the bar and chain, use the
chain sprocket cover from the
conversion kit – the spacer
washers (2), cover (3) and spiked
bumper (4) must be fitted.
N Mount the bar and chain – see
instruction manual of basic
chainsaw.
N Mount the depth limiter – see
"Mounting the depth limiter".
1
1
147BA008 KN
2
10
3
1
9
2
5
8
147BA017 KN

Stihl MS 461 R Specifications

General

Brand	Stihl
Model	MS 461 R
Category	Chainsaw
Language	English
