10
REMOVING AND REPLACING TWO DIFFERENT SIZE BARS, SAW CHAINS, AND CHAIN
SPROCKETS ON A STIHL
®
MS 250 CHAINSAW
3DSANDS.COM © 2015
3DSANDS.COM © 2014
3DSANDS.COM © 2014
3DSANDS.COM © 2014
CONCLUSION

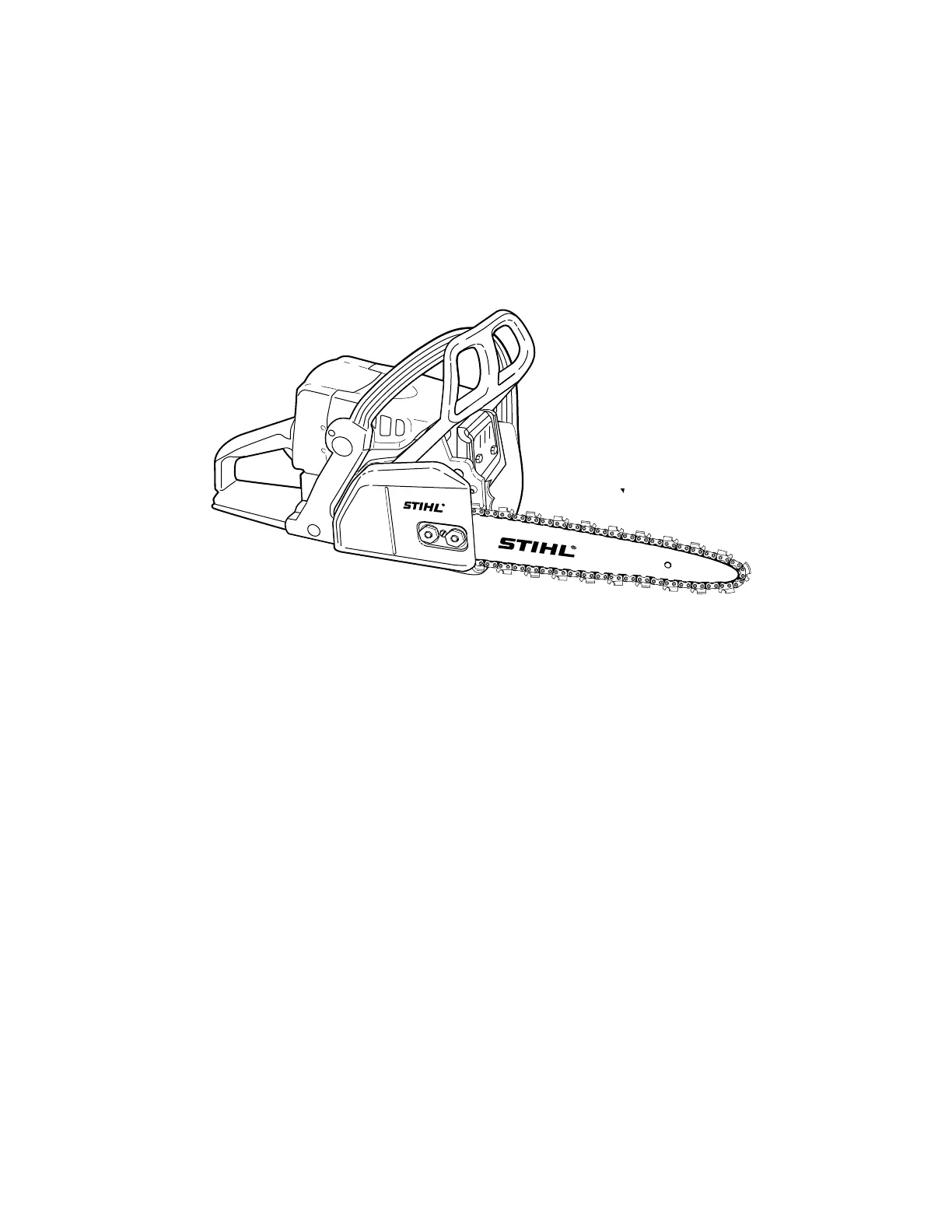

The directions for the procedure are complete. The completed saw is pictured below.
In the future I would like to laminate these directions so that this information would be
available in workshops, protecting it from becoming unusable from tarnish acquired
from the workshop environment.
TROUBLESHOOTING SECTION
• If the bar does not go on check the tensioning pin it might not be in place on the bar
plate. See step 18 on page 7.
• If the sprocket cover does not go on easily remember it only has one tab that ts into
the saw. The top of the sprocket cover rests on the top lip of interior.
REFERENCE
• ‘‘STIHL-MS-210-230-250-Instruction-Manual.’’ Sept. 2013. Web. 09 Sept. 2013.
