27MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C
English / USA

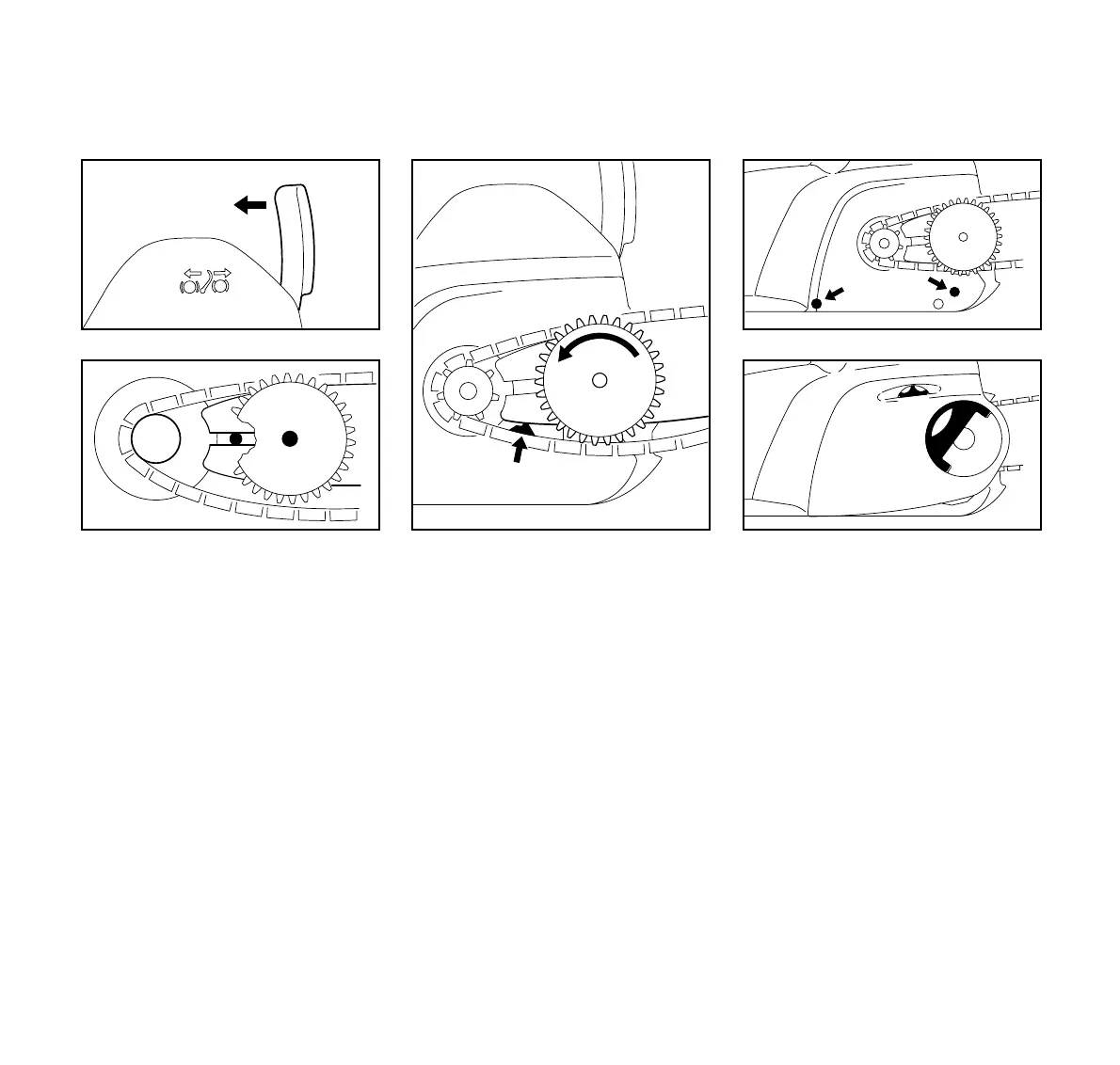

: Disengage the chain brake: Push
hand guard (10) toward the front
handle.
: Turn the guide bar so that the
tensioning gear is facing you.
: Fit the chain over the sprocket (11)
and slip the guide bar over the collar
screw (12), the head of the rear
collar screw must locate in the slot.
: Make sure the drive link tangs
engage the bar groove (see arrow)
and then rotate tensioning gear
counterclockwise as far as stop.
: Place sprocket cover in position.
Engage guide lugs in holes in motor
housing and check that the teeth of
the adjusting wheel and tensioning
gear are meshing.
: If necessary, turn the adjusting
wheel (13) slightly until the sprocket
cover can be pushed flush against
the motor housing.
: Swing out the handle (14) so that it
snaps into position.
: Engage wingnut and tighten it down
moderately.
: Fold down the handle.
10
100BA008 KN
11
12
135BA010 KN
100BA009 KN
100BA010 KN
13
14
100BA011 KN
