0478-131-9541-A
107
日本語

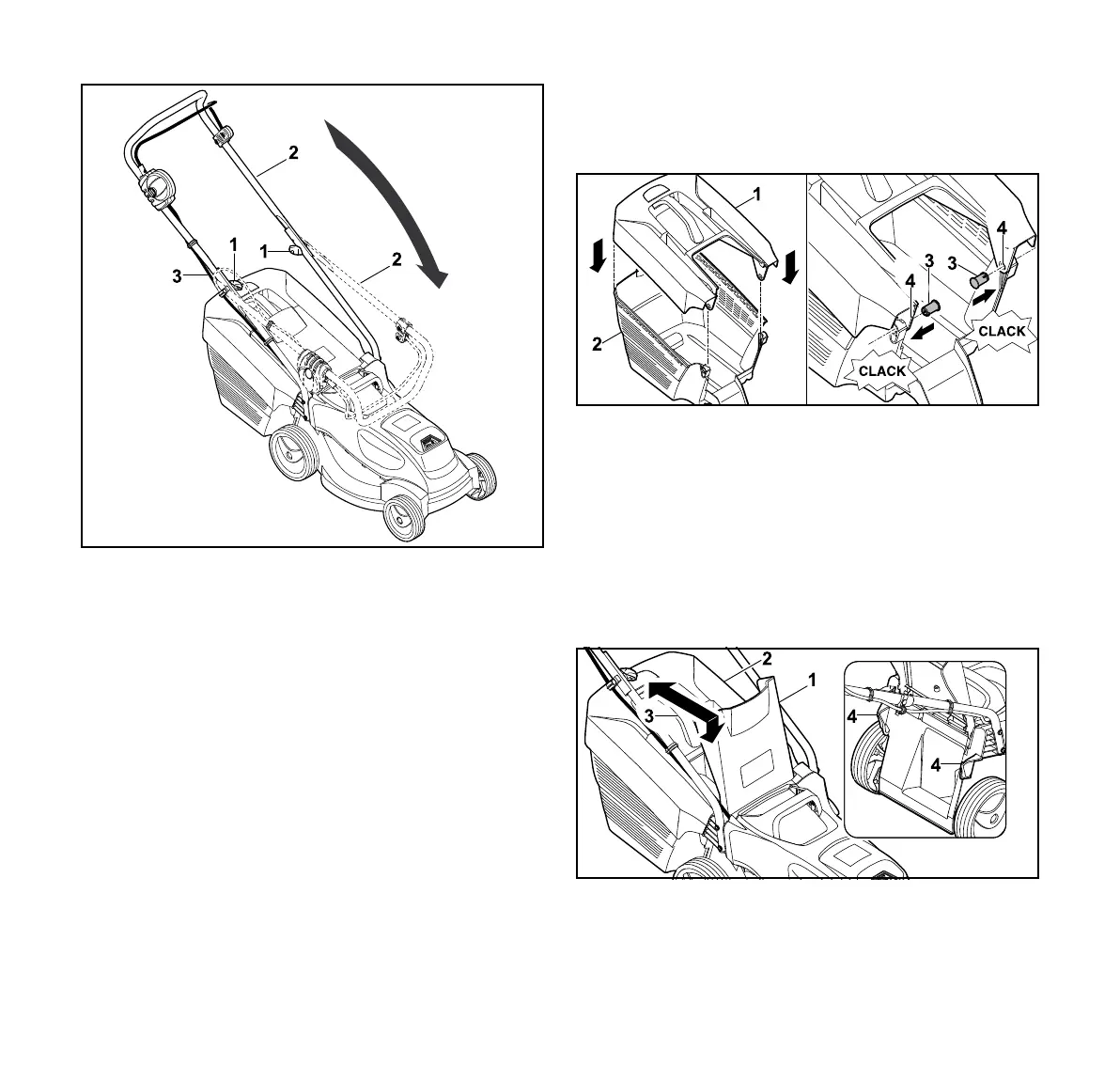

7 芝刈機の組み立て
回転ハンドル(1)を緩め、簡単に回転する状態にしま
す。
ケーブル(3)を損傷しないように注意しながら、上部ハ
ンドルバー(2)を前方に折り畳みます
7.3 収草ボックスの組み立て、取り付けおよび取
り外し
7.3.1 収草ボックスの組み立て
収草ボックス上部(1)を収草ボックス下部(2)に取
付けます。
内側から穴(4)にピン(3)を押し込みます。
収草ボックス上部(1)を下方へ押し込みます。
カチッという音がして、収草ボックス上部がはめ込まれ
ます。
7.3.2 収草ボックスの取り付け
芝刈機のスイッチを切ります。
芝刈機を平な場所に置きます。
排出板(1)を開き、開いたままにします。
収草ボックス(2)のハンドル(3)をつかみ、フック
(4)をマウント(5)に取り付けます。

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stihl RMA 235 and is the answer not in the manual?

Stihl RMA 235 Specifications

General IconGeneral
TypeWalk behind lawn mower
Cutting width330 mm
Grass catcherYes
Product colorBlack, Grey, Orange
Uncertainty K0.9 m/s²
Housing materialPlastic
Number of wheels4 wheel(s)
Rotational speed3400 RPM
Maximum lawn area- m²
Mulching function-
Sound power level89 dB
Handle(s) featuresFoldable
Standard deviation2 dB
Vibration emission1.8 m/s²
Sound pressure level87.9 dB
Maximum cutting height60 mm
Minimum cutting height25 mm
Grass collecting volume30 L
Number of height positions5
Power sourceBattery
Power consumption (typical)450 W
Weight and Dimensions IconWeight and Dimensions
Weight14000 g
