7.3 Assembling, Attaching and
Detaching the Grass Catcher
Box

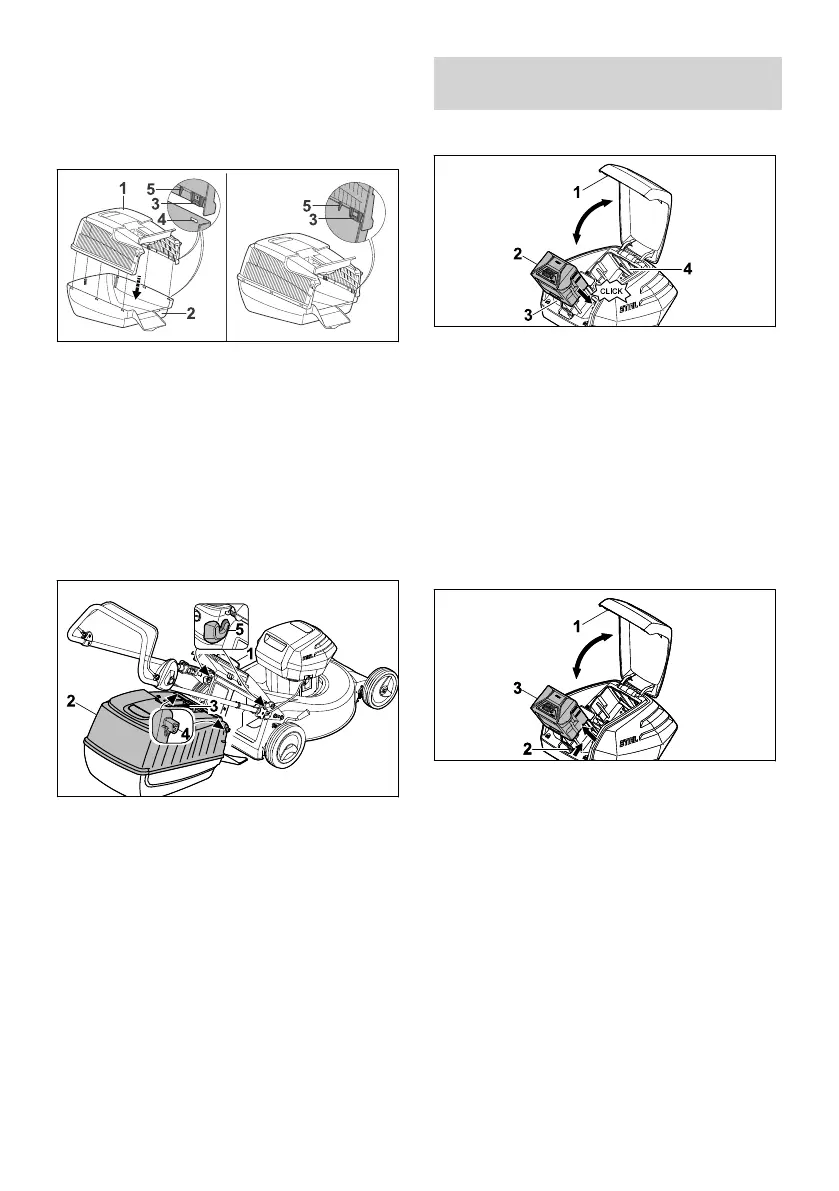

7.3.1 Assembling the Grass Catcher Box
► Fit upper part of grass catcher box (1) onto
lower part of grass catcher box (2).
Tabs (3) and guides (5) must be located on
the inside. Tabs (3) must be level with open‐
ings (4).
► Press tabs (3) into openings (4) one after the
other from back to front.
Tabs (3) engage audibly.
7.3.2 Attaching the Grass Catcher Box
► Stop the engine.
► Place the lawn mower on a level surface.
► Open discharge flap (1) and hold it open.
► Take hold of grass catcher box (2) by han‐
dle (3) and attach to mounts (5) using
hooks (4).
► Set down discharge flap (1) on grass catcher
box (2).
7.3.3 Detaching the Grass Catcher Box
► Switch the lawn mower off.
► Place the lawn mower on a level surface.
► Open the discharge flap and hold it open.
► Remove the grass catcher box upwards by the
handle.
► Close the discharge flap.
8 Removing and Fitting the
Battery
8.1 Fitting the Battery
► Open flap (1) as far as the stop and hold.
► Push battery (2) into battery compartment (3)
as far as it will go.
Battery (2) engages with a click and is locked
in place.
► If a second battery is to be carried: fit the bat‐
tery in transport compartment (4).
The battery engages with a click and is locked
in place.
► Close flap (1).
8.2 Removing the Battery
► Place the lawn mower on a level surface.
► Open flap (1) as far as the stop and hold.
► Press locking lever (2).
Battery (3) is released.
► Remove battery (3).
► Close flap (1).
8 Removing and Fitting the Battery English
0478-131-9961-C 31
