Sub-Zero 736TC User Manual

Installation Notes
Stainless steel panels with handles are
available as accessories. Panels for an 80"
finished height are offered in classic, platinum
and carbon finishes. Panels for an 84" finished
height come in the classic finish only. These
panels are not installed at the factory.
Complete installation specifications, including
panel sizes, can be found on our website,
subzero.com.
Unit dimensions may vary by ±
1
/ 8 ".
Specifications
Overall Width 36"
Overall Height 80"
Overall Depth 24"
Door Clearance 34
1
/2"
Drawer Clearance 19
1
/2"
Refrigerator Capacity 13.5 cu ft
Freezer Capacity 6.9 cu ft
Finished Opening 36" W x 80" H x 25" D*
Electrical Requirements 115 V AC, 60 Hz
15 amp dedicated circuit
Plumbing Requirements
1
/4" OD copper line
(Model 736TCI) 20–100 psi
Annual Energy Usage $52**
Shipping Weight 480 lbs
*Depth is 24" from the front of the unit to its back.
Your design may necessitate moving the unit
back, or cabinets forward to achieve a flush fit.
This will require a minimum opening depth of 25".
**Based on 9.06 cents per kilowatt hour.
ANTI-TIP
BRACKET*
*PLACEMENT OF THE
ANTI-TIP BRACKET
SHOULD BE 24" (610)
FROM THE FRONT OF THE
UNIT WITHOUT PANELS
TO THE BACK OF THE
ANTI-TIP BRACKET.
25"
(635)
36"
(914)
80"
(2032)
27"
(686)
25"
(635)
WATER LINE
BOTTOM ENTRY
LOCATION
WATER LINE
SIDE ENTRY
LOCATIONS
1
1
/2"
(38)
1
1
/2"
(38)
27"
(686)
1
1
/2"
(38)
20" (508) 13
1
/2"
(343)
18" (457)
ANTI-TIP
BRACKET
18" (457)
6"
(152)
TOP VIEW TOP VIEW
SIDE VIEW FRONT VIEW
WATER LINE
SIDE ENTRY
LOCATION
ANTI-TIP
BRACKET
2
1
/2" (64)
20" (508)
3
/4"
(19)
3"
(76)
17
1
/2" (445) 13
1
/2"
(343)
ANTI-TIP
BRACKET
NOTE: ANTI-TIP BRACKET MUST BE INSTALLED TO
PREVENT UNIT FROM TIPPING FORWARD
4
1
/2"
(114)
1
/4"
(6)
LOCATE WATER LINE
(REAR ENTRY) WITHIN
SHADED AREA
LOCATE ELECTRICAL WITHIN
SHADED AREA – ORIENT GROUND
PRONG TO RIGHT AS SHOWN

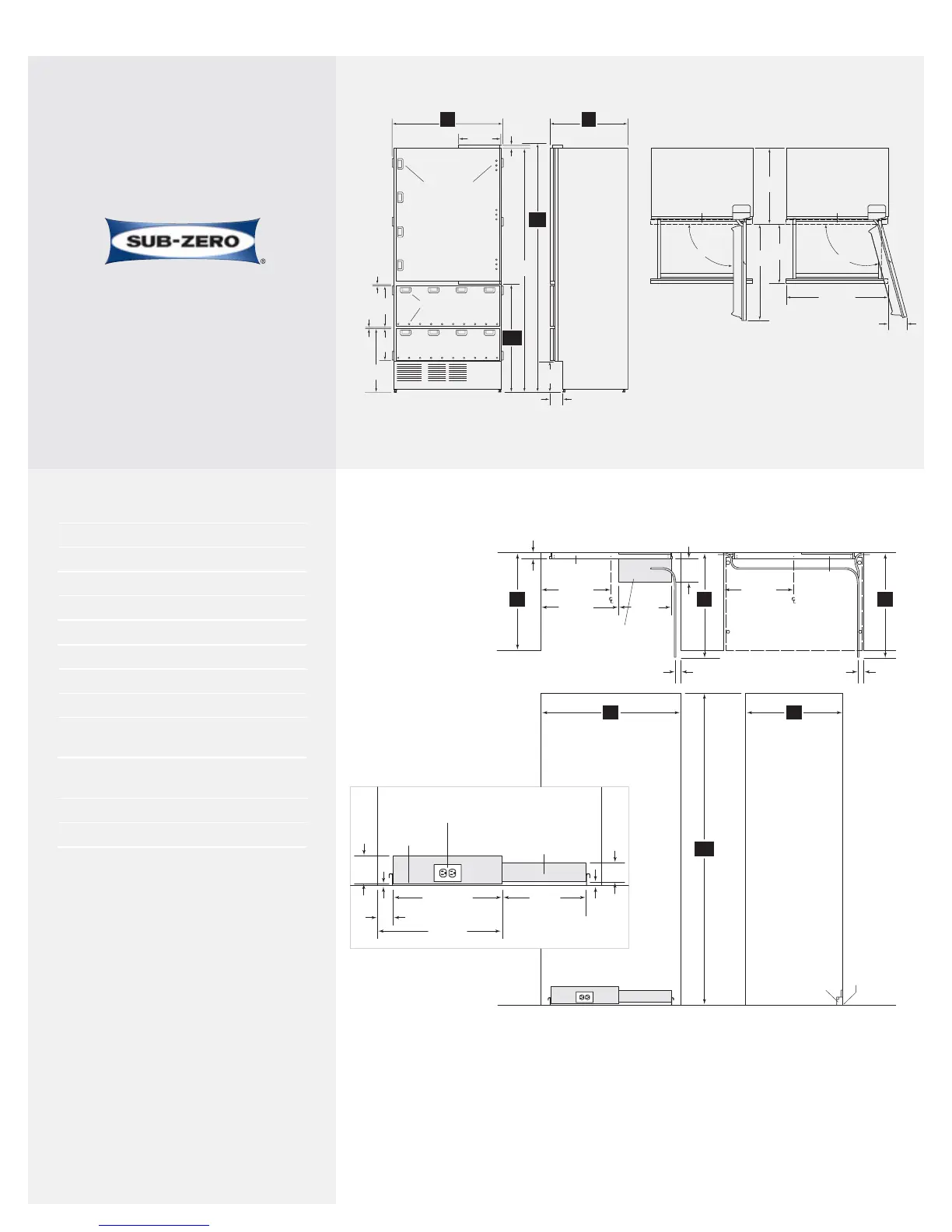

Installation Specifications
Overall Dimensions
Model 736TC(I)
Integrated Refrigerator/Freezer
DOOR MOUNTING
DETAIL
DRAWER MOUNTING
DETAIL
TOP OF
ROUGH
OPENING
77
13
/16"*
(1976)
34
1
/2"*
(876)
3
/8"
(10)
13
1
/4"
(337)
1
/2"
(13)
10
1
/4"
(260)
20
3
/8"
(518)
14"(356)
1
5
/16"
(33)
9
3
/4"
(248)
4"
(102)
80"*
(2032)
36"
(914)
24"
(610)
FRONT VIEW SIDE VIEW
(UNIT DIMENSION) (UNIT DIMENSION)
*
1
/2" (13)
+
_
ADJUSTMENT IN LEVELING LEGS
105˚
90˚
90˚ DOOR OPENING
DOOR/DRAWER
CLOSED
MAXIMUM DOOR OPENING
DOOR/DRAWER
CLOSED
19
1
/2"*
(495)34
1
/2"*
(876)
24"
(610)
34
7
/8" (886)
7"*
(178)
*
DOOR/DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION
TOP VIEW
Dimensions in parentheses are in
millimeters unless otherwise specified.
Models without an ice
maker will not require the
water line connection.

Sub-Zero 736TC Specifications

General

Brand	Sub-Zero
Model	736TC
Category	Refrigerator
Language	English
