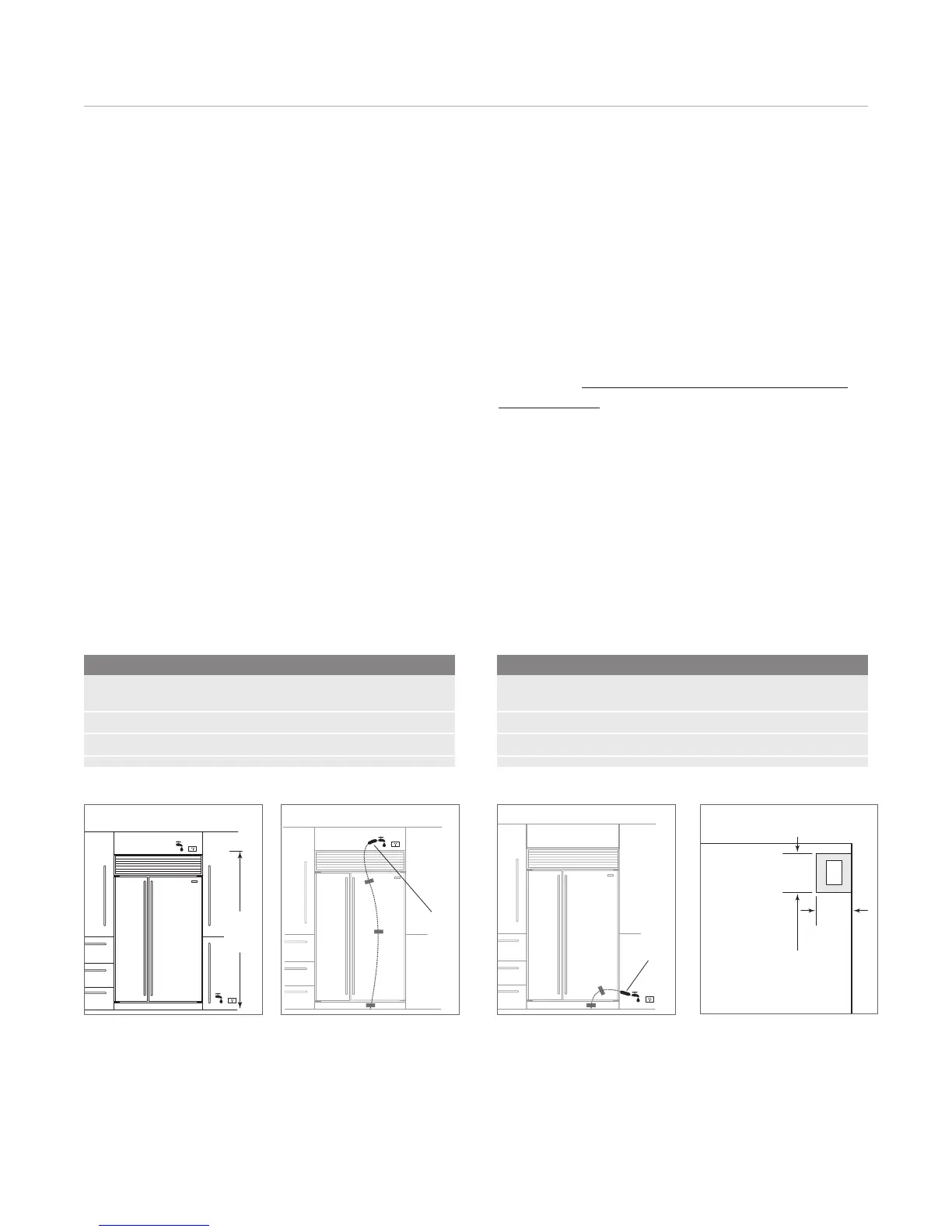

Built-In Refrigeration 8
subzero.com/specs
Electrical Requirements
Power Supply 220-240 V AC, 50/60 Hz
Circuit Breaker 10 amp
Receptacle 3-prong grounding-type
Plumbing Requirements
Water Supply Line 6mm plastic line
Water Pressure 2.1–6.9 bar
Water line for Connection 5m
FRONT VIEW
1918 mm
FROM
FLOOR
178
mm
E
152
mm
Freestanding location of
power supply.
Built in. Alternative location
of power & water supply
depending on ease of access.
2,200 mm
minimum
FROM
FLOOR
1.
2.
2. Built in. Water supply beside
fridge. Location of 6mm
fl exible hose. Tape to wall and
fl oor with pressure limiting
valve next to tap.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1.
2.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1. Built in. Water supply above
fridge. Location of 6mm
fl exible hose. Tape to wall and
fl oor with pressure limiting
valve next to tap.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
1.
2.
pressure
limiting valve
6mm flexi hose
& tape to wall
& floor.
Planning Information
ELECTRICAL REQUIREMENTS
International models from the factory designed without a
transformer require a 220-240 V AC, 50/60 Hz electrical
supply, fused at the correct rating for the unit. If required
by local or national codes, the power cord can be easily
replaced using the power inlet device.
Built-in models should have the electrical supply either
in the cabinet above the refrigerator a MINIMUM OF
2200MM ABOVE THE FLOOR or in the cabinet alongside.
If freestanding then locate the power point as per the
diagram below. A separate circuit servicing only this
appliance is required. A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption
of operation.
PLUMBING REQUIREMENTS
For built-in models with an automatic ice maker, a
pressure limiting valve and 5 meters of exible 6mm
pipe with ttings is included in the refrigerator carton.
Connect the pressure limiting valve close to the water tap,
CHECKING THE WATER FLOW IS IN THE RIGHT
DIRECTION. Ensure water connection is ½” BSP male
threaded outlet. Tape the 6mm water line to the wall and
oor to ensure it isn’t squashed when the refrigerator is
pushed into the cavity. Locate the water tap either in the
cabinet above a minimum of 2200mm from the oor, or in
the cabinet alongside.
The water line must not interfere with installation of the
anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 2.1 bar
to 6.9 bar supplied to the unit at all times.
