Sub-Zero ICBBI-36F User Manual

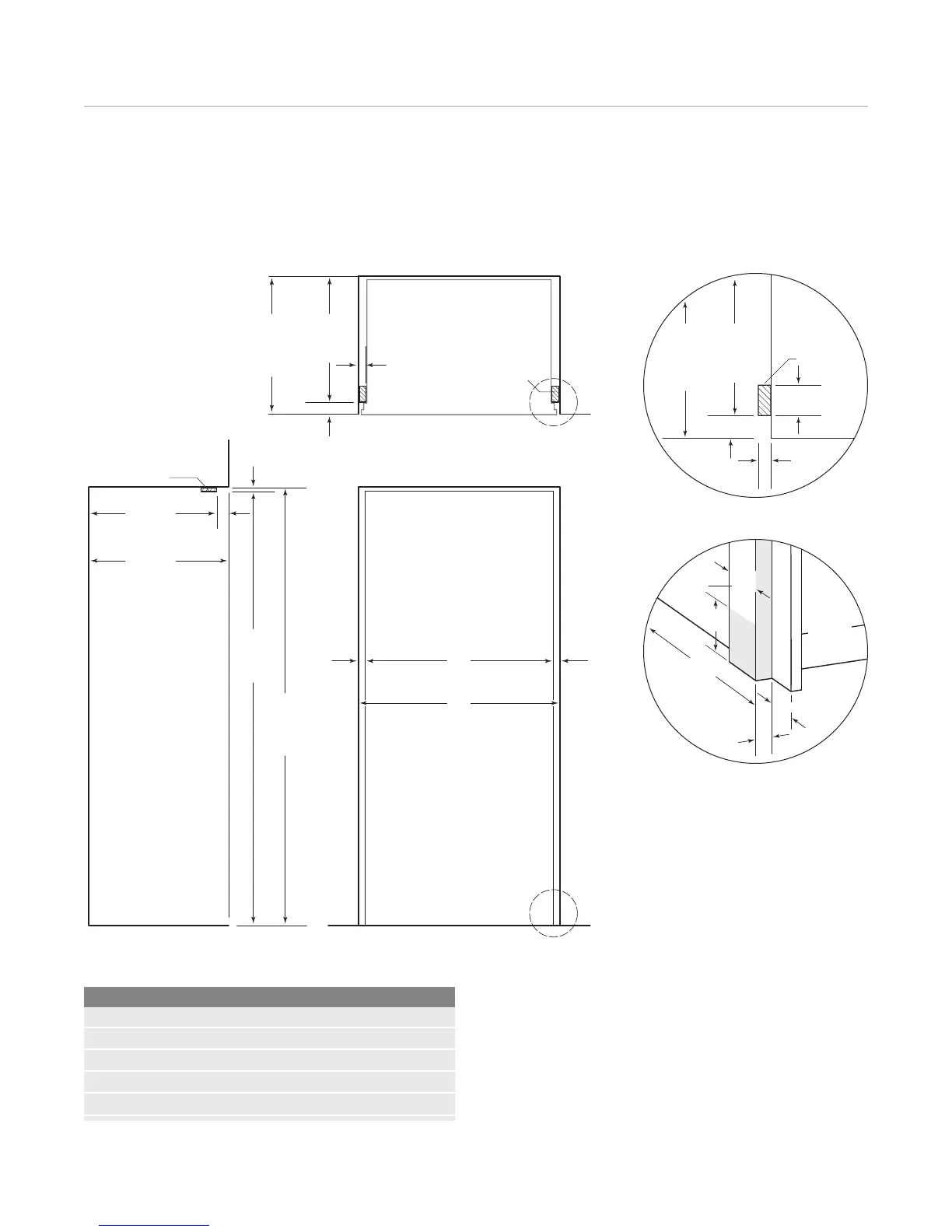

Flush Inset Opening Widths A B
ICBBI-30U and ICBWS-30 746 mm 792 mm
ICBBI-36U 902 mm 948 mm
ICBBI-36S 902 mm 948 mm
ICBBI-42S 1054 mm 1100 mm
ICBBI-48S, ICBBI-48SD & ICBBI-48SID 1206 mm 1252 mm
DETAIL A
DETAIL B
FRONT VIEW
A
WIDTH TO CLEAT
B
FLUSH INSET WIDTH
23
mm
23
mm
SIDE VIEW
2149
mm
FLUSH
INSET
HEIGHT
18 mm
620 mm
minimum
DEPTH TO CLEAT
675 mm
minimum
FLUSH INSET DEPTH
56
mm
2127
mm
HEIGHT
TO CLEAT
620 mm
minimum
DEPTH
TO CLEAT
675mm
minimum
FLUSH
INSET
DEPTH
TOP VIEW
56 mm
23
mm
CLEAT
CLEAT
Detail A
Detail B
23 mm
620 mm
minimum
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
675
mm
minimum
FLUSH
INSET
DEPTH
56 mm
620 mm
minimum
OPENING
DEPTH TO
CLEAT
23 mm
56 mm
CLEAT
SHADED
AREA
MUST BE
FINISHED
76 mm
typical
102
mm
76 mm
typical
23 mm
620 mm
minimum
OPENING
DEPTH
TO CLEAT
CLEAT
TOP VIEW
675
mm
minimum
FLUSH
INSET
DEPTH
56 mm
620 mm
minimum
OPENING
DEPTH TO
CLEAT
23 mm
56 mm
CLEAT
SHADED
AREA
MUST BE
FINISHED
76 mm
typical
102
mm
76 mm
typical
Built-In Models
FLUSH INSET INSTALLATION
Built-In Refrigeration 10
