2. DISASSEMBLY AND REASSEMBLY

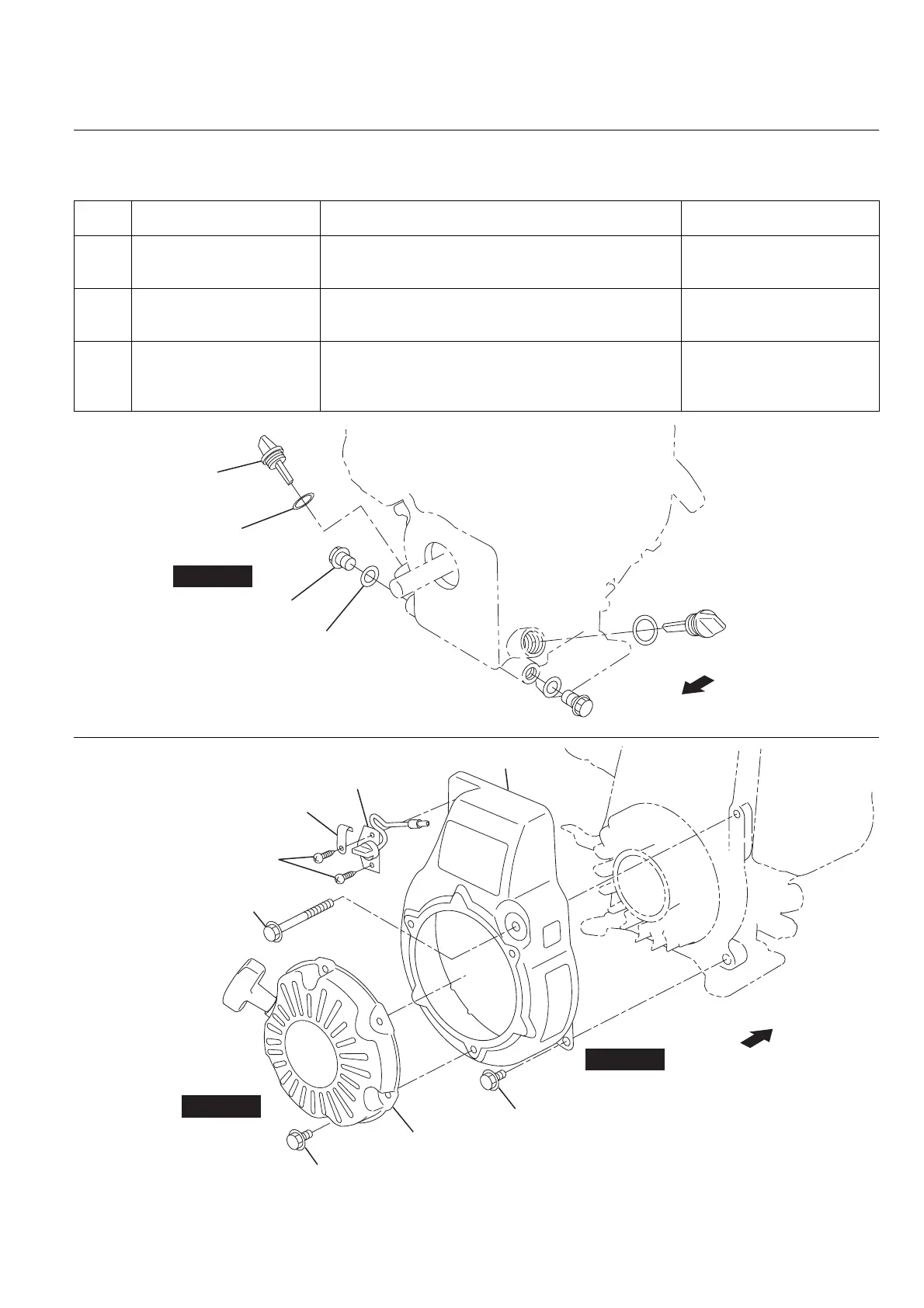

2-1 DISASSEMBLY PROCEDURES
Step Parts to remove Remarks and procedures Fasteners
1
Engine oil drain (1) Remove oil drain plug and drain oil.
(2) To discharge oil quickly, remove oil gauge.
14 mm spanner
2
Recoil starter Remove recoil starter from blower housing.
Be careful of pulling direction of starter rope.
M6 x 8 : 3 pcs.
10 mm box spanner
3
Blower housing Disconnect wire of stop switch first, then
remove blower housing from crankcase.
M8 x 16 : 3 pcs.
M8 x 50 : 1 pc.
12 mm box spanner
P.T.O. shaft side
M4 TAPPING SCREW : 2 pcs.
M8 x 50 FLANGE BOLT : 1 pc.
M8 x 16 FLANGE BOLT : 3 pcs.
M6 x 8 FLANGE BOLT : 3 pcs.
P.T.O. shaft side
To Next Page
