17 18

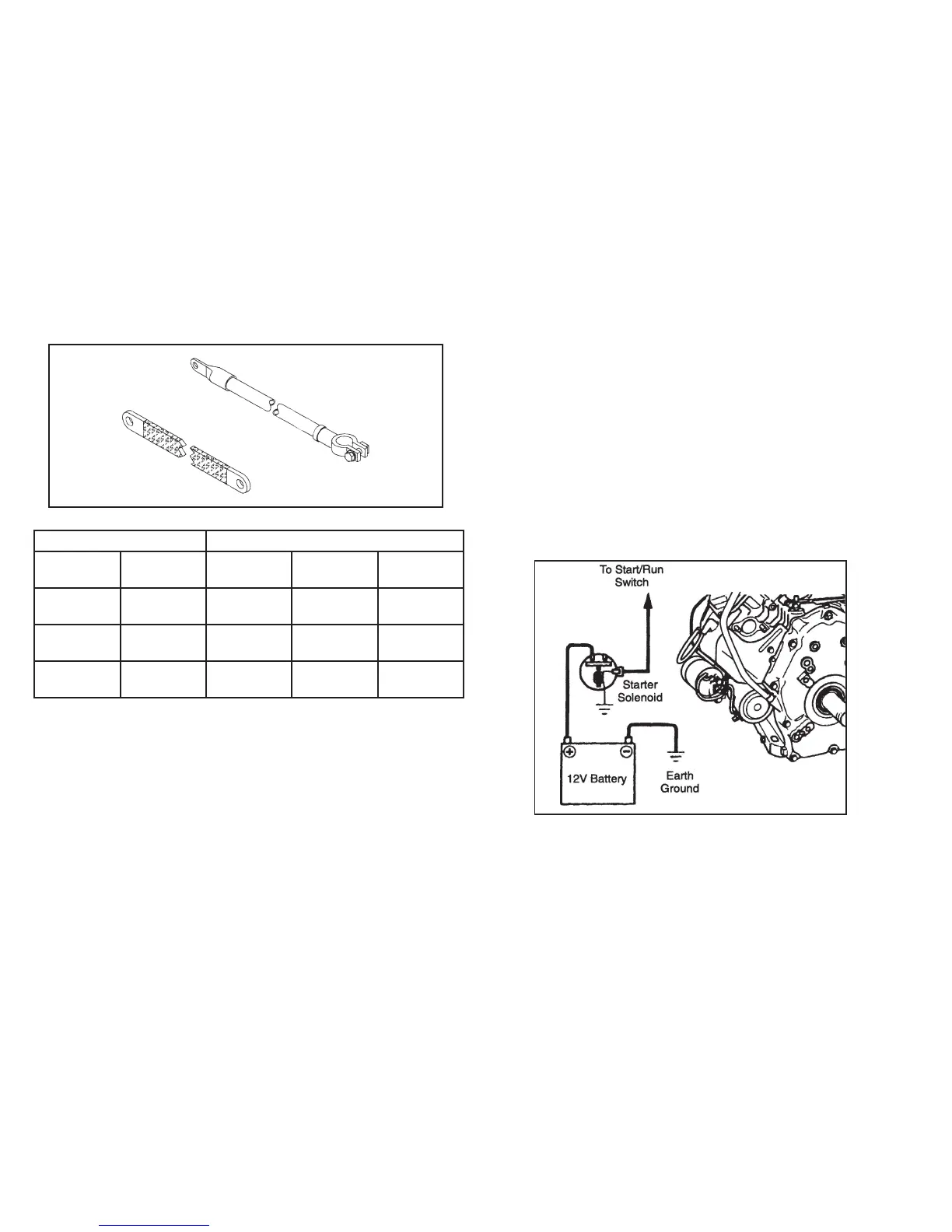

BATTERY CABLES
Installation
STARTER SWITCH
A customer supplied starter switch or key switch is recom-
mended for the starter motor. See table below for switch cable
recommendations.
WIRE GAUGE
CABLE
LENGTH
CABLE DIA.
AWG (BS)
BWG
SAE JIS
Less than 1.5 m
(4.5ft)
1.5mm
(1/16in)
14 16 AV1.25
1.5-3.0m
(4.5-9.8ft)
1.9mm
(5/64in)
12 14 AV2
3.0-5.0m
(9.8-16.4ft)
2.4mm
(1/10in)
10 13 AV3
WIRING
The engine is equipped with a wiring harness that connects with the
accessory.
1. Connect the positive (+) battery cable between the starter solenoid
and the battery.
2. Connect the ground strap between the negative (-) battery terminal
and a clean, bare metal grounding location on the engine.
3. Connect wires from starter key switch to starter solenoid and
ground.
To Next Page
