14
-

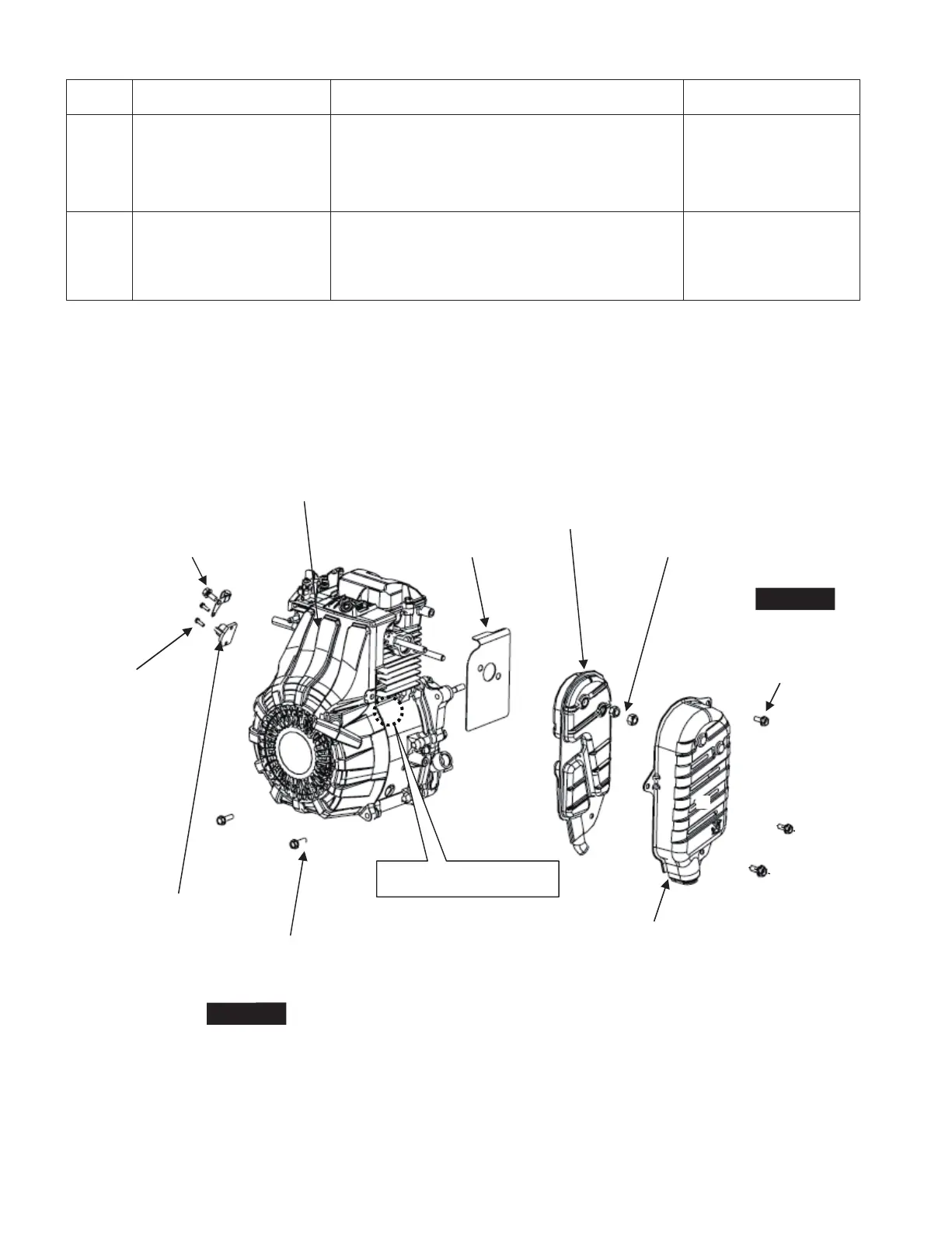

Step Parts to remove Remarks and procedures Fasteners
3
Muffler and Muffler cover (1) Remove the muffler cover from the muffler and
gasket(muffler)
(2) Remove the muffler from the cylinder head
Take care not to lose the gasket
*
Take care not to cut your hand with muffler gasket
10mm box spanner or
spanner
13mm box spanner
M6×18mm:3pcs
M6 nut:2pcs
4
Recoil starter Disconnect wire of stop switch first, then remove recoil
starter
10mm box spanner
M6×20mm:2pcs
M6×14mm:1pc
Do Not remove the plug.
RECOIL ASSY
MUFFLER COVER
MUFFLER
STOP SWITCH
M4 SCREW : 2 pcs.
M6 x 18
FLANGE BOLT : 3 pcs.
M6 x 20
FLANGE BOLT : 2 pcs.
M6 x 14
FLANGE BOLT : 1 pc.
GASKET
(MUFFLER)
M6 SELF LOCK NUT : 2pcs.
STEP 3
STEP 4
To Next Page
