Subaru EX series User Manual

4
US

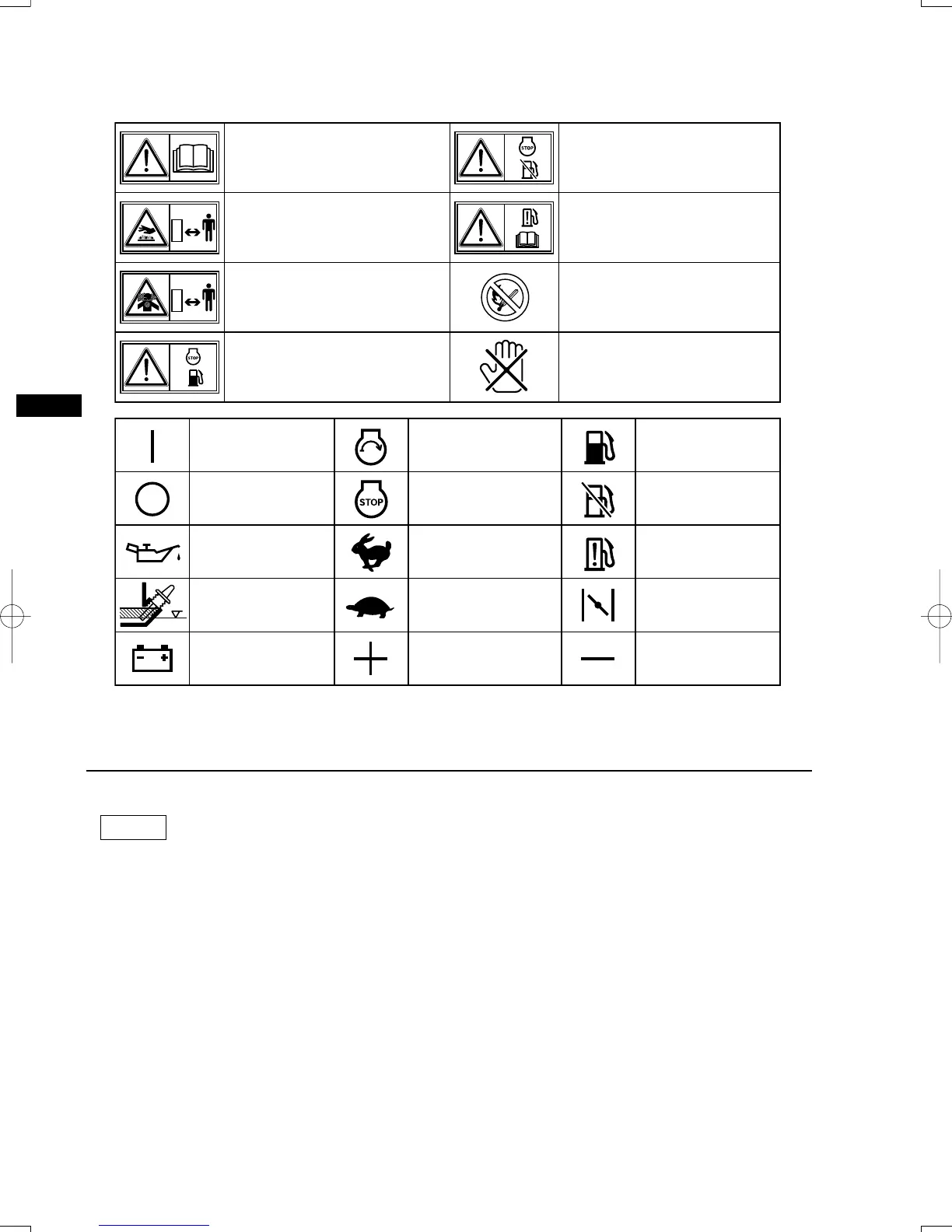

SYMBOLS
q SPARK PLUG
w EXHAUST OUTLET
e MUFFLER COVER
r AIR CLEANER
t FUEL TANK
y FUEL TANK CAP (FUEL FILLER)
u SPEED CONTROL LEVER
i RECOIL STARTER
o STARTER HANDLE
!0 CHOKE LEVER
2. COMPONENTS
(See Fig.
11
11
1)
!1 FUEL COCK
!2 FUEL CUP
!3 CARBURETOR
!4 P. T.O. SHAFT
!5 OIL GAUGE (OIL FILLER)
!6 OIL DRAIN PLUG
!7 ENGINE SERIAL NO. (STAMPING)
!8 ENGINE NAME LABEL (SPEC. No.)
!9 STOP SWITCH
@0 OIL SENSOR UNIT
NOTE Please refer to the illustrations on the back page of the front
cover or back cover for Fig.
1 1
1 1
1 to
88
88
8 indicated in the sentence.
Add oil
Engine oil
On (Run)
Engine start
(Electric start)
Engine stop
Fast
Slow
Fuel shut-off
Fuel system
failure / malfunction
Fuel (gasoline)
Choke
Battery
Stay clear of the hot surface.
Stop the engine before refueling.
Check for leakage
from hose and fittings.
Shutt off fuel valve
when the engine is not in use.
HOT, avoid touching the hot area.
Off (Stop)
Read manual.
Exhaust gas is poisonous.
Do not operate in an unventilated
room or enclosed area.
Fire, open flame and smoking
prohibited.
Plus ;
positive polarity
Minus ;
negative polarity
SY2241
EXseriesusEU2484.pmd 07.12.13, 0:51 AMPage 4 AdobePageMaker7.0J/PPC
