5 Electrical Installation User Manual
28

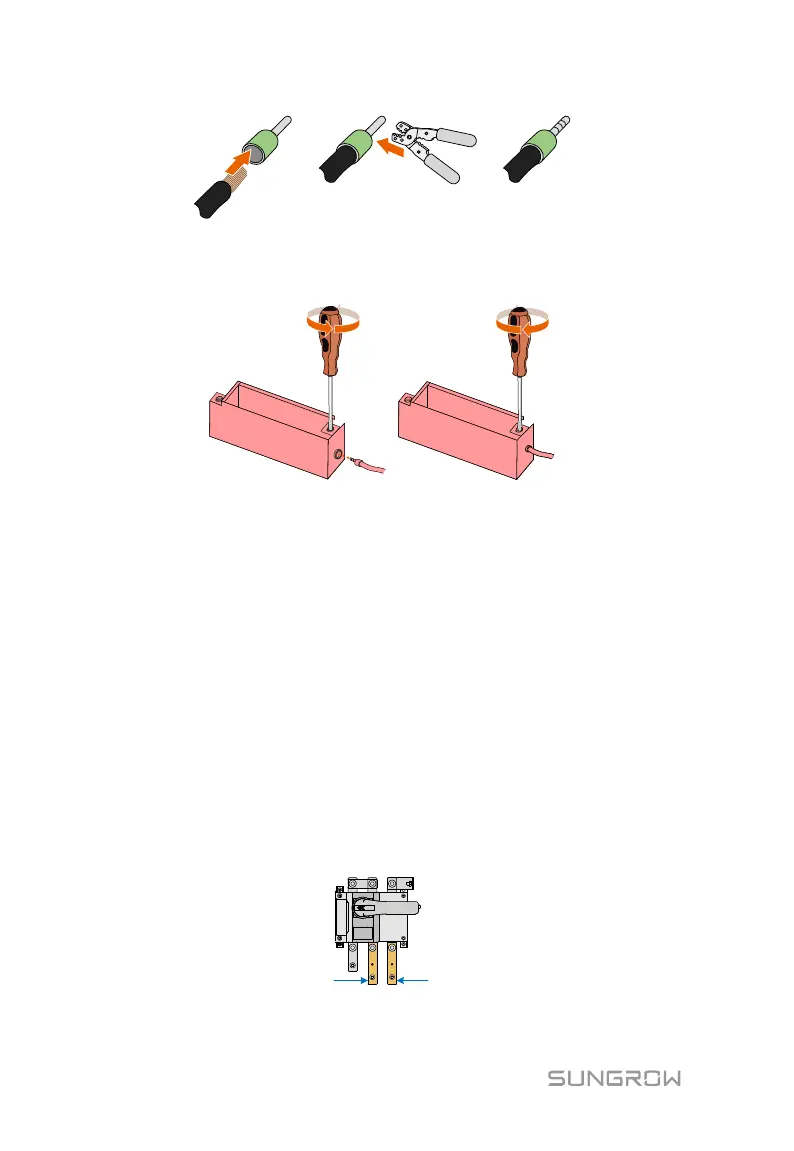

Step 6 As shown in the following figure, connect the terminal to the
corresponding terminal of the PVS.
Follow the same procedure to connect the rest of cables. Comb all the input
cables together with cable ties and firm them onto the cable support bar.
Appropriate cable bending space shall be ensured.
5.4.2 Output Connections
Preparation before Wiring
Unscrew the “OUTPUT DC（+）” and “OUTPUT DC（-）” waterproof terminal at
the DC input port of the PVS.
Open the protective cap of the output terminal.
Overview of Wiring Areas
The specification of the DC output wring terminal is related to load-break switch
brands. Specifically, the correspondences are as follows:
DC+(φ13)
DC-(φ13)
Fig. 5-4 Wiring terminals
