INSPECTION AND MAINTENANCE
84MM6-01E
4) Reinstall the drain plug with new gas-
ket. Tighten the plug with a wrench to
the specified torque.
Replace the Oil Filter
1) Using an oil filter wrench, turn the oil fil-
ter counterclockwise and remove it.
2) Using a clean rag, wipe off the mount-
ing surface on the engine where the
new filter will be seated.
3) Smear a little engine oil around the rub-
ber gasket of the new oil filter.
4) Screw on the new filter by hand until
the filter gasket contacts the mounting
surface.

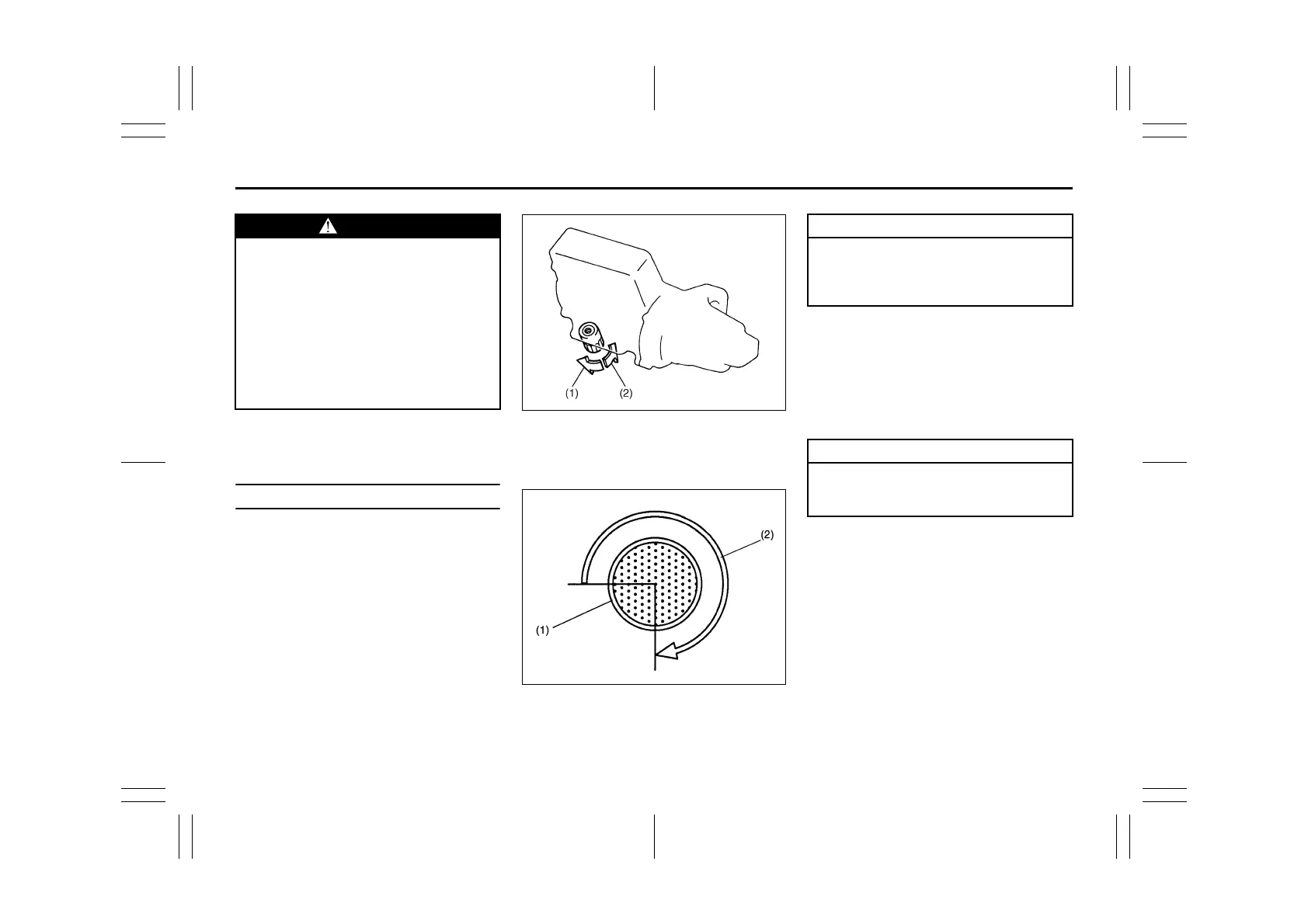

54G092
(1) Loosen
(2) Tighten
Tightening (viewed from filter top)
54G093
(1) Oil filter
(2) 3/4 turn
5) Tighten the filter specified turn from the
point of contact with the mounting sur-
face (or to the specified torque) using
an oil filter wrench.
Tightening torque for oil filter
3/4 turn or
14 Nm (1.4 kg-m, 10.3 lb-ft)
WARNING
(Continued)
To minimize your exposure to used
oil, wear a long-sleeve shirt and
moisture-proof gloves (such as dish-
washing gloves) when changing oil. If
oil contacts your skin, wash thor-
oughly with soap and water.
Launder any clothing or rags if wet
with oil.
Recycle or properly dispose of used
oil and filters.
NOTICE
To tighten the oil filter properly, it is
Important to accurately identify the
position at which the filter gasket
first contacts the mounting surface.
NOTICE
To prevent oil leakage, make sure
that the oil filter is tight, but do not
over-tighten it.
