Suzuki DF140 User Manual

WIRE
HARNESS
INSTALLATION
Contalned
parts
Item
Part
name Part
number
Q'ty
@
@
/6r
\r'
@
Monitor-tachometer
Monitor
gauge
wire
Trim
meter
wire
harness
lnstrument
wire
harness
34200-99E00
36682-92E00
36682-90J00
36630-92E00
1
1
1
1

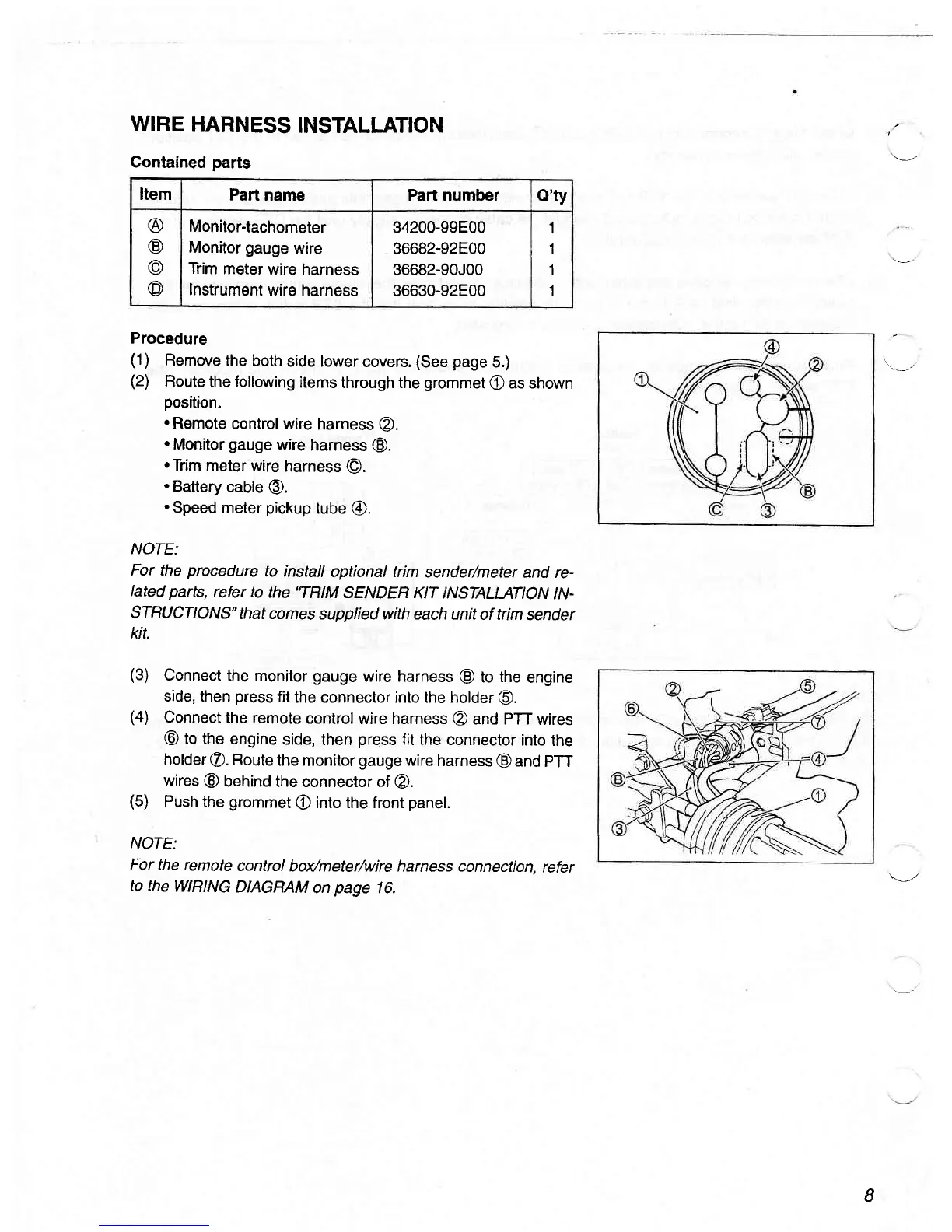

Procedure
(1)
Remove
the
both
side lower
covers.
(See
page
5.)
(2)
Boute
the following
items
through the
grommet
e
as shown
position.
.
Remote
control
wire
harness
@.
.
Monitor
gauge
wire
harness
@.
.Trim
meter wire
harness
@.
.Battery
cable
@.
.
Speed
meter
pickup
tube
@.
NOTE:
For
the
procedure
to install
optional trim
sender/meter
and re-
lated
parts,
refer to
the'TRIM
SENDER
KIT TNSTALLATION
lN-
STRUCTIONS"
that comes
supplied with each
unit of trim
sender
kit.
(3)
Connect
the monitor
gauge
wire harness
@
to
the
engine
side,
then
press
fit
the connector into the holder
@.
(4)
Connect
the
remote
control
wire harness
@
and PTT
wires
@
to
the
engine
side,
then
press
fit
the connector
into
the
holder
@.
Route
the
monitor
gauge
wire
harness
@
and
PTT
wires
@
behind
the connector ol
@.
(5)
Push
the
grommet
O
into the front
panel.
NOTE:
For the
remote
control
box/meter/wire harness connection,
refer
to
the
WIRINQ
DIAGRAM
on
page
16.
I

Suzuki DF140 Specifications

General

Engine Type	4-Stroke DOHC 16-Valve
Fuel Delivery System	Multi-Point Sequential Electronic Fuel Injection
Ignition System	Fully-transistorized
Starting System	Electric
Steering	Remote
Gear Ratio	2.59:1
Trim Method	Power Trim and Tilt
Cylinder	4
Alternator Output	12V 40A
Warranty	3 years
Displacement	2044 cc
Bore x Stroke	86 x 88 mm
Maximum Output	103 kW (140 PS)
Full Throttle RPM Range	5600 - 6200 RPM
Shaft Length	L: 508 mm, X: 635 mm
