NOTICE
If a new fuse blows in a short time after instal-
lation, you may have a major electrical system
problem.
Consult your SUZUKI marine dealer.

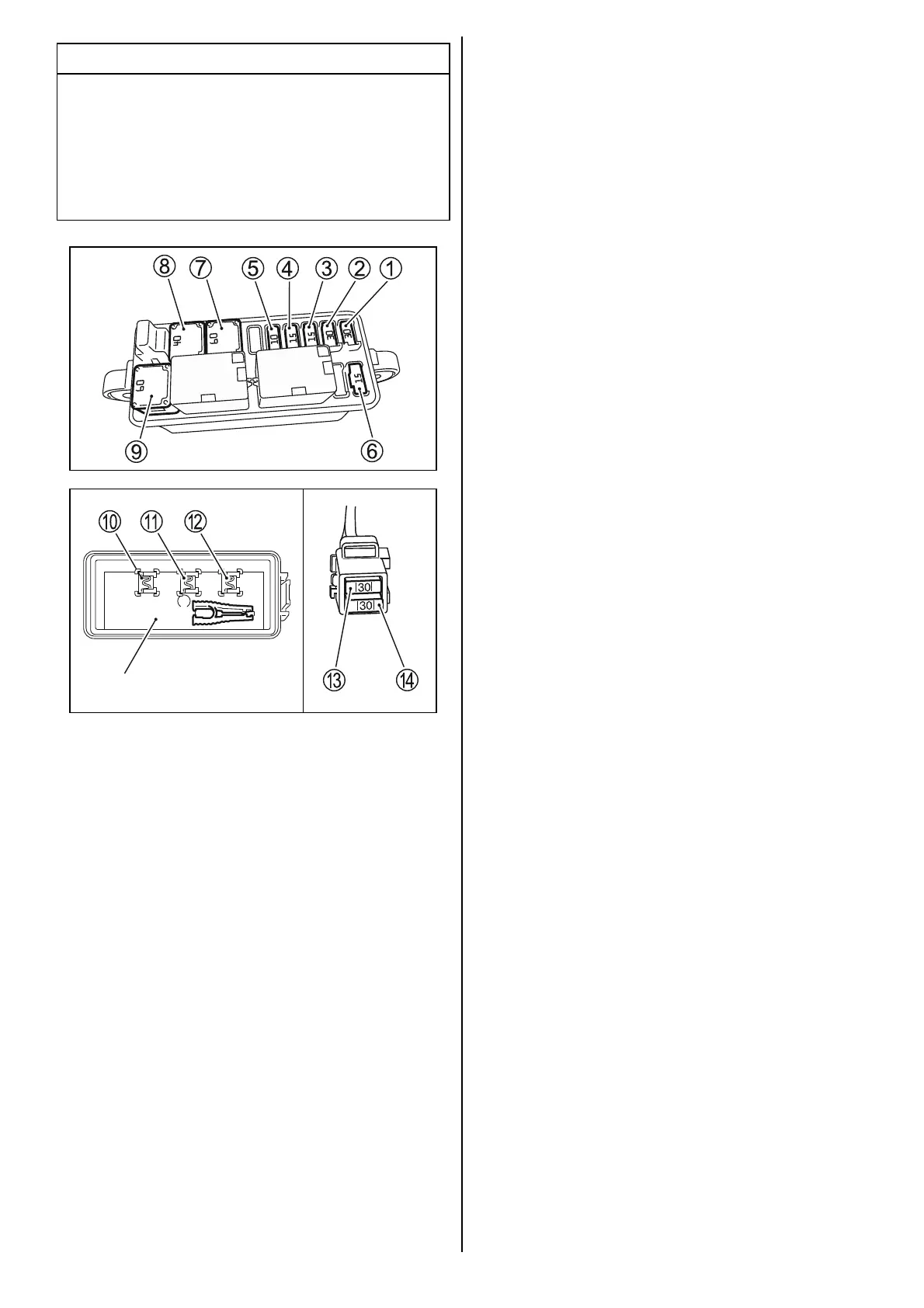

Fuse box cover
1 Starter motor relay fuse: 30 A
2 Ignition coil/Injector/Engine control module/
High pressure fuel pump fuse: 30 A
3 Throttle valve fuse: 15 A
4 Shift actuator fuse: 15 A
5 PTT switch fuse: 10 A
6 Low pressure fuel pump fuse: 15 A
7 Main fuse: 60 A
8 Isolator select fuse: 40 A
9 Spare fuse: 60 A
0 Spare fuse: 30 A
A Spare fuse: 15 A
B Spare fuse: 10 A
C Spare fuse: 30 A
D Sub battery cable fuse: 30 A
NOTE:
Spare fuses
0, A and B are provided for the
back of fuse box cover.
