7-32
INSPECTION AND MAINTENANCE
60MK0-14E

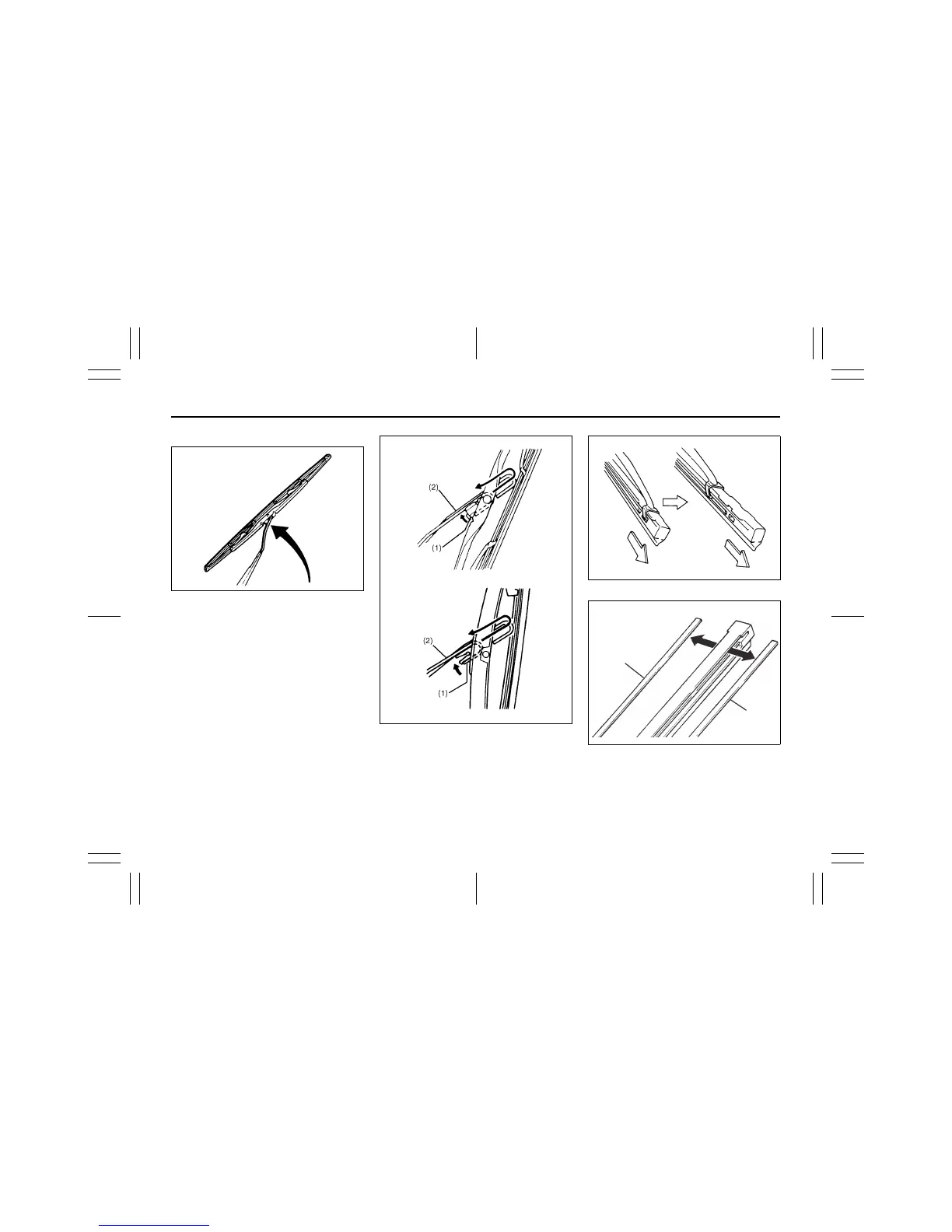

For windshield wipers:
70G119
1) Hold the wiper arm away from the win-
dow.
54G130
2) Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
3) Unlock the lock end of the wiper blade
and slide the blade out as shown.
60A260
71LMT0708
(3) Retainer
EXAMPLE
EXAMPLE
EXAMPLE
(3)
(3)
EXAMPLE
