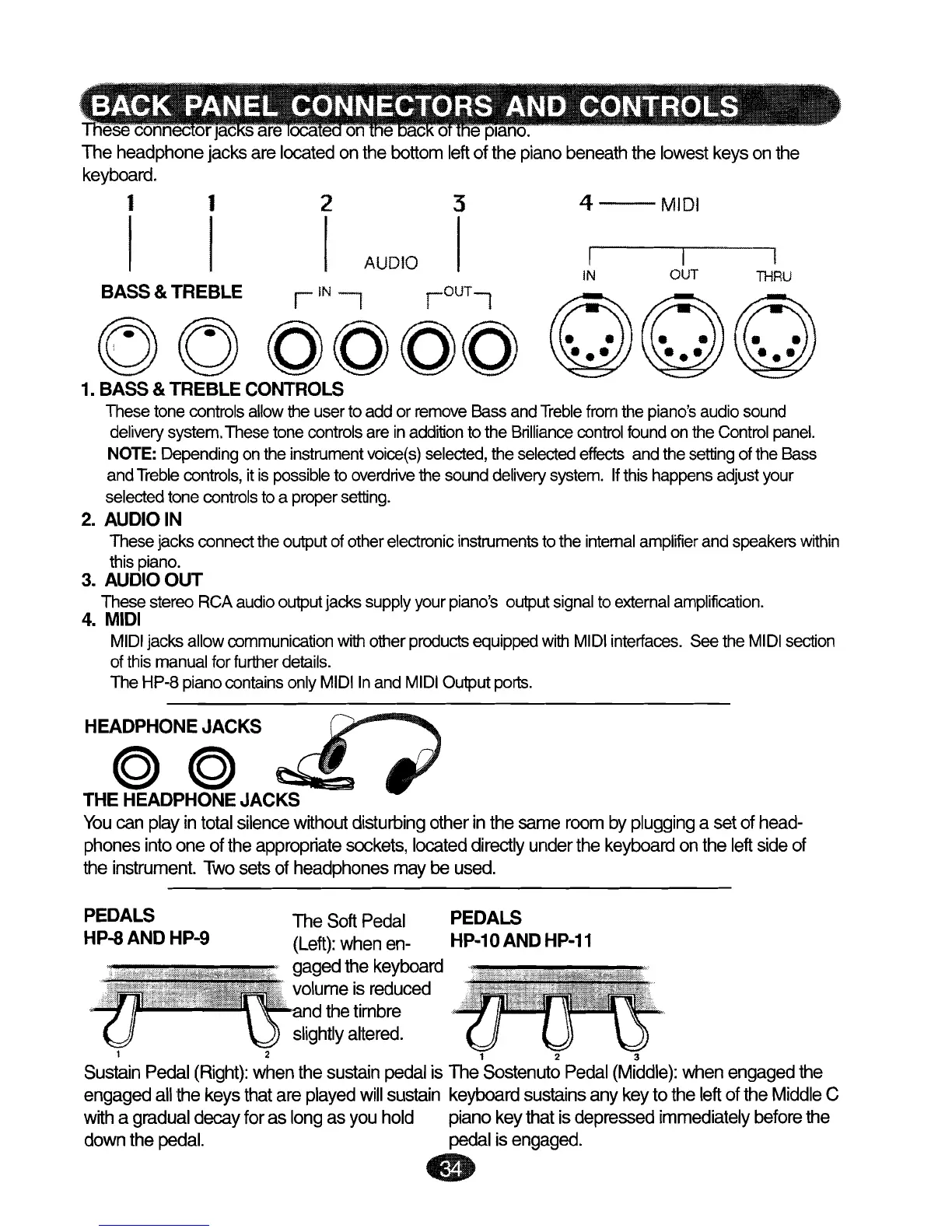

1. BASS & TREBLE CONTROLS
Thesetone controls allow the userto addor remove Bassand Treble from the piano's audio sound
delivery system.Thesetone controls arein addition tothe Brilliance control found onthe Control panel.
NOTE: Depending onthe instrument voice(s) selected, the selected effects andthe setting ofthe Bass
and
Treble controls, it is possible to overdrive thesound delivery system. Ifthis happens adjustyour
selected tone controls to a proper setting.
2. AUDIO IN
Thesejacksconnect the output ofother electronic instruments tothe intemal amplifier and speakers within
this piano.
3. AUDIO OUT
These stereo RCA audio outputjacks supply your piano's output signal to external amplification.
4. MIDI
MIDI jacksallow communication withother products equipped with MIDI interfaces. Seethe MIDI section
ofthis manual for further details.
TheHP-8piano contains only MIDI Inand MIDI Output ports.
HEADPHONE JACKS
@@
THE HEADPHONE JACKS
You can play in total silence without disturbing other inthe same room by plugging a setof head-
phones intooneofthe appropriate sockets, located directly under the keyboard onthe left side of
the
instrument. Two setsof headphones maybe used.
PEDALS
The Soft Pedal PEDALS
HP-8 AND HP-9
(Left): when en- HP-10 AND HP-11
gaged the keyboard
volume is reduced
ndthe timbre
_ slightlyattered.
2 1 2 3
Sustain Pedal (Right): when the sustain pedal is The Sostenuto Pedal (Middle): when engaged the
engaged allthe keys that are played will sustain keyboard sustains anykeyto theleftofthe Middle C
with a gradual decay foras long as you hold piano keythatis depressed immediately before the
down the pedal. pedal is engaged .
•
