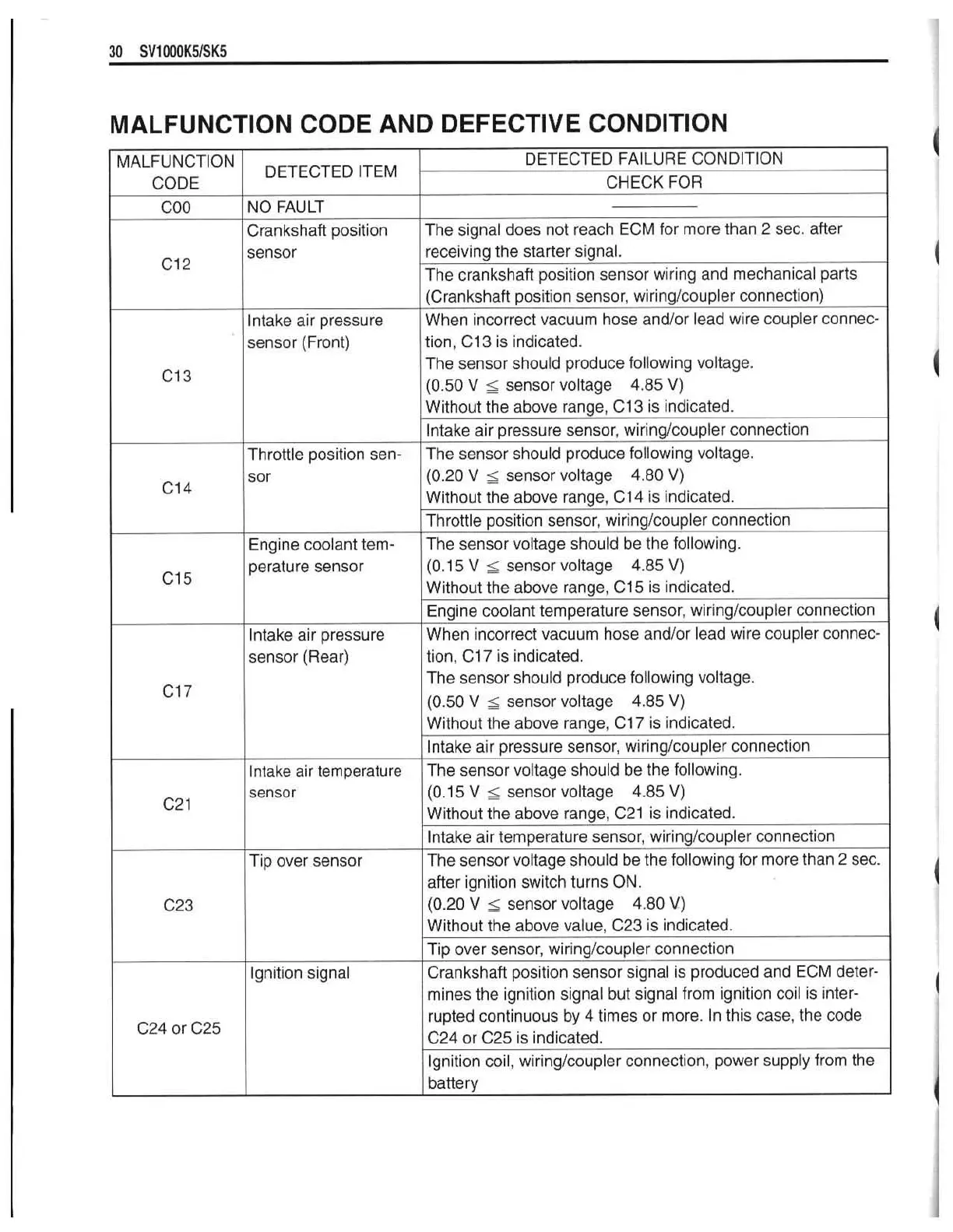

MALFUNCTION CODE AND DEFECTIVE CONDITION
DETECTED FAILURE CONDlTlON
CHECK FOR
The signal does not reach ECM for more than 2 sec, after
receiving the starter signal.
The crankshaft position sensor wiring and mechanical parts
(Crankshaft position sensor, wiringlcoupler connection)
When incorrect
vacuum hose andlor lead wire coupler connec-
tion, C13 is indicated.
The sensor should produce following voltage.
(0.50 V 5 sensor voltage
4.85 V)
Without the above range, C13 is indicated.
lntake air
pressure sensor, wiring/coupler connection
The sensor should produce following voltage.
(0.20 V 2 sensor voltage
4.80 V)
Without the above range, C14 is indicated.
Throttle position sensor, wiringlcoupler
connection
The sensor voltage should be the following.
(0.15 V 5 sensor voltage 4.85 V)
Without the above range, C15 is indicated.
Engine coolant temperature sensor,
wiringlcoupler connection
When incorrect vacuum hose
andlor lead wire coupler connec-
tion, C17 is indicated.
The sensor should
produce following voltage.
(0.50 V 5 sensor voltage
4.85 V)
Without the above range, C17 is indicated.
l ntake air pressure sensor, wiringlcoupler connection
The sensor
voltage should be the following.
(0.15
V 2 sensor voltage
4.85 V)
Without the above range, C21 is indicated.
Intake air temperature sensor, wiringlcouplex connection
-
The sensor voltage should be the following for more than 2 sec.
after ignition switch turns ON.
(0.20 V 5 sensor voltage
4.80 V)
Without the above value, C23 is indicated.
Tip over sensor, wiringlcoupler connection
~
mines the ignition signal but signal from ignition coil is inter-
rupted continuous
by 4 times or more. In this case, the code
C24 or C25 is indicated.
Ignition coil, wiringlcoupler connection, power supply from the
battery
MALFUNCT'ON 1 DETECTED ITEM
CODE
COO 1 NO FAULT
C12
Crankshaft position
sensor
lntake air pressure
sensor (Front)
C14
Throttle position
sen-
sor
C15
Engine coolant tern-
perature sensor
C17
lntake air pressure
sensor
(Rear)
C2 I
lntake air temperature
sensor
I Tip over sensor
C23
C24 or C25
--
Ignition signal
