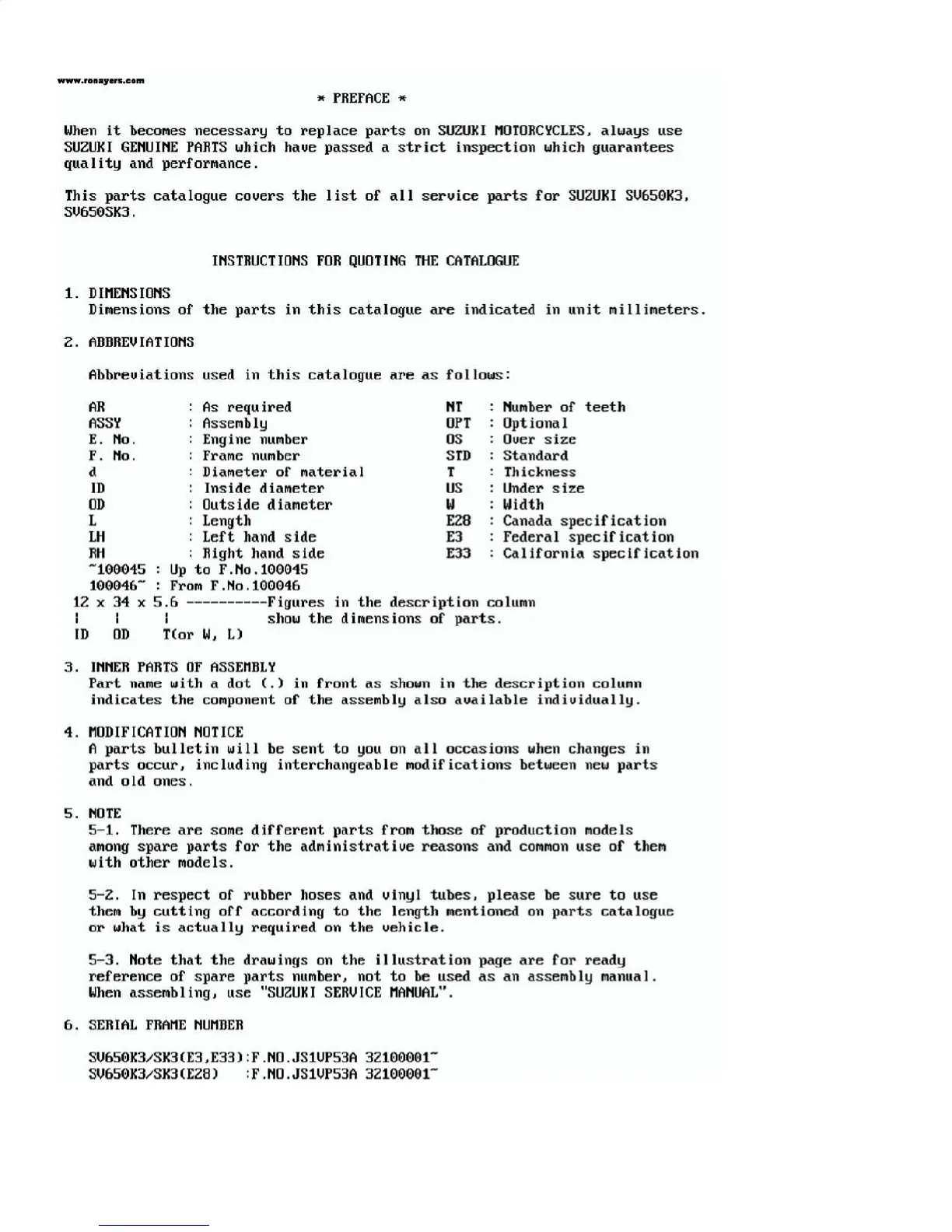

Suzuki SV650/S Service Manual

~~~ ~~ ~~~~ ~~~ ~~ ~~~
~ ~~~~~~~ ~
~~~~ ~~ ~~~~~~~ ~~~~~~~~~ ~~ ~~~~~~~ ~~~~~ ~~ ~~~~~~ ~~~~~~~~~~~~ ~~~~~~ ~~~
~~~~~~ ~~~~~~~ ~~~~~ ~~~~~ ~~~~ ~~~~~~ ~~~~~~~~ ~~~~~~~~~~ ~~~~~ ~~~~~~~~~~
~~~~~~~ ~~~ ~~~~~~~~~~~ ~
~~~~ ~~~~~ ~~~~~~~~~ ~~~~~~~~~~ ~~~~ ~~ ~~~ ~~~~~~~ ~~~~~ ~~~ ~~~~~~~~~~~~~~~
~~~~~~~~ ~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~ ~ ~~~~~~~~~~
~~~~~~~~~~ ~~ ~~~ ~~~~~ ~~ ~~~~ ~~~~~~~~~ ~~~ ~~~~~~~~~ ~~ ~~~~~~~~~~~~~~~~ ~
~ ~ ~~~~~~~~~~~~~
~~~~~~~~~~~~~ ~~~~ ~~ ~~~~ ~~~~~~~~~ ~~~~~~~~~~~~~~ ~
~~
~
~~~~~~~~~~~
~
~~
~
~~~~~~~~~~~~~~~~~
~~~~
~
~~~~~~~~
~
~~~ ~ ~~~~~~~~
~ ~~~~ ~
~
~~~~~~~~~~~~~
~
~~
~
~~~~~~~~~
~ ~~~~ ~
~
~ ~~~~~~~~~~~~
~
~~~
~
~~~~~~~~
~
~
~ ~~~~~~~~~~~~~~~~~~~~
~
~
~
~ ~~~~~~~~~
~~
~
~ ~~~~~~~~~~~~~~~
~
~~
~
~ ~~~~~~~~~~
~~
~
~~~~~~~~~~~~~~~~
~
~
~
~ ~~~~~
~
~
~~~~~~
~
~~~
~
~~~~~~ ~~~~~~~~~~~~~
~~
~
~ ~~~~~~~~~~~~~~
~
~~
~
~~~~~~~~~~~~~~~~~~~~~
~~
~
~ ~~~~~~~~~~~~~~~
~
~~~ ~ ~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~ ~ ~~~~~~~ ~~~ ~~~~~~~
~~~~~~~ ~ ~~~~~~ ~~~~ ~~~~~~~
~~~~~~~~~~~ ~~ ~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~ ~ ~~~~ ~
~ ~
~
~~
~
~~~~~~~~~~
~ ~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~ ~~~~~~~~~~ ~ ~~ ~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~
~ ~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~ ~
~ ~~~~~~
~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~ ~
~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~
~~~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~
~ ~~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~~~~ ~~ ~~~ ~~~~~~~~~~~~~~~~~~~~
~~~~~~~~~~~~~~~~
~
~~ ~~~ ~~~~~~~~~~~~~~~~~~~~

Suzuki SV650/S Specifications

General

Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.2:1
Fuel System	Fuel injection
Transmission	6-speed constant mesh
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Engine Type	645cc, 4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2140 mm
Overall Width	760 mm
Overall Height	1090 mm
Wheelbase	1445 mm
Seat Height	785 mm
Curb Weight	198 kg
Fuel Tank Capacity	14.5 L
Ground Clearance	135 mm
