7E-4
DIFFERENTIAL
DISASSEMBLING
OF
LSD
CASE
ASSEMBLY
*
: Refer to
FOREWORD.
1.
Differential
left
case
2.
Differential
right
case
3.
Screw
4.
Outer
plate (friction
Plate)
5.
lnner
plate
(friction
disk)
6.
Pressure
ring
7. Side
gear
8.
Pinion
shaft
9.
Pinion
10. lnner
shim
(sPring
disk)
1 1
. Outer
shim
(sPring
Plate)
5
11
/1

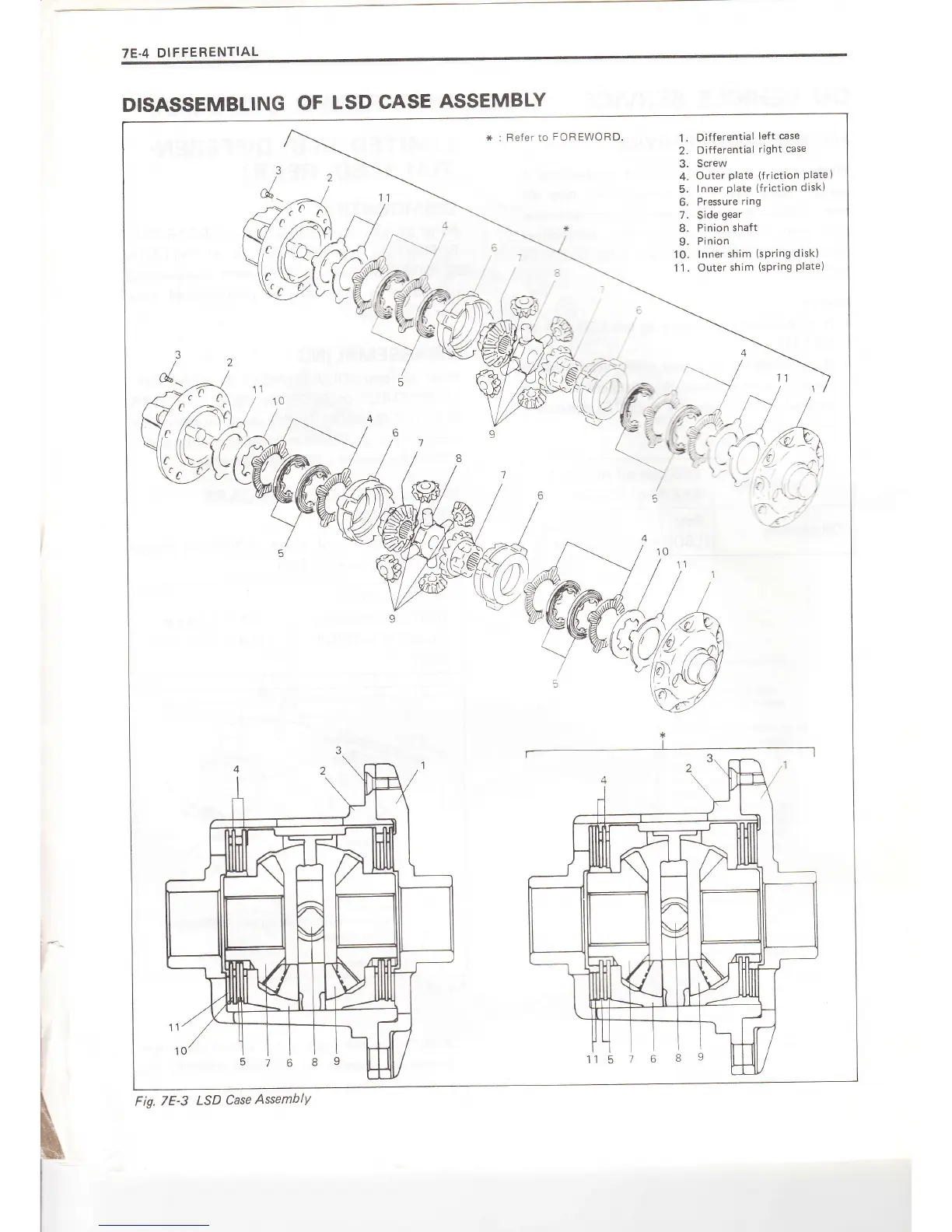

Fig.
7E-3
LSD
Case
AssemblY
t
