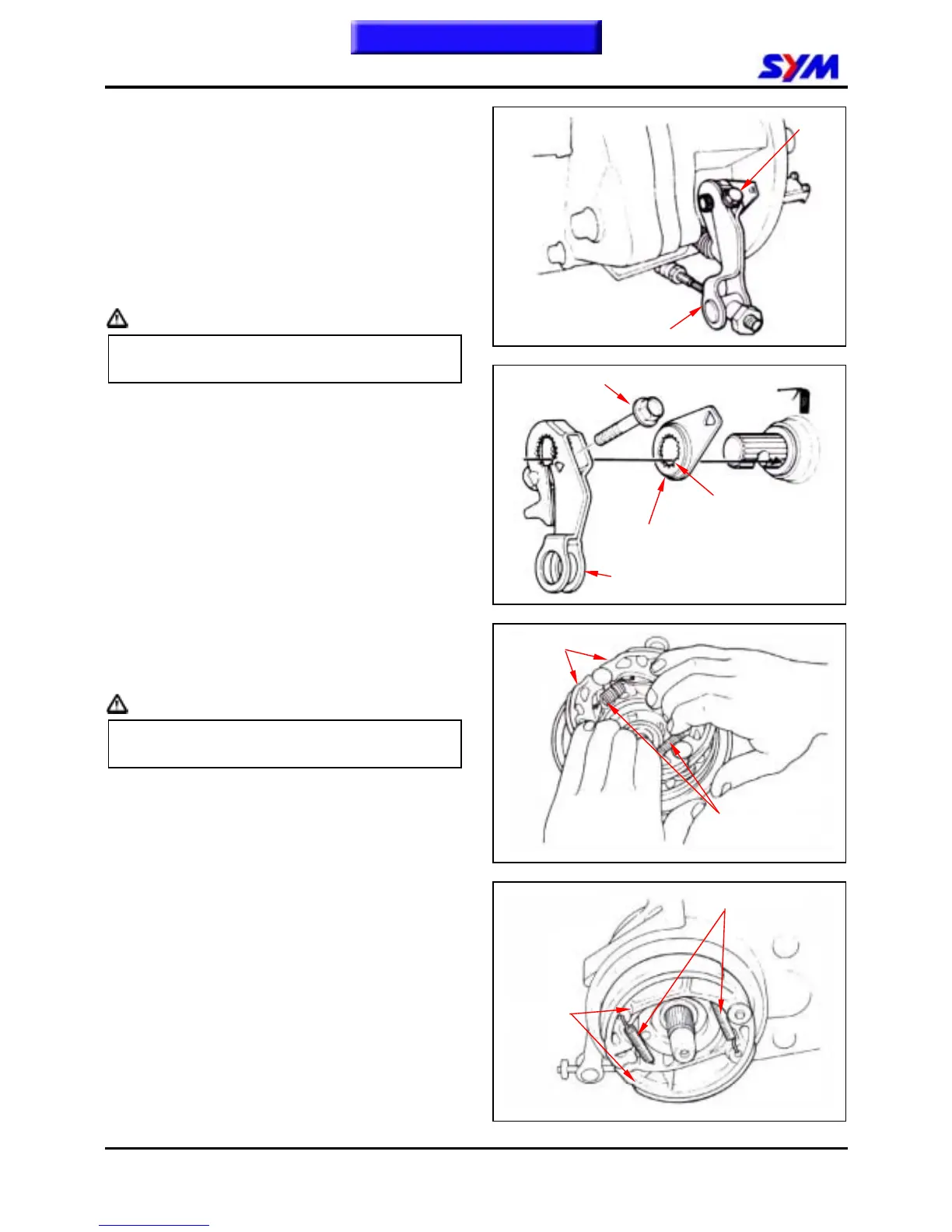

11. BRAKE SYSTEM
11-12
Installation
Apply with a thin coat of grease to the brake cam
and the anchor pin.
Install brake cam.
Never allow brake linings to be contaminated by
oil or grease.
Wipe off the excessive grease from brake cam
and the anchor pin.
Caution
Brake efficiency will be reduced if brake linings
is contaminated by oil or grease.
Install the brake cam and arm after aligning it
with the punched point.
Tighten the bolts and nuts to specified torque:
Torque value: 0.5kgf-m
Use a brake cleaner to clean brake hub and
replace the two brake shoes if brake linings are
contaminated.
Caution
Brake efficiency will be reduced if brake linings
is contaminated by oil or grease.
Install spring onto the brake shoes.
Install the brake shoes to the brake panel one
after one, and make sure the shoe springs are in
correct position.
Install the wheel.
Rear brake arm
Brake shoes
Brake shoes
Brake shoe spring
Bolt
Bolt
Brake arm
Brake arm big indent
Wear indicator plate
Brake shoe spring
