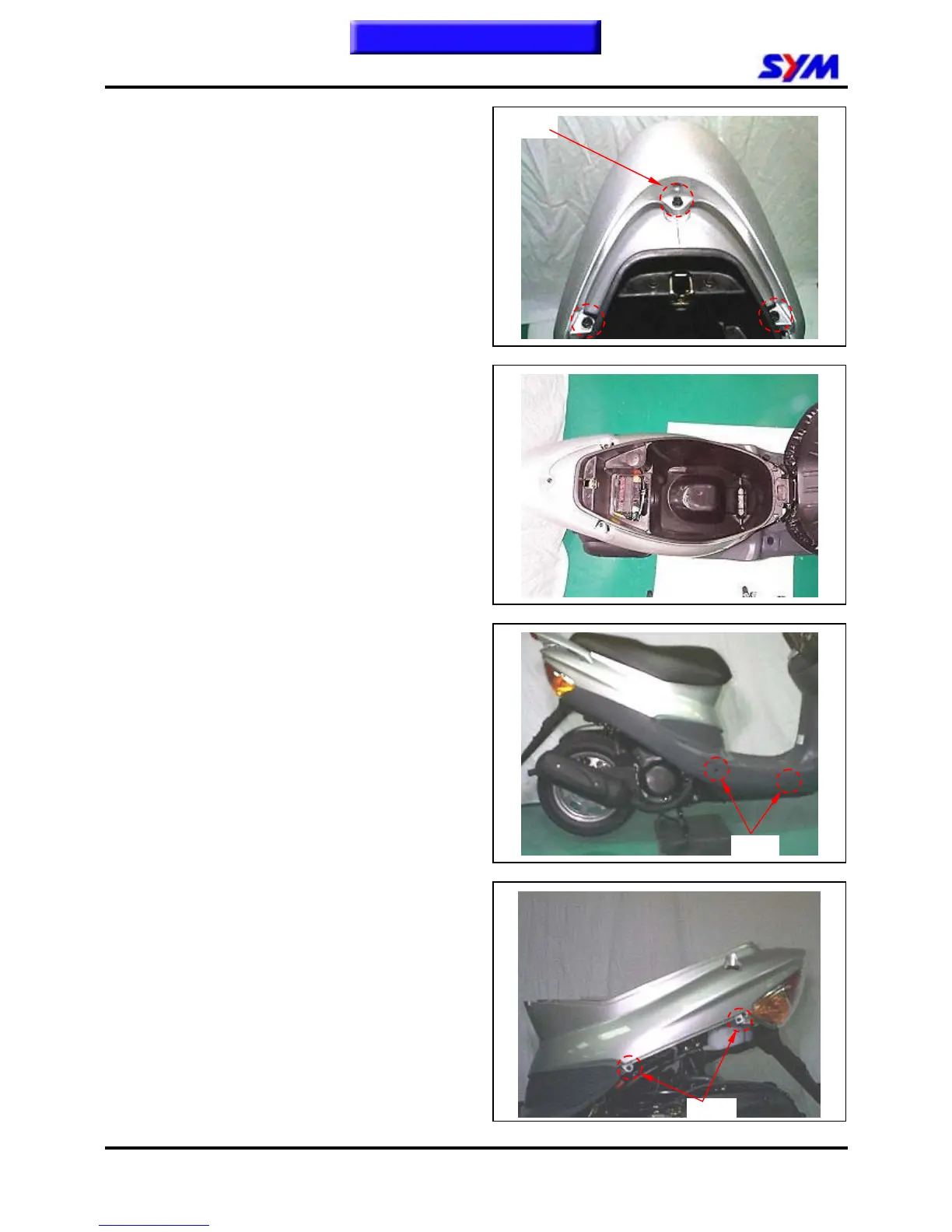

12. BODY COVER
12-6
Body Cover
1. Removal:
y
Remove 3 bolts from rear carrier, and
then remove rear carrier.
y
Remove the luggage box.
y
Remove 4 screws from the two side cover,
and then remove the side cover.
y
Remove 4 screws from the both sides.
Screws
Bolts
Screws
