| Product description
2 Product description
2.1 Internal components Topvex SR 03-06

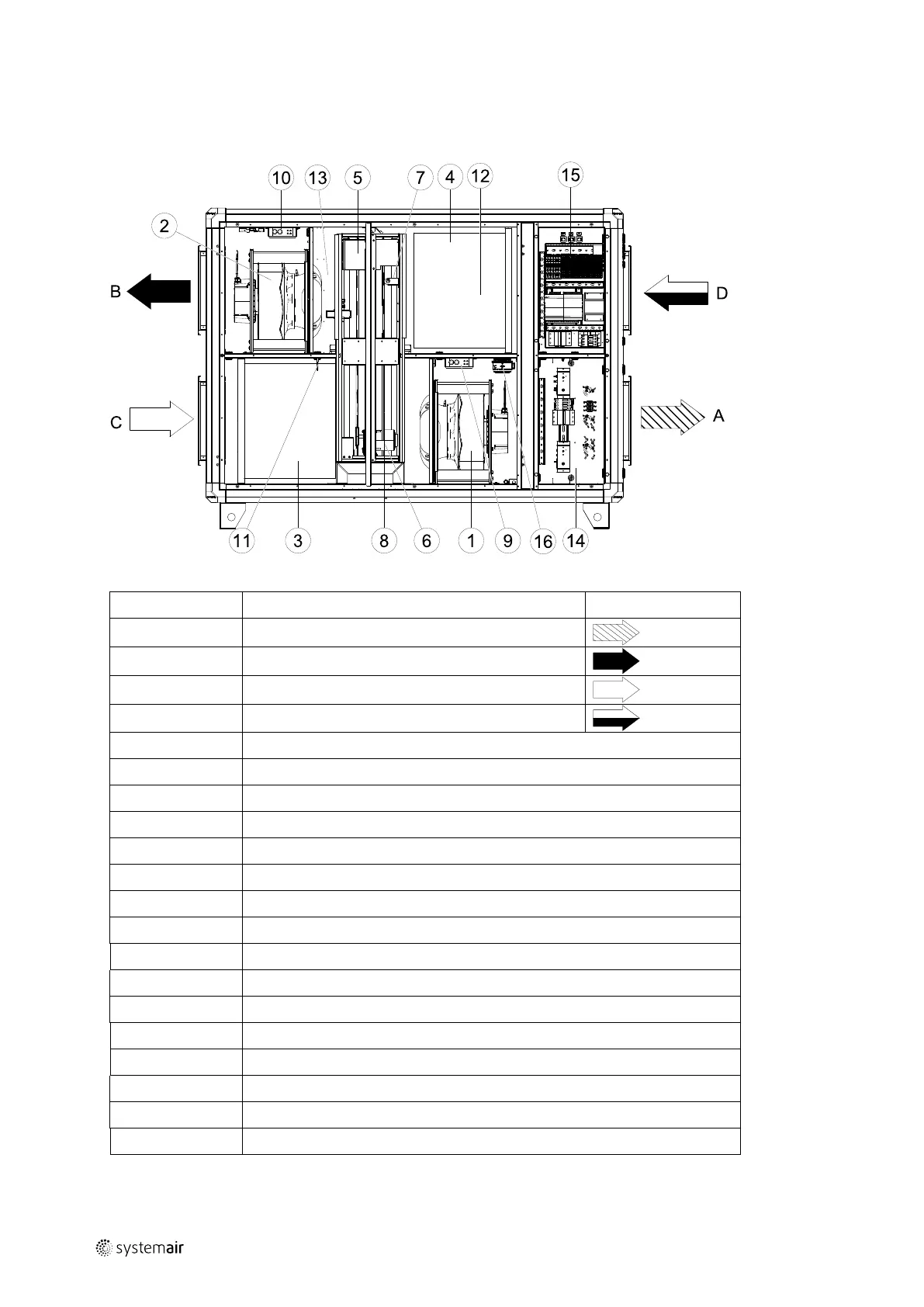

Fig. 1 Internal components with air connections symbols (Drawn as a right hand unit)
Position Description
Symbol
A
Connection supply air
B
Connection exhaust air
C
Connection outdoor air
D Connection extract air
1
Fan supply air
2 Fan extract air
3
Filter supply air
4
Filter extract air
5
Heat exchanger
6 Rotor motor
7
Rotation guard (sensor)
8
Extra driving belt
9
Pressure sensor supply air fan/extract air filter
10
Pressure sensor extract air fan/supply air filter
11
Temp. sensor outdoor air
12
Temp. sensor extract air
13
Temp. sensor exhaust air
14
Electrical re-heater battery
1
15
Electrical connection box
16
Air flow sensor
1
1
Only valid for units with electrical re-heater battery
151618 | A002
