SystemAir Topvex TR04 Installation Instructions

20
| Installation

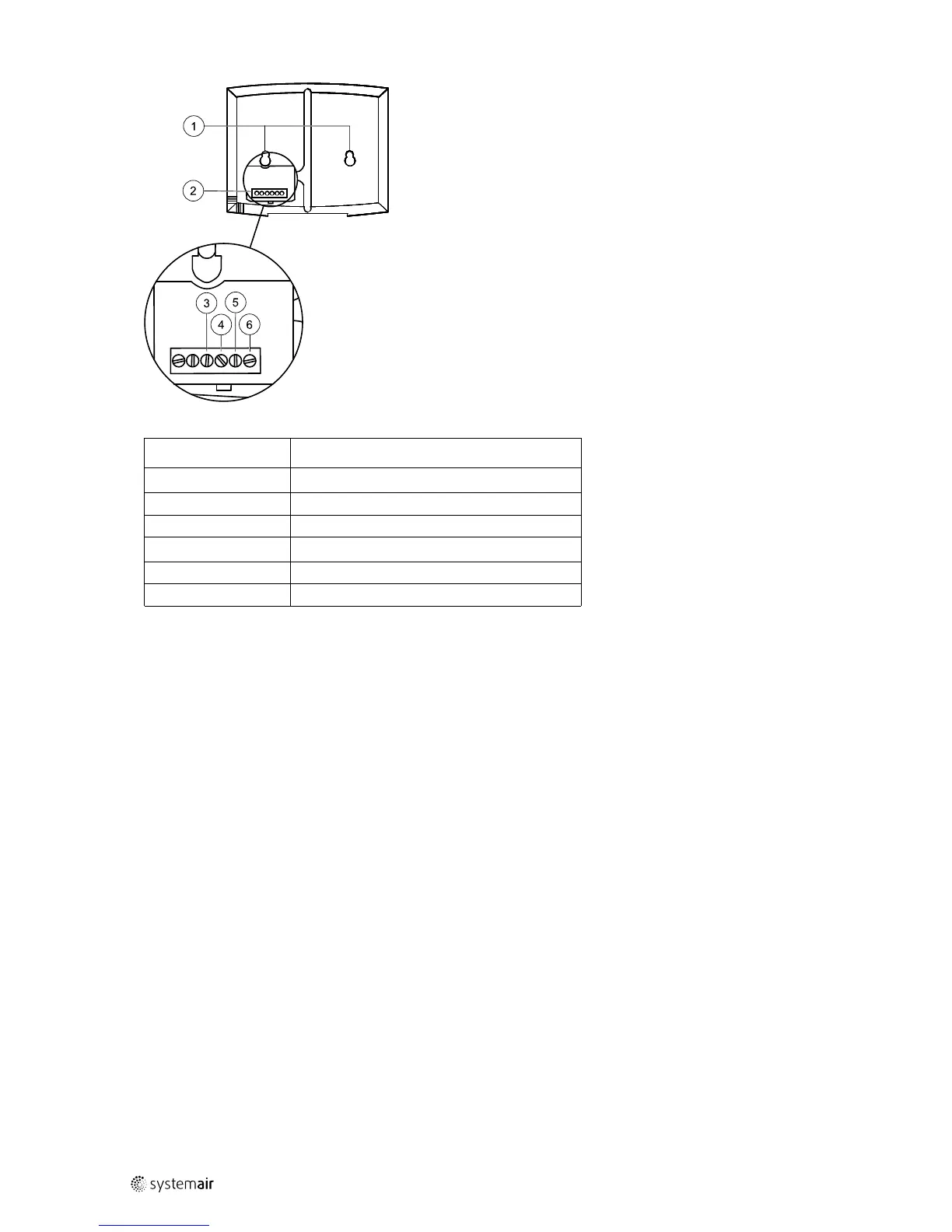

Fig. 16 Control panel wire connections
PPoossiittiioonn
DDeessccrriippttiioonn
1
Mounting holes
2
Connection block
3
Connection to brown cable
4
Connection to yellow cable
5
Connection to white cable
6
Connection to black cable
4.7 Additional Equipment
For information concerning additional external equipment such as valve actuators, motorized dampers, E-tool, roof
units, wall grilles etc. see technical catalogue and their enclosed instructions.
For electrical connections of external components see enclosed wiring chart.
124454 | A003
