Model C723
Controls, Systems and Operations
Beater Motor & Belt Removal
Before service can be performed on the right side
beater motor or belt, the left side beater motor and
belt must be removed, per the following steps.
Step 1
Remove the back and side panels.
Step 2
Disconnect the wiring harness plug from the beater
motor.
Step 3
Remove the four mounting bolts from the beater
motor assembly plate. Leave the motor and plate
connected.
Step 4
Remove the beater motor belt.
Step 5
Set the beater motor aside.

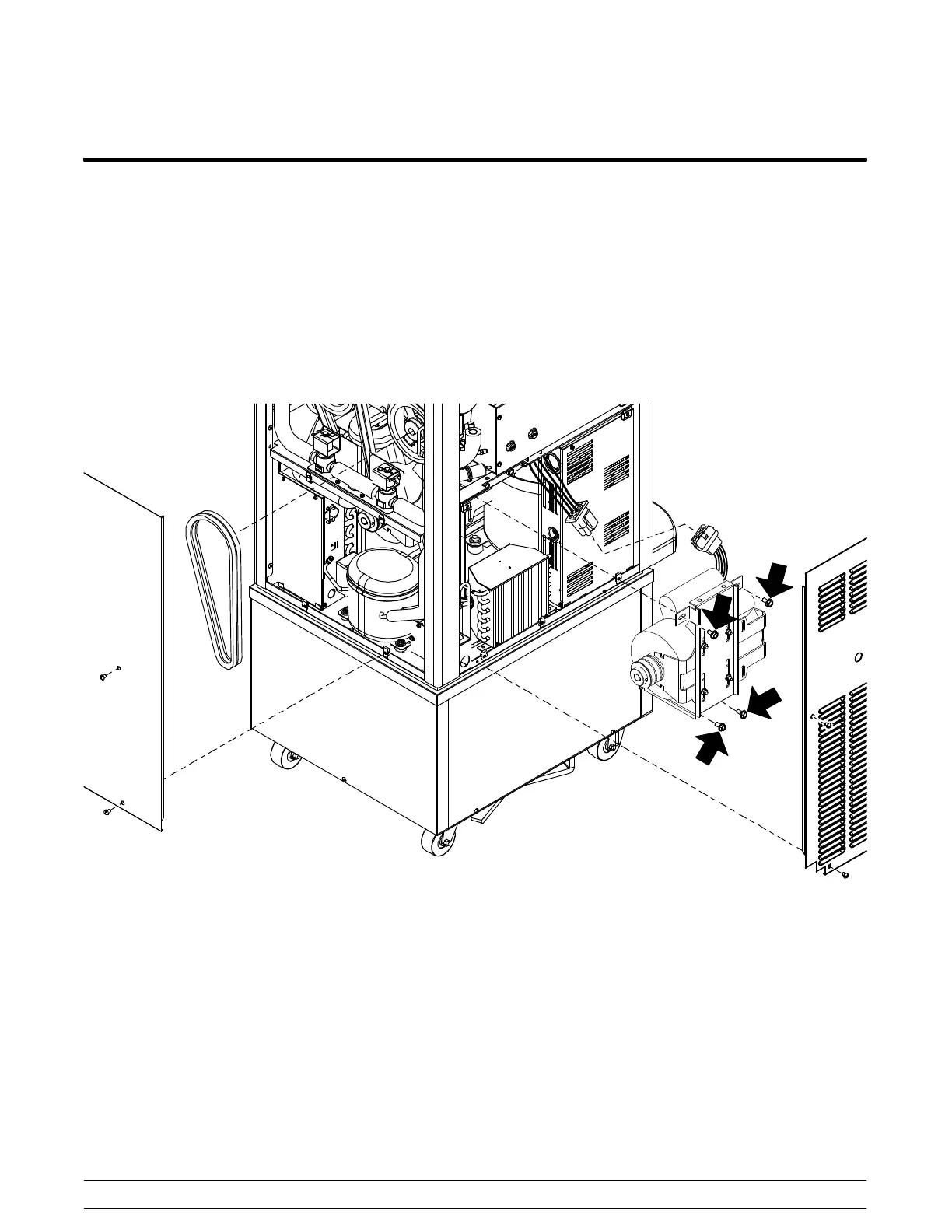

Figure 71
