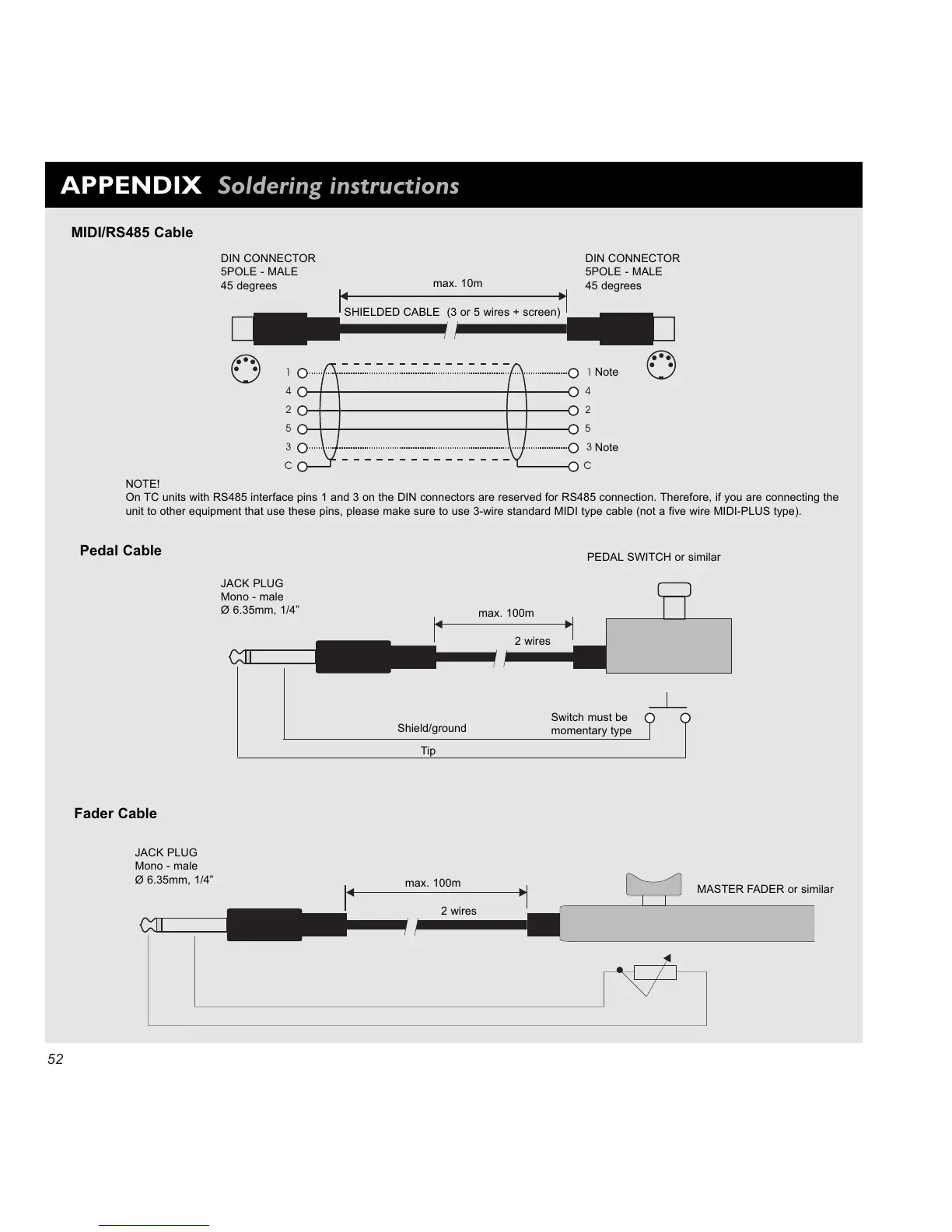

APPENDIX Soldering instructions
MIDI/RS485 Cable
Pedal Cable
Fader Cable
DIN CONNECTOR
5POLE - MALE
45 degrees
DIN CONNECTOR
5POLE - MALE
45 degrees
max. 10m
JACK PLUG
Mono - male
Ø 6.35mm, 1/4
max. 100m
2 wires
Shield/ground
Tip
Switch must be
momentary type
PEDAL SWITCH or similar
JACK PLUG
Mono - male
Ø 6.35mm, 1/4
max. 100m
MASTER FADER or similar
2 wires
SHIELDED CABLE (3 or 5 wires + screen)
NOTE!
On TC units with RS485 interface pins 1 and 3 on the DIN connectors are reserved for RS485 connection. Therefore, if you are connecting the
unit to other equipment that use these pins, please make sure to use 3-wire standard MIDI type cable (not a five wire MIDI-PLUS type).
Note
Note
