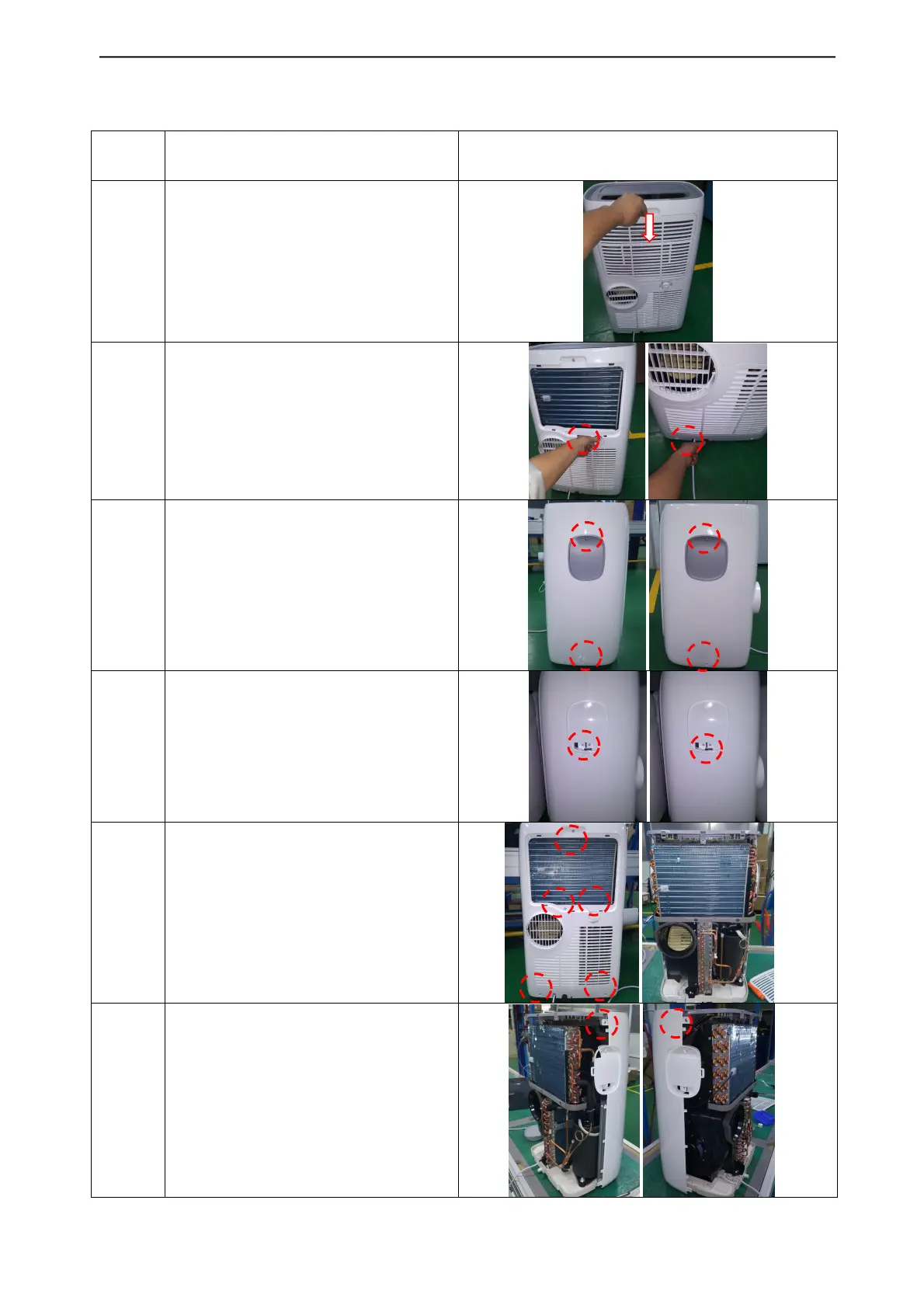

12. Disassembly Procedure
No.
Content
1
Remove grill of evaporator
2
Remove cover of drainage hose
& Rubber stopper
3
Unscrew screws of handles and base
(2 in left side & 2 in right side )
4
Unscrew screws of inside handles（2
in left side & 2 in right side）
5
Unscrew 5 screws of rear panel
Then remove the rear panel
6
Unscrew 2 screws of front panel ( one
in left side and one in right side)
